6 Technical Description

6.1 Receiver Architecture

The JP7-T family OEM GPS receiver from FALCOM is new OEM GPS
receiver product that features the SiRFstarII-Low Power chipset. This
completes 12 channel, WAAS-enabled GPS receiver provides a vastly
superior position accuracy performance in a much smaller package. The
SiRFstarII architecture builds on the high-performance SiRFstarI core,
adding an acquisition accelerator, differential GPS processor, multipath
mitigation hardware and satellite-tracking engine. The JP7-T family delivers
major advancements in GPS performance, accuracy, integration, computing
power and flexibility.
Figure 3:

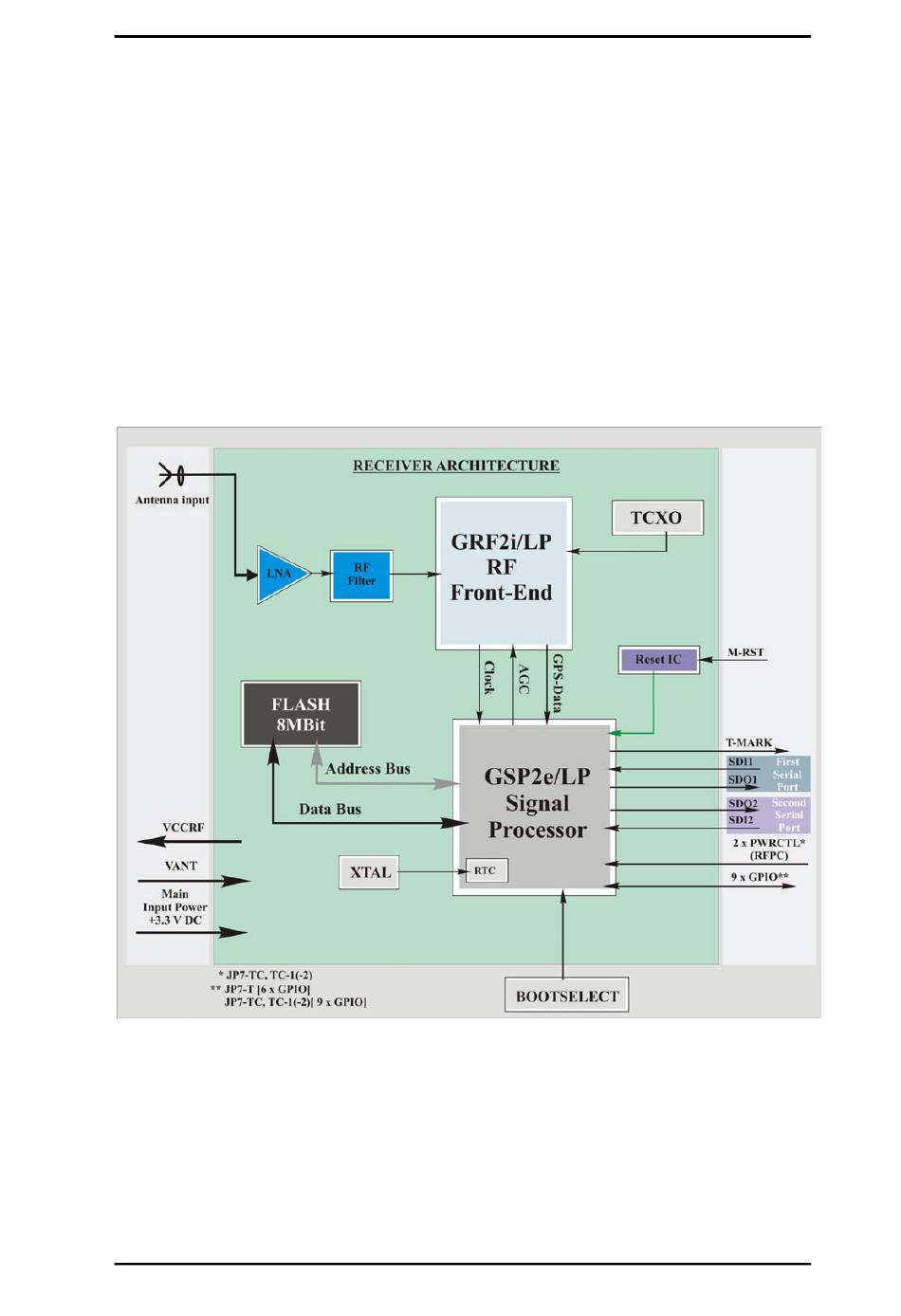

Figure 3 above shows the block diagram of the JP7-T family architecture.
