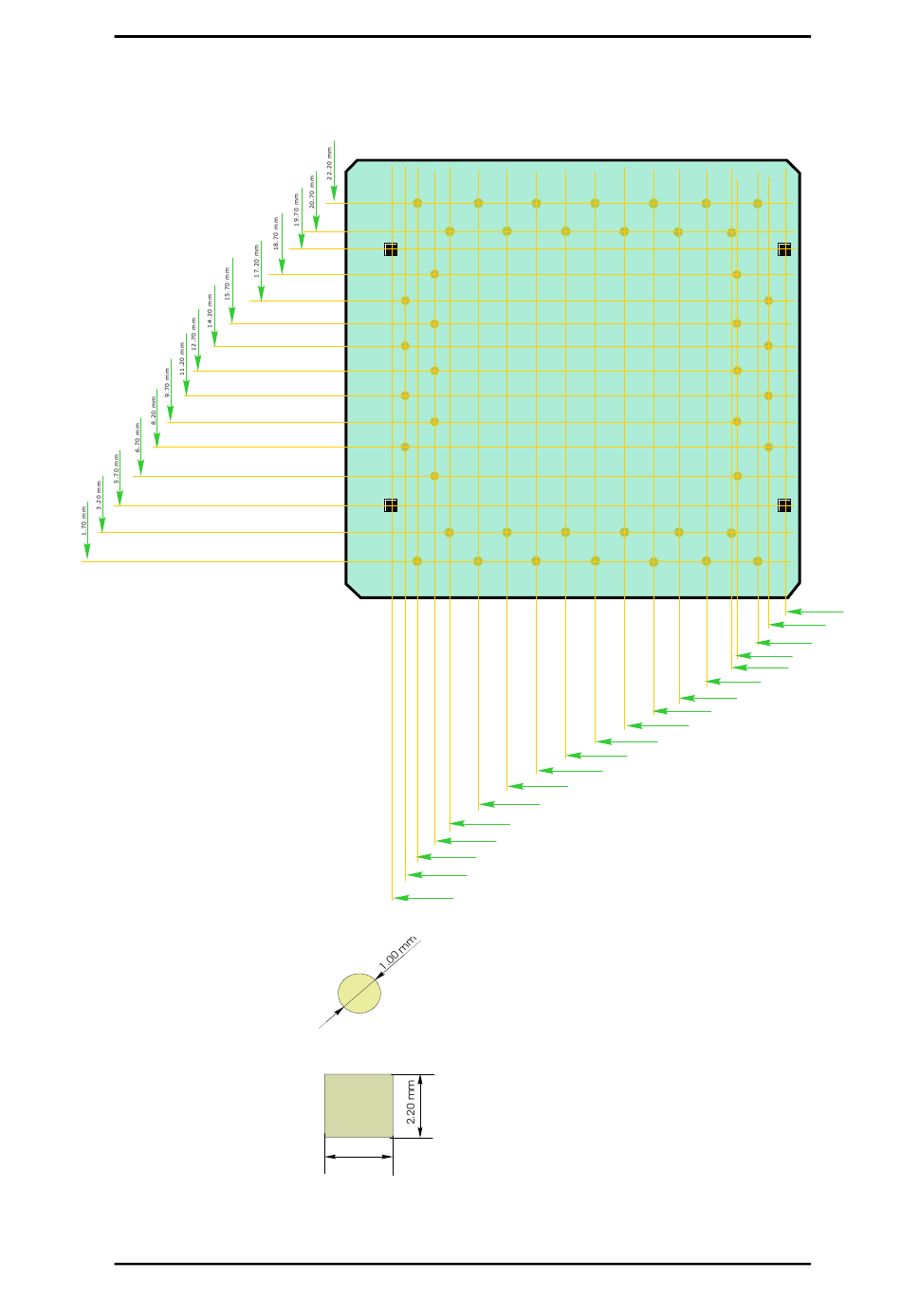

Figure 8 shows the bottom view on JP7-TB and provides an overview of the
mechanical dimensions of the pointed balls.
23.70 mm
22.70 mm
21.70 mm
21.20 mm
20.20 mm
18.70 mm
17.20 mm
15.70 mm
14.20 mm
12.70 mm
11.20 mm
9.70 mm
8.20 mm
6.70 mm
5.20 mm
4.20 mm
3.70 mm
2.70 mm
1.70 mm
Round ball diameter
Square ball dimentions
2.20 mm
:
Figure 8 The mechanical draw of the JP7-TB
