  • Page 1 This document is available at http://www.falcom.de/ Falcom STEPP II Getting Started Preliminary Version 1.00...

  • Page 2: Table Of Contents

    HOW TO UPDATE THE NEW FIRMWARE INTO THE STEPP ..............14 Version history: Version number Author Changes 1.00 Fadil Beqiri Initial version This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 1...
  • Page 3 FALCOM GmbH. FALCOM GmbH. No patent liability is assumed with respect to the use of the information contained herein. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 2...

  • Page 4: Introduction

    2. SiRFDemo software and SiRFflash programming utility; www.falcom.de/Service/Manuals/SiRF 3. stepp_II_hardware_manual.pdf 4. “Configurator 2.0” Configuration software 5. stepp_II_software_2.0RC1_manual.pdf 6. stepp_II_software_1.6.2_manual.pdf This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 3...

  • Page 5: Getting Started

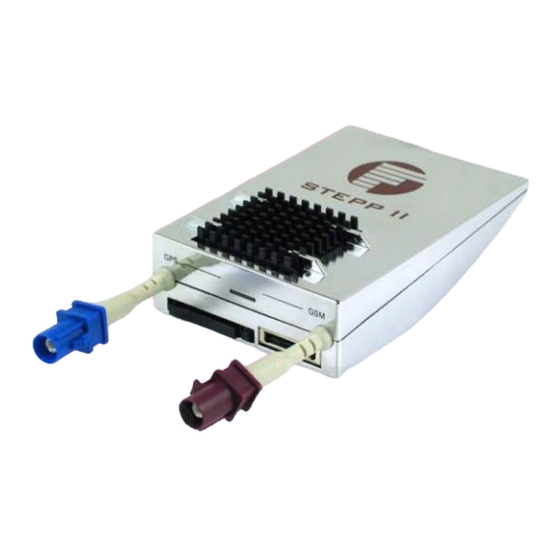

    1 Getting started 1.1 Overview of STEPP II Starter Kit The Stepp II device can be obtained as a single unit or as part of a starter kit. The device has two antenna plugs, one for GSM and one for GPS. The device has a slot where a GSM SIM should be inserted.

  • Page 6: Installing The Stepp Ii Starter Kit Steps

    In general, be sure not to turn on the STEPP II terminal module while it is out of the operating range of voltage and temperature stated described in the hardware manual. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 5...

  • Page 7: Terminal Emulator Setup

    On the first time power-up you can use a terminal software which allows the communication with a modem via RS232 serial port. On Windows 2000, starts the HyperTerminal program. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 6...
  • Page 8 Hint 2: To control the STEPP II operating with firmware “STEPP II Firmware V1.6.2”, use the following pre-defined factory settings 9600 Data bits Parity bit Stop bit None Flow control. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 7...
  • Page 9 Then select the Settings tab sheet, and then click on ASCI setup... button to start the ASCI Setup dialog box. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 8...
  • Page 10 “V2.0RC1” firmware, only. Using the “1.6.2” firmware other command has to be written into the text file. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 9...
  • Page 11 STEPP II use the vertical and horizontal scroll bars of terminal. The default settings will be not displayed. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 10...

  • Page 12: Evaluating The Stepp Ii Locally, Using Sirfdemo Software

    57600 bps. See figure below. Using STEPP II 1.6.2 firmware set the baud rate to 9600 bps. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 11...
  • Page 13 The capital letter means, incoming protocols are valid and the capital letter means, incoming protocols are invalid. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 12...
  • Page 14 For more detailed information about the using of SiRFdemo software, please download the manual, which is also SiRFdemo.pdf available on our web page. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 13...

  • Page 15: How To Update The New Firmware Into The Stepp

    The update procedure takes place if the target system (Falcom STEPP II ) is reset in the internal update mode. Therefore, if the terminal is This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 14...
  • Page 16 SirfFlash program. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 15...
  • Page 17 For further evaluation of the updated firmware in the FLSH memory of target device, please refer to the corresponding documentation, which is included on the delivering CD. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 16...
