VLT HVAC Low Harmonic Drive Operating In-
structions
Quick Setup
Efficient Parameter Set-up for VLT HVAC Drive Applications:
The parameters can easily be set up for the vast majority of the VLT HVAC Drive applications only by using the [Quick Setup] option.
After pressing [Quick Menu], the different choices in the Quick Menu are listed. See also illustration 6.1 below and tables Q3-1 to Q3-4 in the follow-
Function Setups section.
ing
Example of using the Quick Setup option:
Assume you want to set the Ramp Down Time to 100 seconds!
1. Select [Quick Setup]. The first par. 0-01
▼
2.
Press [ ] repeatedly until par. 3-42
3. Press [OK]
◀
4.
Use the [ ] button to highlight the 3rd digit before the comma
5.
Change '0' to '1' by using the [
▶
6.
Use the [ ] button to highlight the digit '2'
7.
Change '2' to '0' with the [
8. Press [OK]
The new ramp-down time is now set to 100 seconds.
It is recommended to do the set-up in the order listed.
NB!
A complete description of the function is found in the parameter sections of this manual.

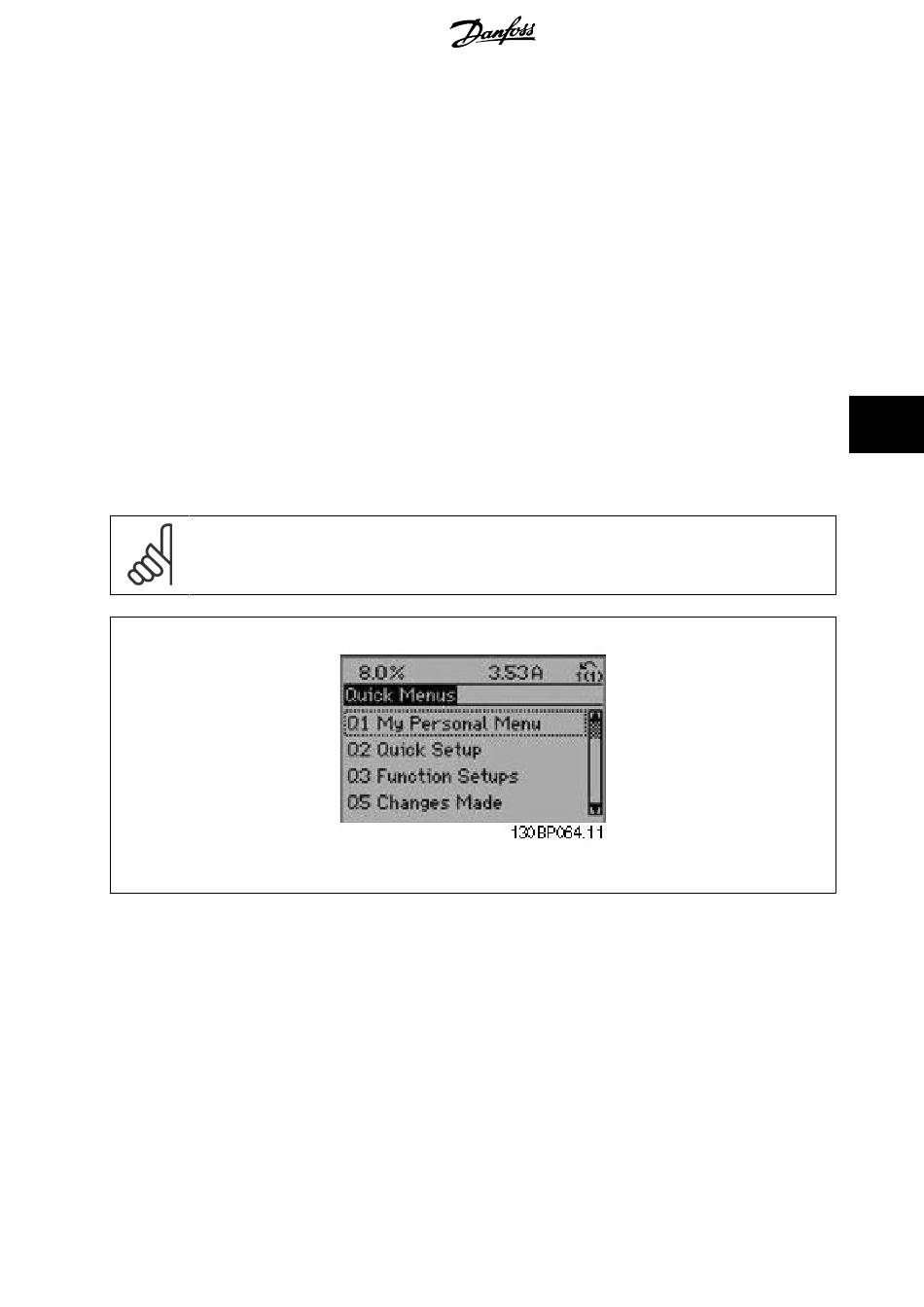

Illustration 6.1: Quick Menu view.
The Quick Setup menu gives access to the 18 most important setup parameters of the frequency converter. After programming the frequency converter
will, in most cases, be ready for operation. The 18 Quick Setup parameters are shown in the table below. A complete description of the function is given
in the parameter description sections of this manual.
Language in Quick Setup appears
Ramp 1 Ramp Down Time appears with the default setting of 20 seconds
▲
] button
▼
] button
®
