ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench and a Phillips
screwdriver .

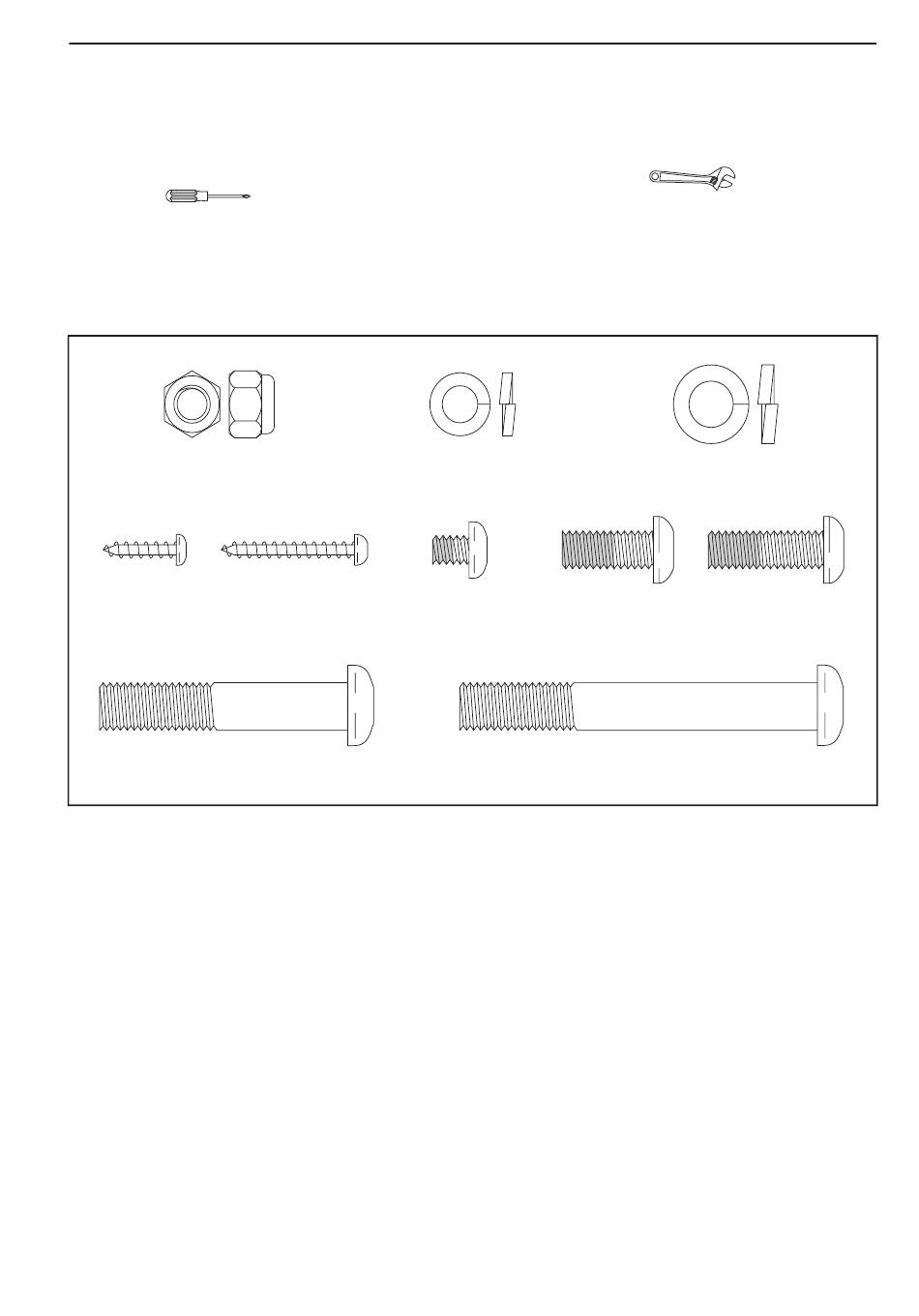

Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing refers to the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 Locknut M8 Split M10 Split
(37)–4 Washer (36)–8 Washer (34)–4
M4 x 16mm M4 x 30mm Round M6 x 8mm Patch M8 x 20mm Patch M8 x 25mm Patch
Screw (40)–8 Head Screw (84)–4 Screw (56)–1 Screw (35)–4 Screw (50)–2
M10 x 54mm Button Screw (33)–2 M10 x 78mm Button Screw (67)–2
5
