Pro-Form 380 ZLX User Manual page 6

1.
To make assembly easier, read the
information on page 5 before you begin.

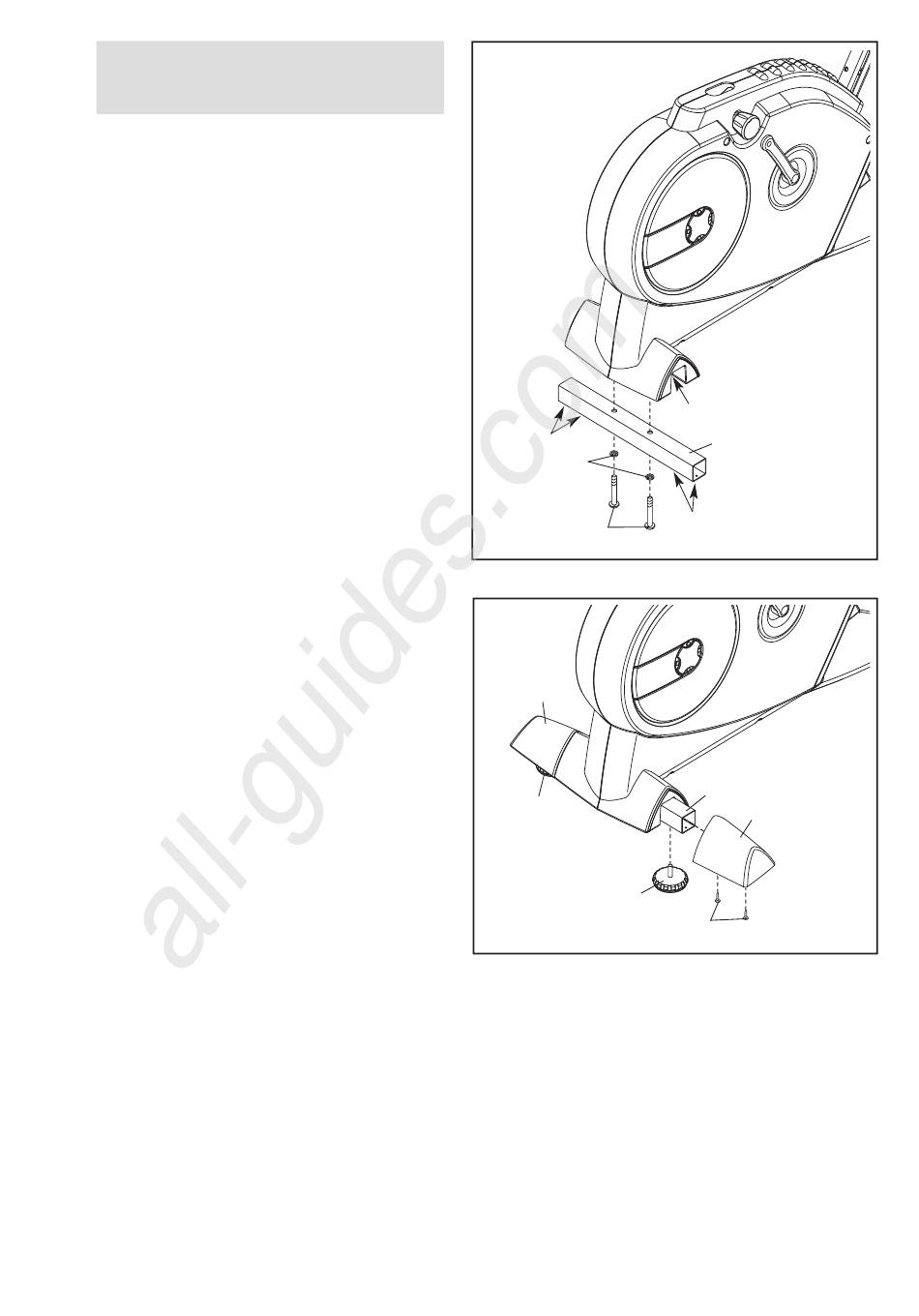

Orient the Rear Stabilizer (14) so that the indi-
cated holes are in the indicated locations.
While another person lifts the rear of the Frame
(1), attach the Rear Stabilizer (14) to the Frame
with two M10 x 54mm Button Screws (33) and
two M10 Split Washers (34).
2. Identify the Right Cap (77), which is marked
with a "Right" sticker.
Slide the Right Cap (77) onto the right side of
the Rear Stabilizer (14). Attach the Right Cap
with two M4 x 16mm Screws (40).
Attach the Left Cap (4) in the same way.
Then, tighten the two Leveling Feet (63) into the
underside of the Rear Stabilizer (14).
