ASSEMBLY

• To hire an authorized service technician to
assemble the exercise bike, call
1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove
the packing materials. Do not dispose of the
packing materials until you complete all
assembly steps.
• To identify small parts, see page 5.

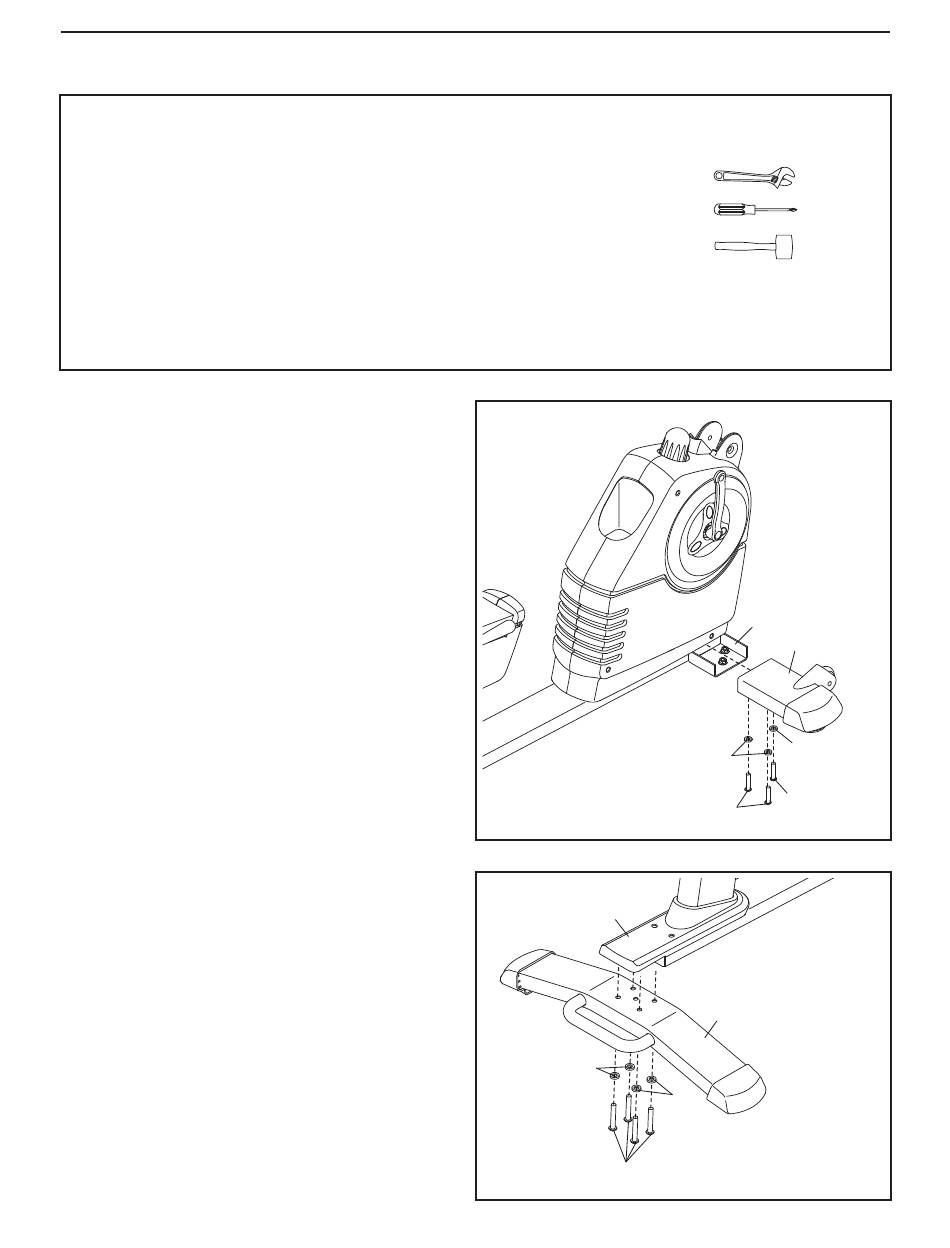

1. Orient the Right Front Stabilizer (40) as shown.
Attach the Right Front Stabilizer (40) to the
right side of the Frame (1) with three M8 x
16mm Patch Screws (54) and three M8 Split
Washers (55).
Attach the Left Front Stabilizer (not shown)
in the same way.
2. While another person lifts the rear of the Frame
(1), attach the Rear Stabilizer (16) to the Frame
with four M8 x 55mm Patch Screws (52) and
four M8 Split Washers (55).
• In addition to the included tool(s), assembly
requires the following tools:
one adjustable wrench
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a socket set
or a set of ratchet wrenches. To avoid damaging
parts, do not use power tools.
1
2
1
55
52
6
1
40
55
55
54
54
16
55
