Pro-Form 380 ZLX User Manual page 10

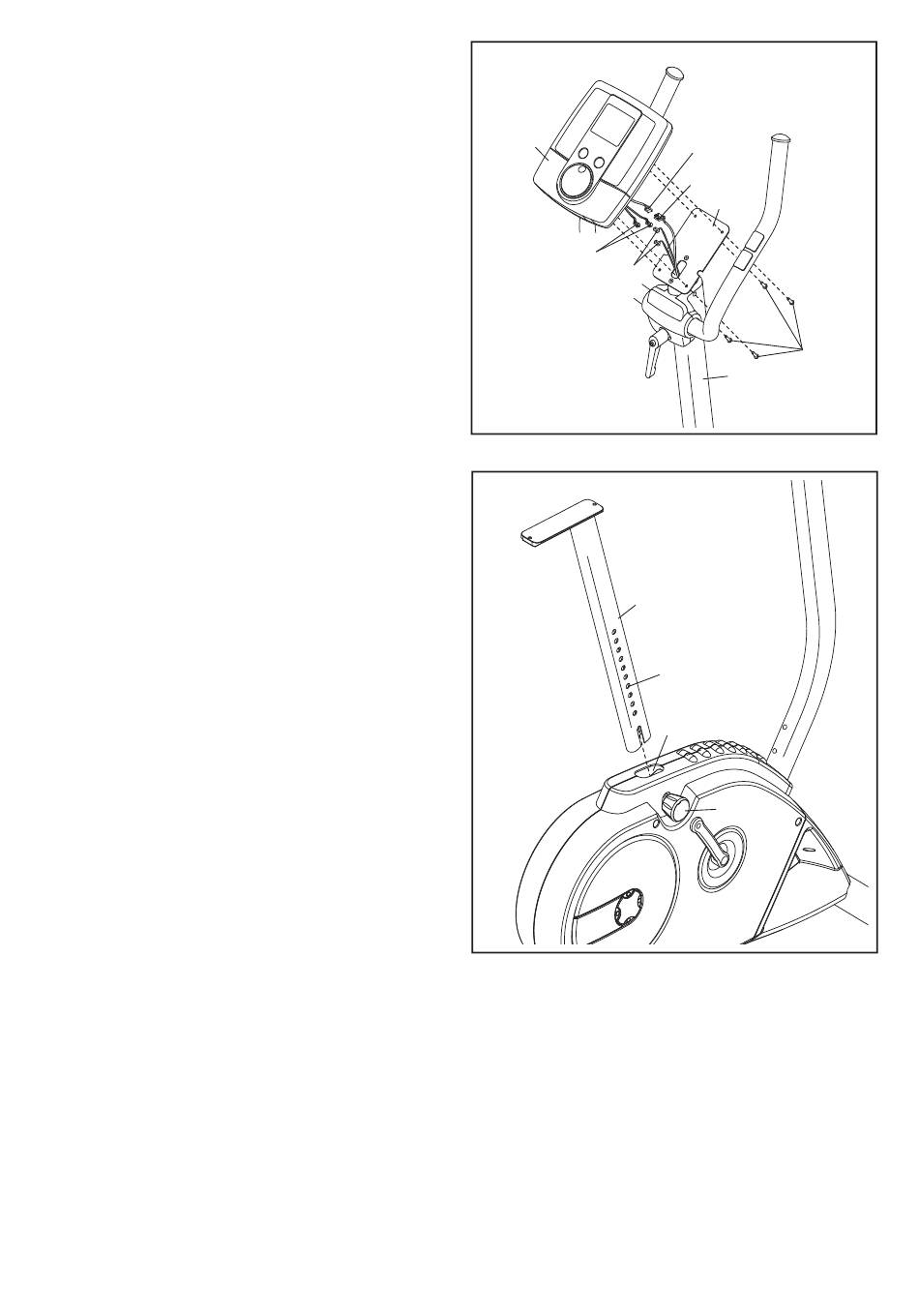

9. While another person holds the Console (6)
near the Console Bracket (55), connect the con-
sole wire to the Upper Wire Harness (32). Then,
connect the console pulse wires to the Pulse
Wires (82).
Insert the excess wires downward into the
Upright (3).
Tip: Avoid pinching the wires. Attach the
Console (6) to the Console Bracket (55) with
four M4 x 16mm Screws (40).
10. Orient the Seat Post (5) as shown.
Loosen the Seat Post Knob (30) a few turns.
Next, pull the Seat Post Knob outward, insert
the Seat Post into the Frame (1), and then
release the Seat Post Knob into one of the
holes in the Seat Post. Move the Seat Post
upward and downward slightly to make sure
that the pin on the Seat Post Knob is
engaged in one of the adjustment holes in
the Seat Post.
Then, tighten the Seat Post Knob (30).
