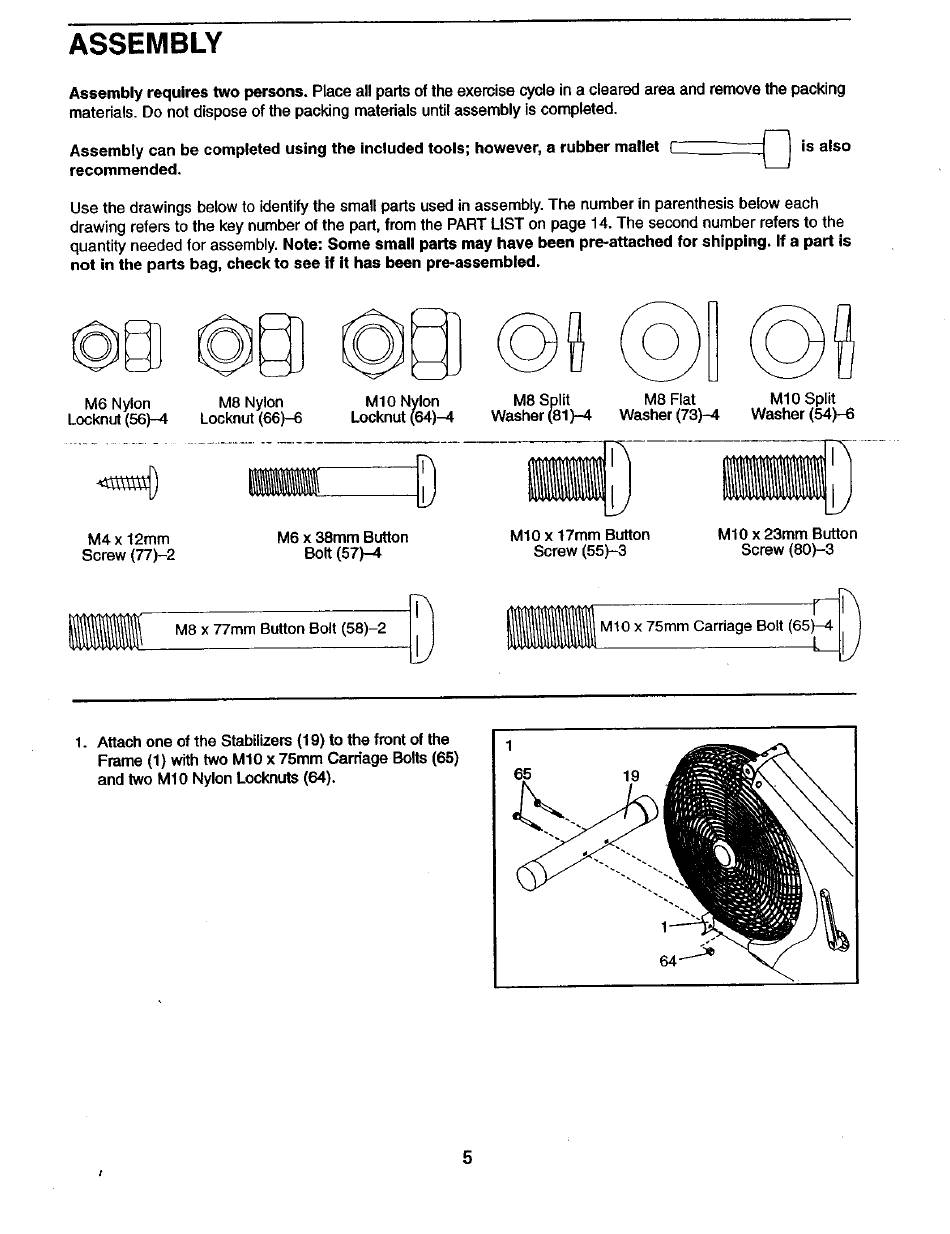

ASSEMBLY
Assembly requires two persons, Place all parts of the exemise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing matedals until assembly is completed.
Assembly
be completed
using the included tools; however, a rubber mallet _ I is also
can
recommended.
Use the drawings below to identify the small parts used in assembly. The number in parenthesis below each
drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers to the
quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a part is
not in the parts bag, check to see if it has been pre-assembled.
M6 Nylon M8 Nylon MIO Nylon M8 Split M8 Flat
Locknut (56)-4 Locknut (66)-6 Locknut (64)-4 Washer (81)-4 Washer (73)-4
M6 x 38mm Sutton
SoS (57)-4
M4 x 12mm
Screw (77)-2
M10 x 17mm Button
Screw (55)--3
M10 Split
Washer (54)-6
M10 x 23mm Button
Screw (80)-3
M8 x 77mm Button Bolt (58)-2 [_
MIO x 75mm Carriage Bolt (65)_
1. Attach one of the Stabilizers (19) to the front of the
Frame (1) with two M10 x 75mm Cardage Bolts (65)
and two M10 Nylon Locknuts (64).
1
65
19
5
J
