Pro-Form 380 ZLX User Manual page 8

5. While a second person holds the Handlebar
(47) near the Upright (3), locate the wire tie in
the Upright.

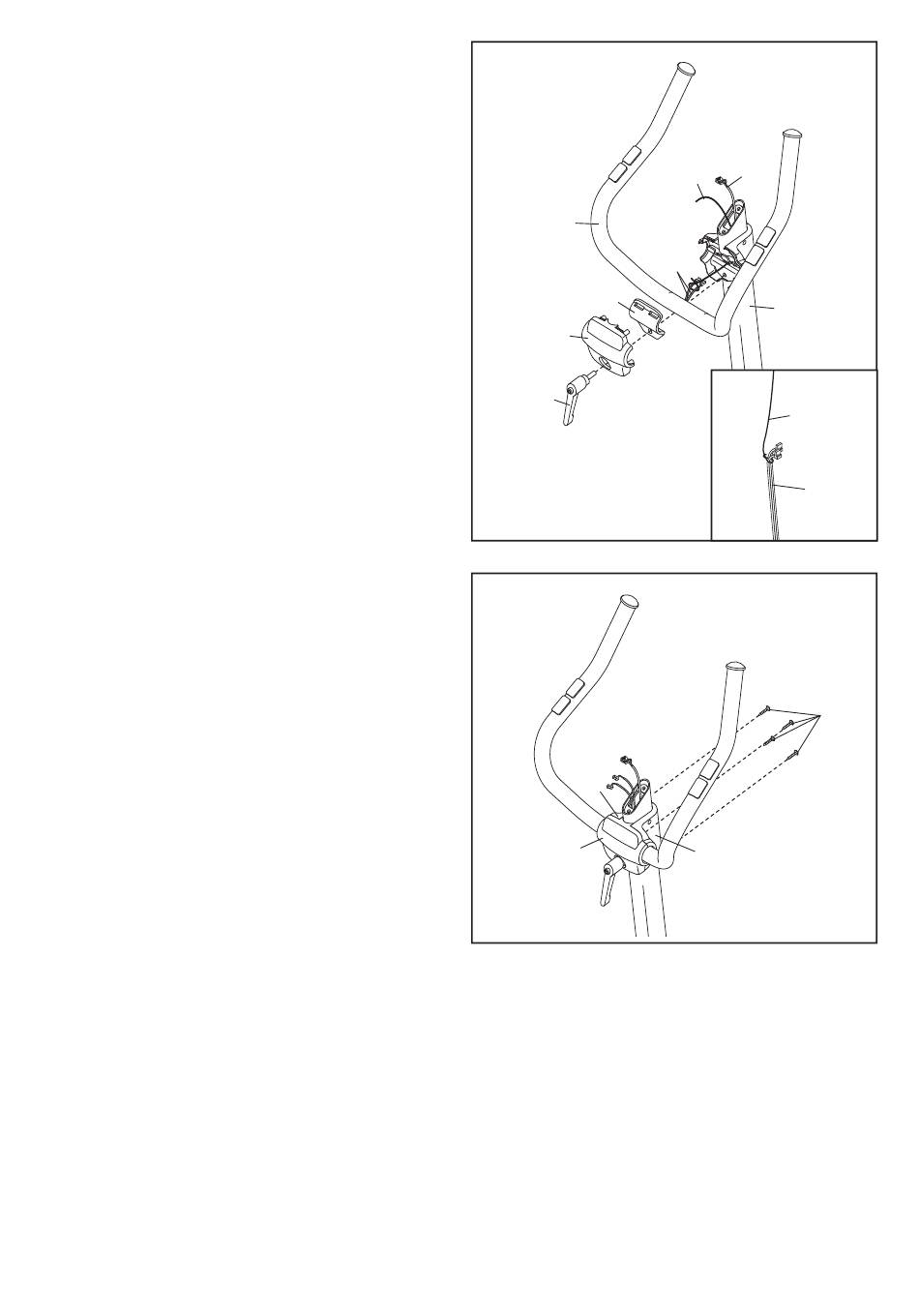

See the inset drawing. Tie the lower end of the
wire tie to the Pulse Wires (82). Next, pull the
other end of the wire tie upward out of the top of
the Upright (3). Then, untie and discard the wire
tie. Tip: Do not allow the ends of the Pulse
Wires to fall into the Upright. Use a piece of
tape or an elastic band to hold the Pulse
Wires in place until step 7.
Tip: Avoid pinching the Pulse Wires (82).
Attach the Handlebar (47) to the Upright (3) with
the Pivot Clamp (75), the Handlebar Cover (43),
and the Pivot Handle (72).
Note: The Pivot Handle (72) functions like a
ratchet. Turn the Pivot Handle clockwise, pull it
away from the Upright (3), turn it counterclock-
wise, push it toward the Upright, and then turn it
clockwise again. Repeat this process until the
Pivot Handle is tight.
6. Attach the Handlebar Cover (43) to the Left and
Right Handlebar Covers (48, 49) with four M4 x
30mm Round Head Screws (84).
