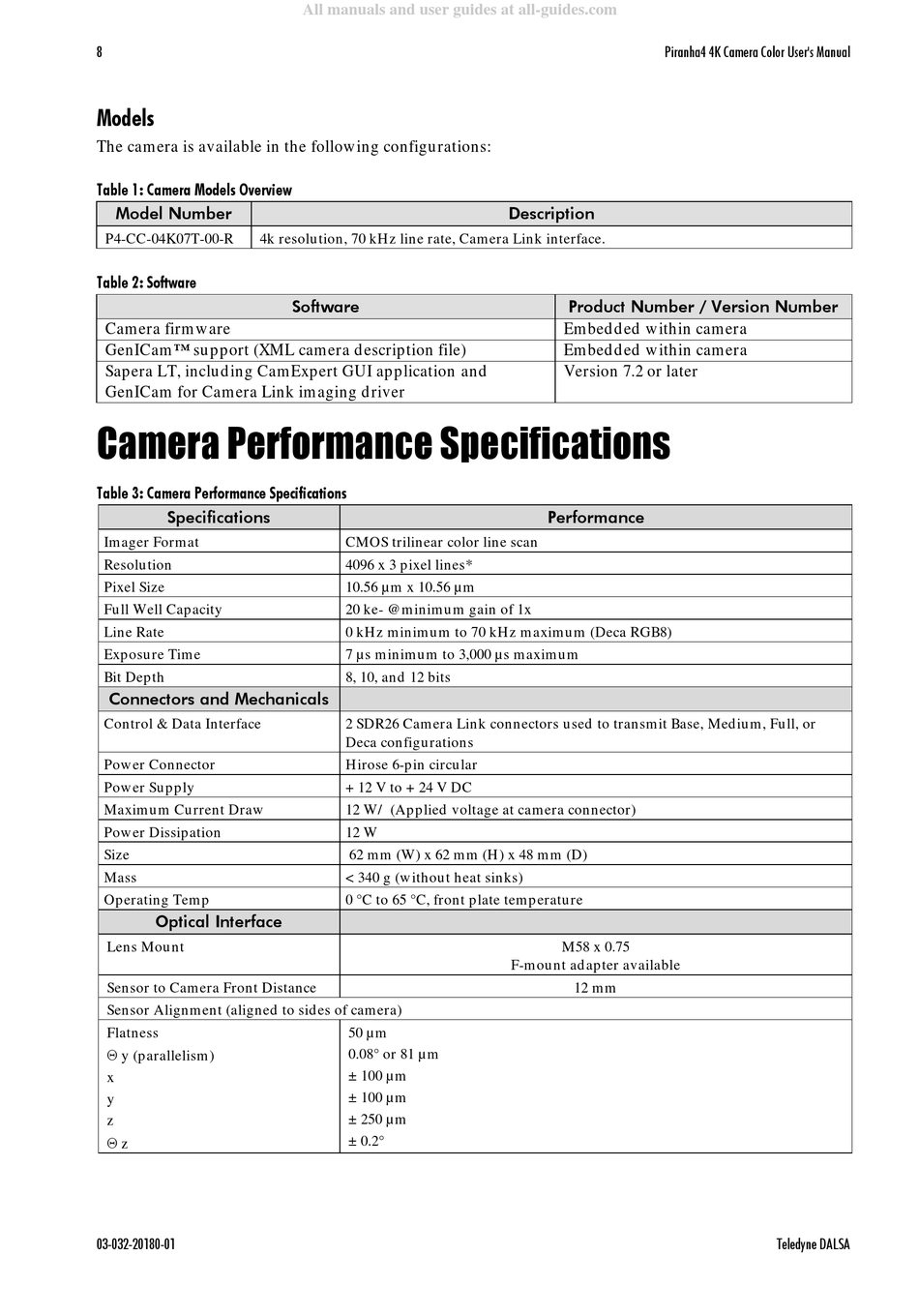

Camera Performance Specifications - Dalsa Piranha 4 Color P4-CC-04K07T-00-R User Manual

8
Models
The camera is available in the follow ing configurations:
Table 1: Camera Models Overview
Model Number
P4-CC-04K07T-00-R 4k resolu tion, 70 kHz line rate, Camera Link interface.
Table 2: Software
Camera firm w are
GenICam ™ su pport (XML camera d escription file)
Sapera LT, includ ing CamExpert GUI application and
GenICam for Camera Link im aging d river

Camera Performance Specifications

Table 3: Camera Performance Specifications
Specifications
Imager Format
Resolution
Pixel Size
Full Well Capacity
Line Rate
Exposure Time
Bit Depth
Connectors and Mechanicals
Control & Data Interface
Pow er Connector
Pow er Supply
Maximum Current Draw
Pow er Dissipation
Size
Mass
Operating Temp
Optical Interface
Lens Mount
Sensor to Camera Front Distance
Sensor Alignment (aligned to sid es of camera)
Flatness
 y (parallelism)
x
y
z
 z
03-032-20180-01
All manuals and user guides at all-guides.com
Software
CMOS trilinear color line scan
4096 x 3 pixel lines*
10.56 µm x 10.56 µm
20 ke- @ minimum gain of 1x
0 kHz minimum to 70 kHz m aximum (Deca RGB8)
7 µs minimum to 3,000 µs maximum
8, 10, and 12 bits
2 SDR26 Camera Link connectors used to transmit Base, Medium, Full, or
Deca configurations
Hirose 6-pin circular
+ 12 V to + 24 V DC
12 W/ (Applied voltage at camera connector)
12 W
62 mm (W) x 62 mm (H) x 48 mm (D)
< 340 g (w ithout heat sinks)
0 °C to 65 °C, front plate temp erature
50 µm
0.08° or 81 µm
± 100 µm
± 100 µm
± 250 µm
± 0.2°
Piranha4 4K Camera Color User's Manual
Description
Product Number / Version Number
Embed d ed w ithin camera
Embed d ed w ithin camera
Version 7.2 or later
Performance
M58 x 0.75
F-mount ad apter available
12 mm
Teledyne DALSA
