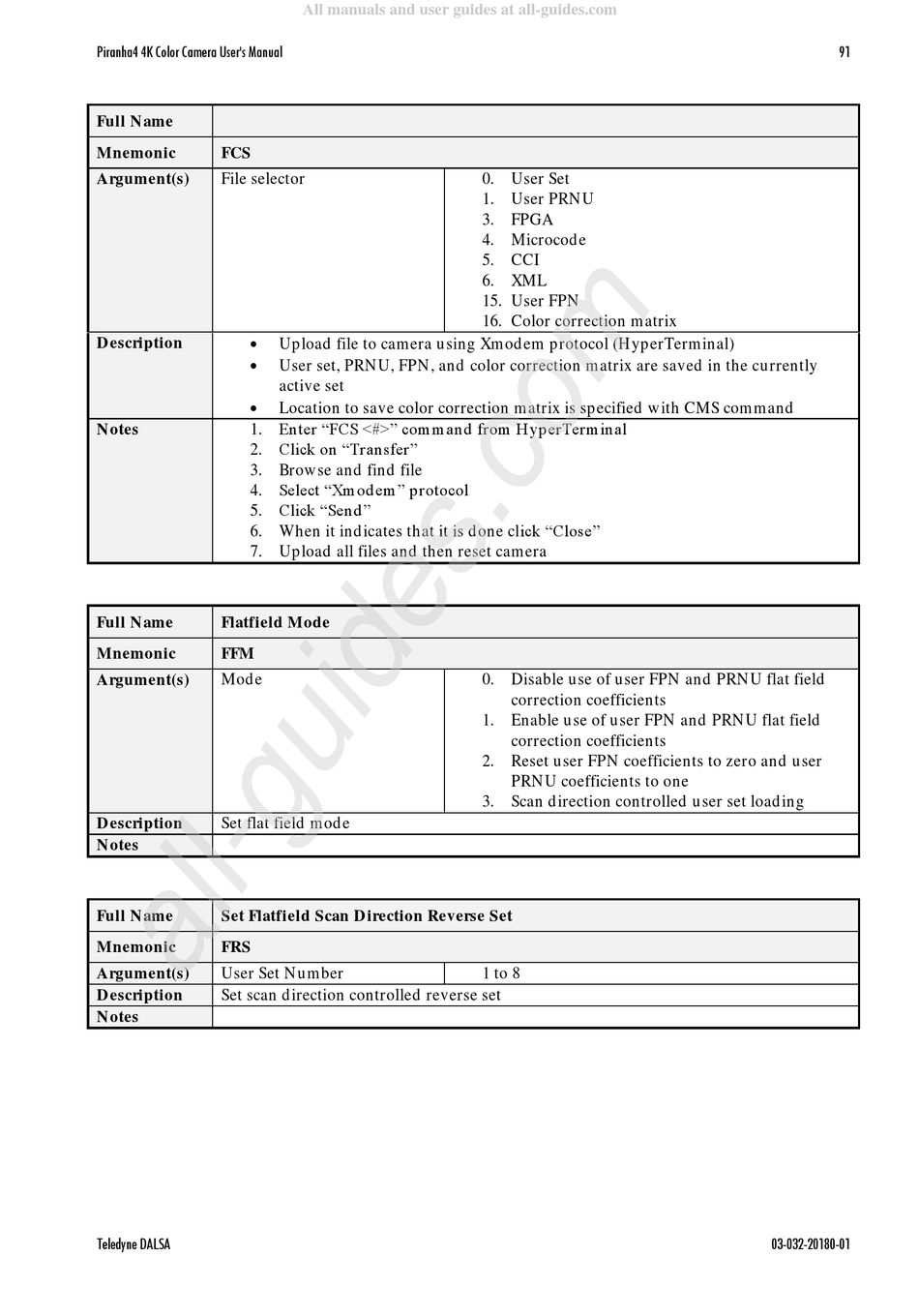

Full N ame
Mnemonic FCS
Argument(s) File selector

D escription


1. Enter ―FCS <#>‖ com mand from H yperTerminal
N otes
2. Click on ―Transfer‖
3. Brow se and find file
4. Select ―Xmod em‖ protocol
5. Click ―Send ‖
6. When it ind icates that it is d one click ―Close‖
7. Upload all files and then reset camera
Full N ame Flatfield Mode
Mnemonic FFM
Argument(s) Mod e
D escription Set flat field mod e
N otes
Full N ame Set Flatfield Scan D irection Reverse Set
Mnemonic FRS
Argument(s) User Set N umber
Set scan d irection controlled reverse set
D escription
N otes
Teledyne DALSA
All manuals and user guides at all-guides.com
Upload file to camera u sing Xm od em protocol (H yperTerminal)
User set, PRN U, FPN , and color correction m atrix are saved in the currently
active set
Location to save color correction m atrix is specified w ith CMS com mand
0. User Set
1. User PRN U
3. FPGA
4. Microcod e
5. CCI
6. XML
15. User FPN
16. Color correction m atrix
0. Disable use of user FPN and PRN U flat field
correction coefficients
1. Enable u se of user FPN and PRN U flat field
correction coefficients
2. Reset user FPN coefficients to zero and user
PRN U coefficients to one
3. Scan d irection controlled u ser set load ing
1 to 8
