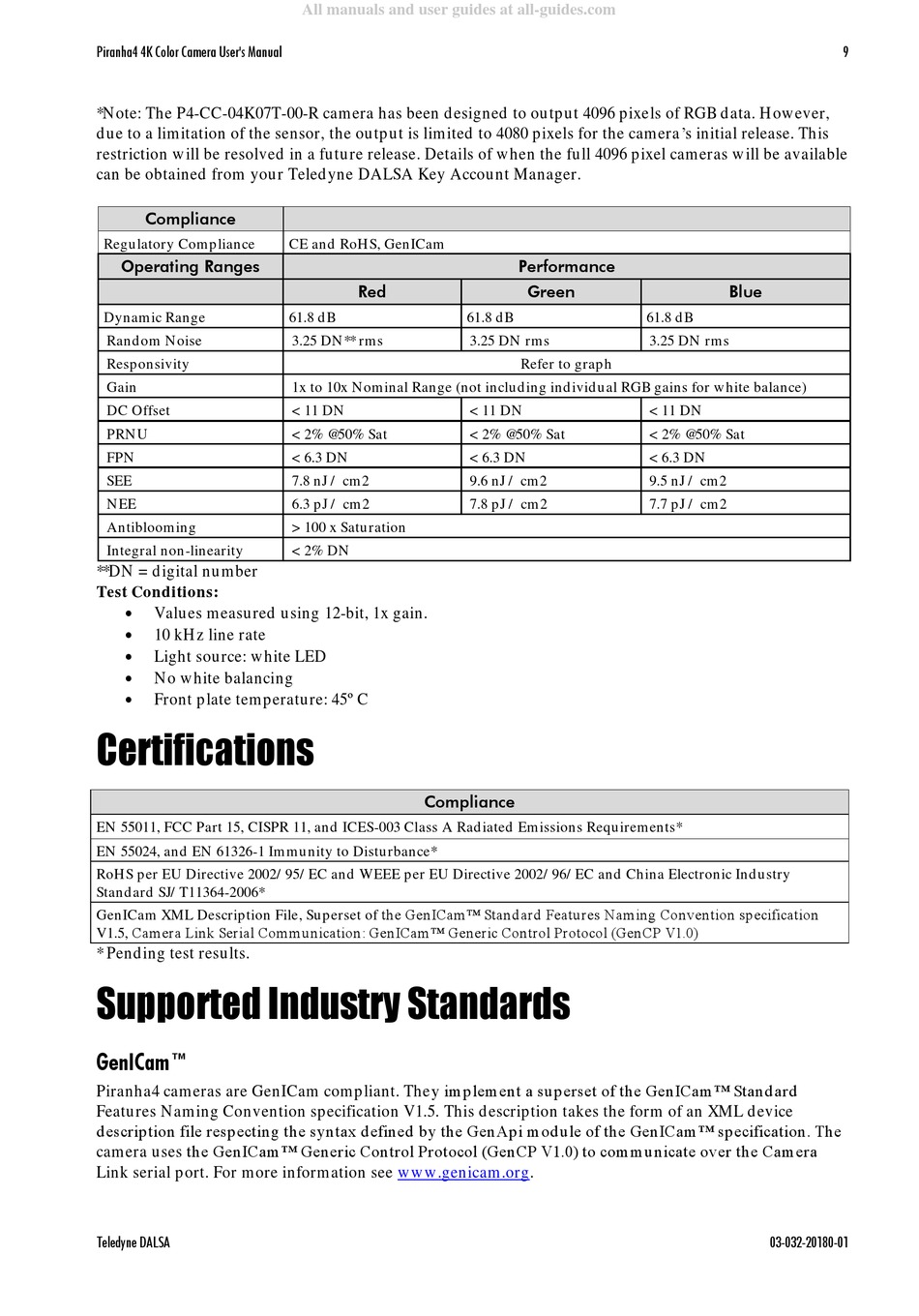

Piranha4 4K Color Camera User's Manual
*N ote: The P4-CC-04K07T-00-R camera has been d esigned to ou tput 4096 pixels of RGB d ata. H ow ever,
d ue to a limitation of the sensor, the outp ut is limited to 4080 pixels for the camera 's initial release. This
restriction w ill be resolved in a future release. Details of w hen the full 4096 pixel cameras w ill be available
can be obtained from your Teled yne DALSA Key Account Manager.
Compliance
Regulatory Compliance
Operating Ranges
Dynamic Range
Rand om Noise
Responsivity
Gain
DC Offset
PRNU
FPN
SEE
NEE
Antiblooming
Integral non-linearity
**DN = d igital nu mber
Test Conditions:

Values measured using 12-bit, 1x gain.

10 kH z line rate

Light source: w hite LED

N o w hite balancing

Front p late temperature: 45º C

Certifications

EN 55011, FCC Part 15, CISPR 11, and ICES-003 Class A Rad iated Emissions Requirements*
EN 55024, and EN 61326-1 Im munity to Disturbance*
RoHS per EU Directive 2002/ 95/ EC and WEEE per EU Directive 2002/ 96/ EC and China Electronic Ind ustry
Stand ard SJ/ T11364-2006*
GenICam XML Description File, Superset of the GenICam™ Stand ard Features Naming Convention specification
V1.5, Camera Link Serial Communication: GenICam ™ Generic Control Protocol (GenCP V1.0)
* Pend ing test results.

Supported Industry Standards

GenICam™
Piranha4 cameras are GenICam comp liant. They imp lement a superset of the GenICam ™ Stand ard
Features N aming Convention specification V1.5. This d escription takes the form of an XML d evice
d escription file respecting the syntax d efined by the GenApi m od ule of the GenICam ™ specification. The
camera uses the GenICam ™ Generic Control Protocol (GenCP V1.0) to com mu nicate over the Camera
Link serial p ort. For more inform ation see
Teledyne DALSA
All manuals and user guides at all-guides.com
CE and RoHS, GenICam
Red
61.8 d B
3.25 DN ** rms
1x to 10x Nominal Range (not includ ing ind ivid ual RGB gains for w hite balance)
< 11 DN
< 2% @50% Sat
< 6.3 DN
7.8 nJ / cm2
6.3 pJ / cm 2
> 100 x Saturation
< 2% DN
Compliance
w w w .genicam.org.
Performance
Green
61.8 d B
3.25 DN rms
Refer to graph
< 11 DN
< 2% @50% Sat
< 6.3 DN
9.6 nJ / cm2
7.8 pJ / cm 2
Blue
61.8 d B
3.25 DN rms
< 11 DN
< 2% @50% Sat
< 6.3 DN
9.5 nJ / cm2
7.7 pJ / cm 2
03-032-20180-01
9
