Startup with EtherNet/IP™

Controlling the stations in test run

Manual – MOVI-C

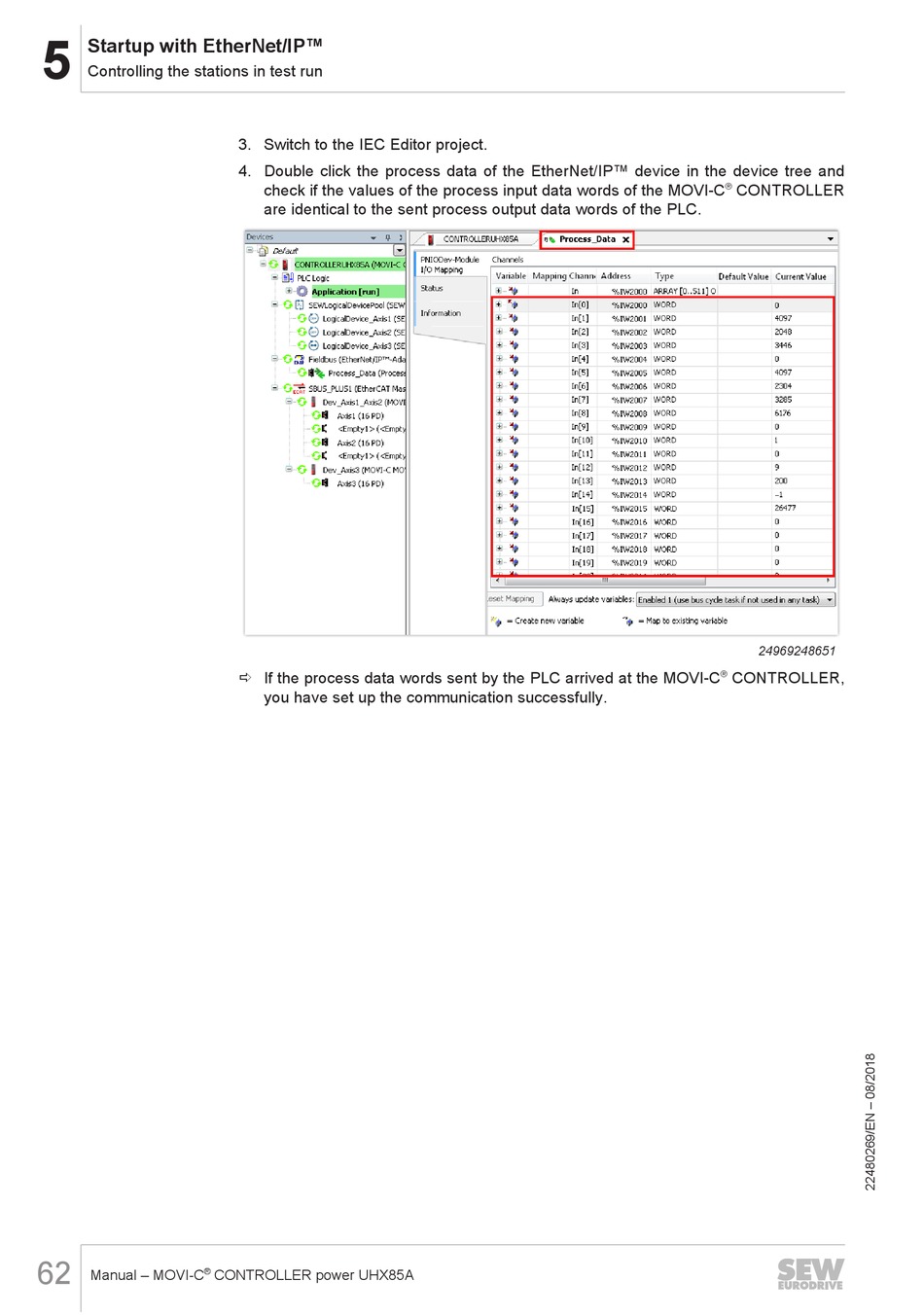

3. Switch to the IEC Editor project.

4. Double click the process data of the EtherNet/IP™ device in the device tree and

check if the values of the process input data words of the MOVI‑C

are identical to the sent process output data words of the PLC.

ð If the process data words sent by the PLC arrived at the MOVI‑C

you have set up the communication successfully.

CONTROLLER power UHX85A

CONTROLLER

24969248651

CONTROLLER,
