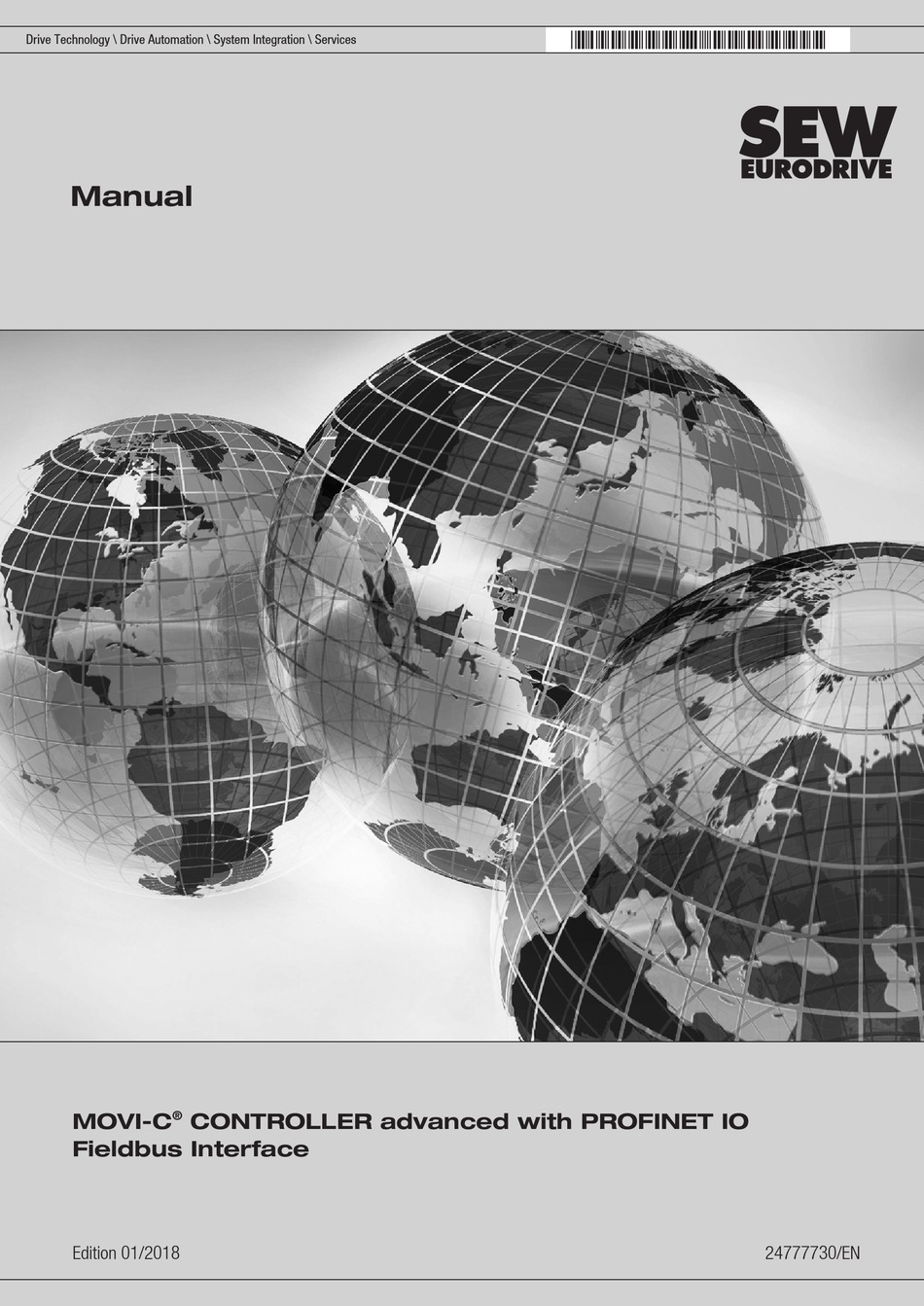

*24777730_0118*
Drive Technology \ Drive Automation \ System Integration \ Services
Manual
®
MOVI-C
CONTROLLER advanced with PROFINET IO
Fieldbus Interface
Edition 01/2018
24777730/EN
