Base configuration for 2-channel stereo

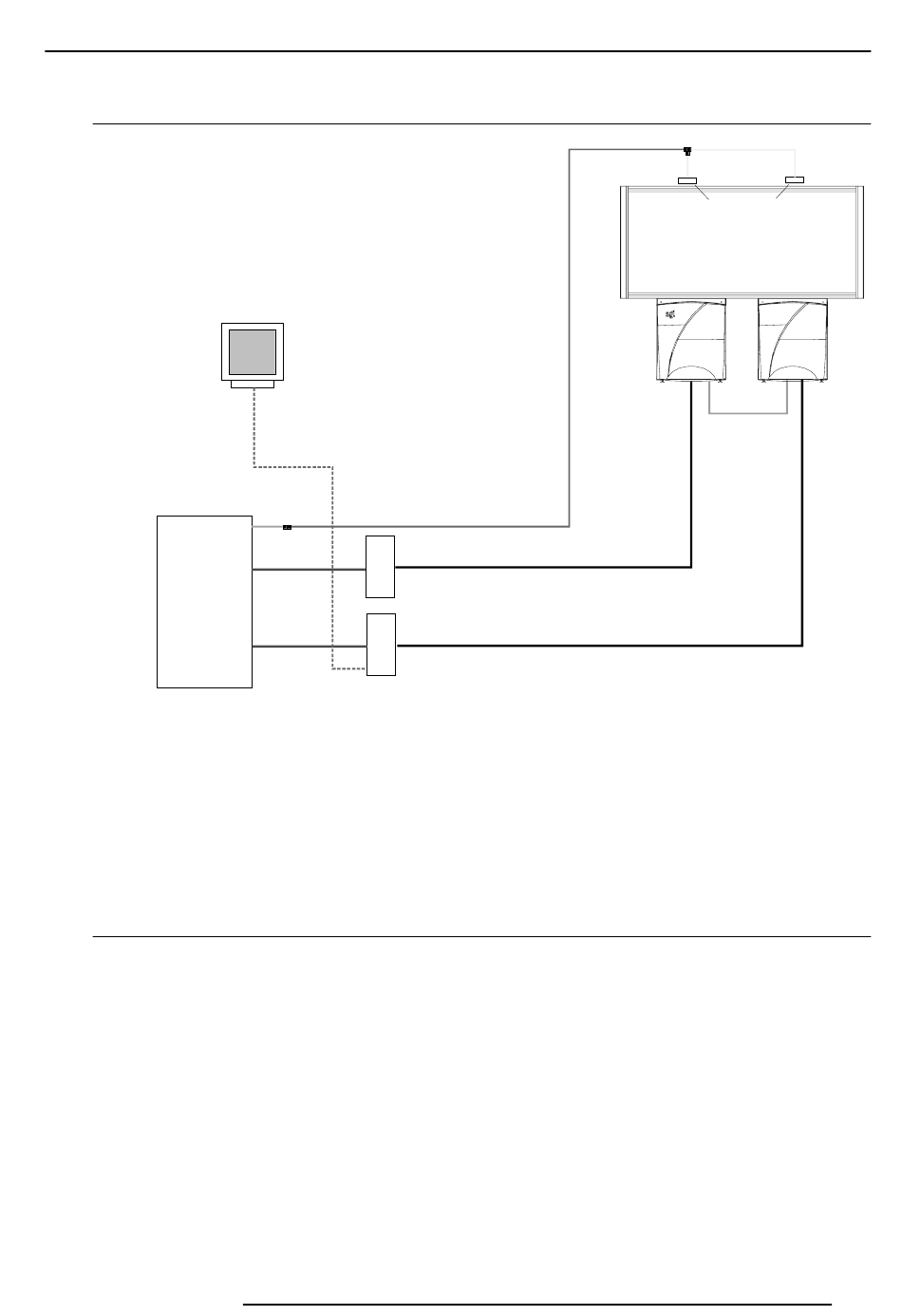

Principle drawing
T‡r…r‚ˆ‡
8uhryÃ
21<;
8uhryÃ
All source connections to the projector are done to port 4/5 (see RGB analog connection in chapter Connections or to 'Connection
Magic interface - Projector' on page 8.2).
The connections between the ONYX and the Magic interfaces and the Magic interfaces and the projectors are explained in 'Detailed
Connection Magic Interface' on page 8.2.
Cable type 2 and 4 must be connected in series using BNC-BNC coupling pieces as the distance between the Magic and the monitor
is too large.
Cable type 1, RS232 connection between the projectors (RS232 out to RS232 in next projector) has to be installed even when there
is no RS232 connection with other equipement.
The stereo connection starts at the Onyx with cable type 8 in series with cable type 5. At the end of cable type 5, a T-BNC piece
split the signal into two signals which are both connected via a cable type 6 to the emitters.
5 stereo glasses are delivered with the stereo emitters.
Necessary Equipment and Cables
The following cables are included to set up this configuration :
Cable type 1
Cable type 2
Cable type 3
Cable type 4
Cable type 5 (*)
Cable type 6
Cable type 8
(*) extra cable 1 BNC to 1 BNC 45m 150ft is included with the stereo option in case this stereo option is used in combination with
the long cable option (Z3483105).
