Password Mode; Set Up - Silicon Graphics Reality Center Installation Manual

Projector Set Up

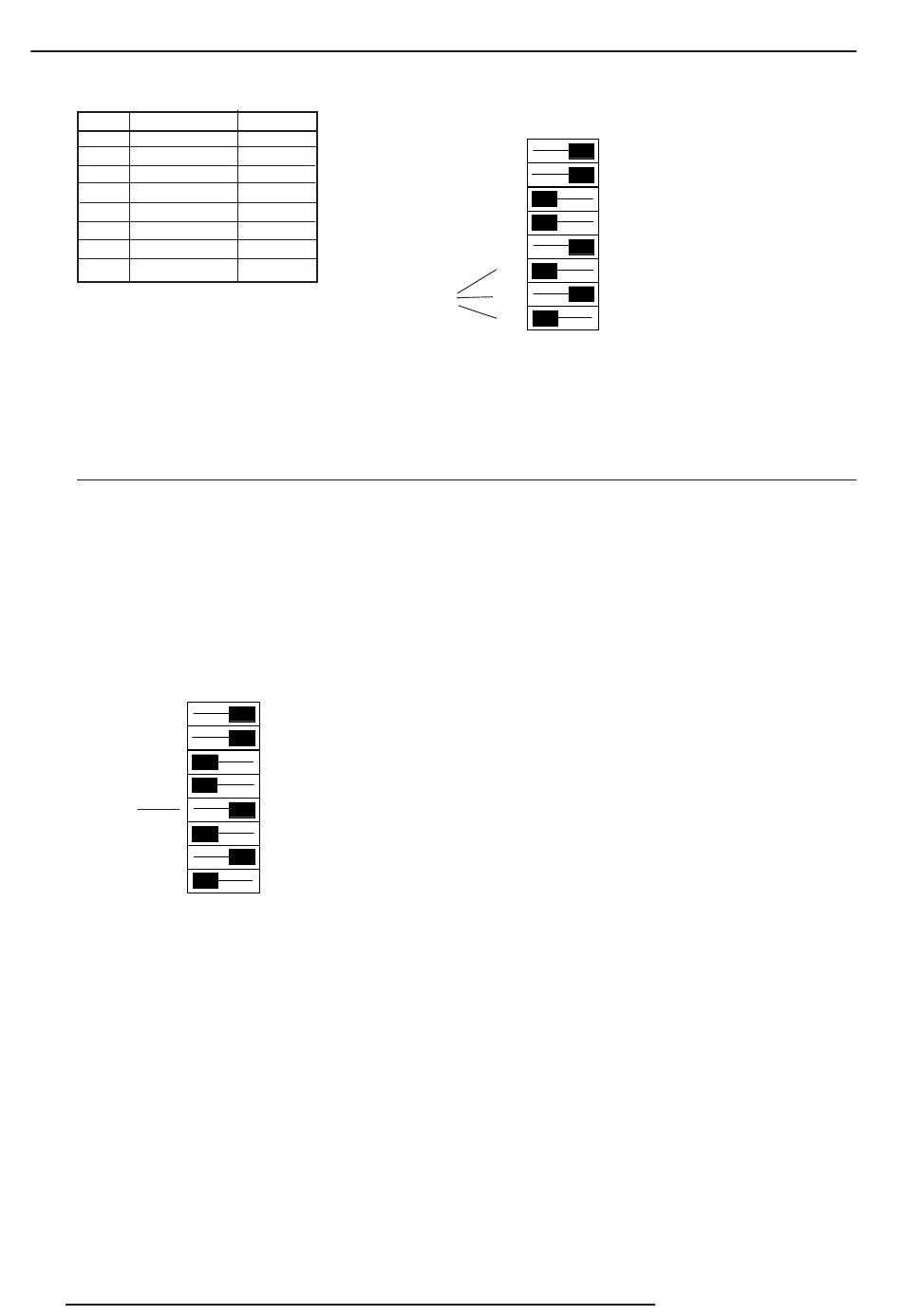

Position of DIP switches and baud rate codes :
Binary Baud rate code
000 0
001 1
010 2
011 3
100 4
101 5
110 6
111 7
Factory preset baud rate : 9600

Password Mode

Set Up

With DIP Switch No.5 of the second set of 8 DIP switches on the controller board, the projector adjustments can be protected with
a password. When the password feature is enabled, the user has to enter a password before he can enter some items in the
adjustment mode.
Position of DIP Switch No.5 :
ON :
OFF:
Factory preset password mode : OFF.

Password
mode
2))
6-4
Speed
110
150
300
600
1200
2400
4800
9600
Baud rate
DIP switches
password mode enabled.
password mode disabled.









21







4

2

1
2))
21
