Mechanical Set Up

Screen Cabinet

Installing the Screen Cabinet

To install the screen cabinet onto the projector cabinet, handle as follow :

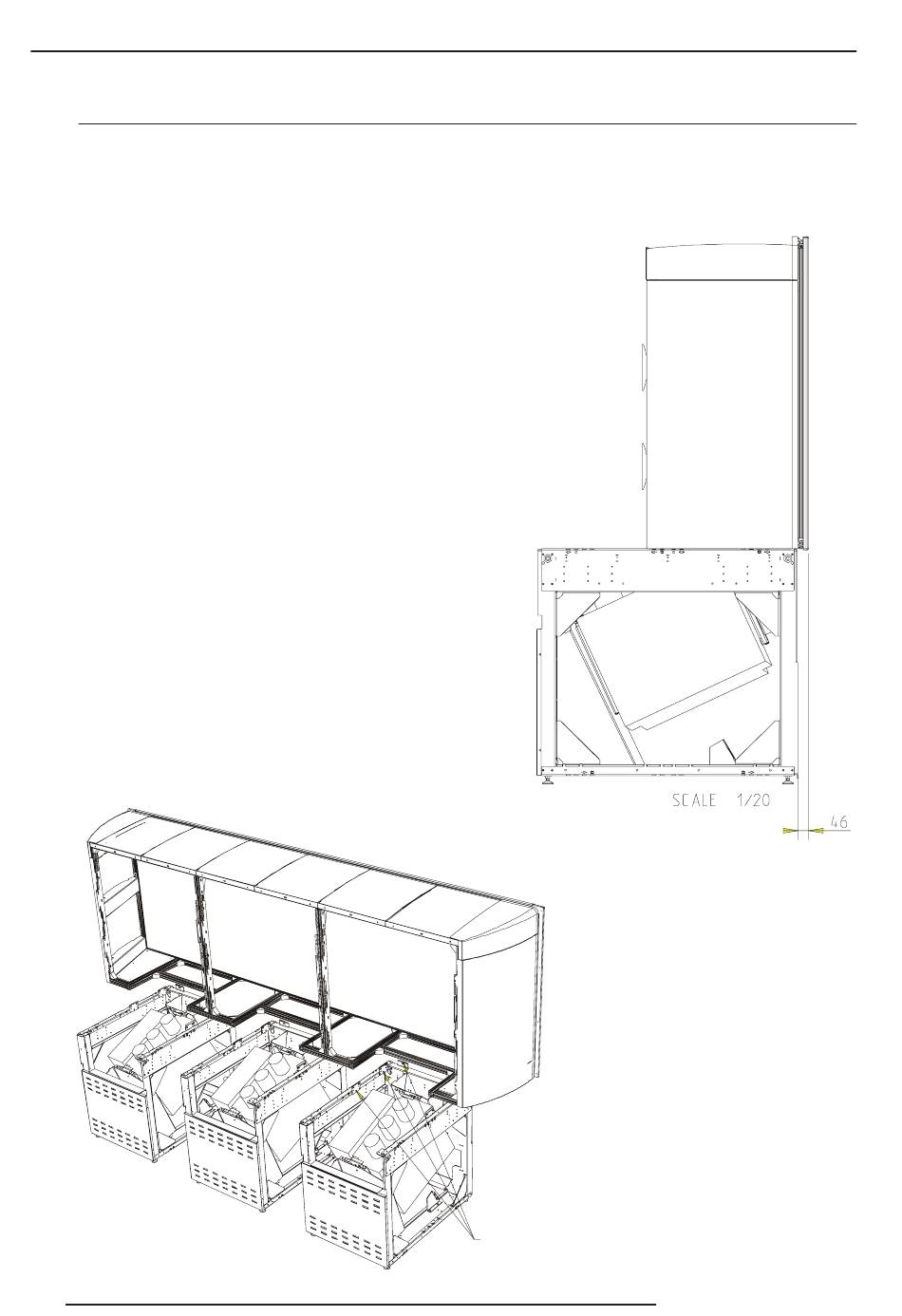

1. Put the front bar of the cabinet against the inside front brackets on the projector cabinet (see image 1 for correct position).
2. Insure that the vertical bars are against the outside of the brackets on the sides of the projector cabinet (image 2).
3. Insert in each hole of the brackets a hammer bolt and push it in the groove of the screen cabinet frame.
4. Turn the hammer bolts a quarter turn and tighten the nuts. The screen cabinet is fixed onto the projector cabinet.
image 2
5-2
image 1
