Address Check

To check the address of a projector, handle as follow :
1. Press the address button on the RCU with pencil.
The projector will display its own address (menu 1).
2. For continue using your RCU, enter the address with the digit keys within 5 seconds after the address key is pressed.
If the displayed address is '003', enter only '3' with the digit keys on the RCU.

Power Up mode

Set Up

The projector can start up in two different modes, operational mode and stand by mode.

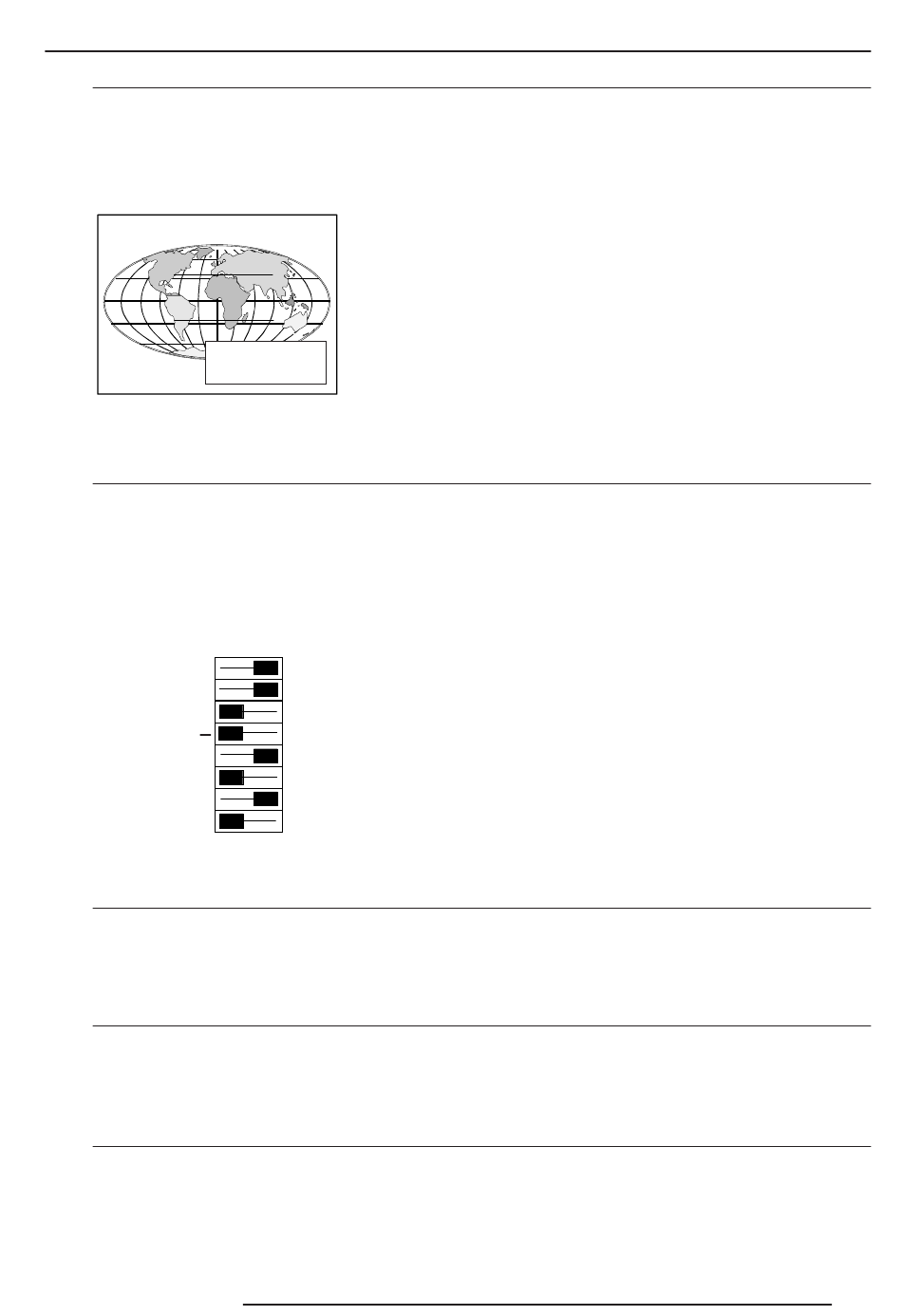

The start-up mode is determined by the position of DIP Switch No. 4 on the second set of 8 DIP switches on the controller board (the
first set of 8 switches are used for projector address setting).
Position of the DIP Switch No. 4 (powerup mode) :
ON :
OFF:
Power-up mode
21

Start up in Operational Mode

When the power switch on the rear of the projector is pressed, the projector displays the last selected source if available, otherwise
it remains on that source number until the source becomes available.
The on screen indication is only available when the "Text" function is set to "ON".

Start up in Stand-By Mode

When the power switch on the rear of the projector is pressed, the projector starts up in the standby mode. The standby key on
the RCU is used to turn the projector ON and OFF.

Baud rate Set Up

Set Up
The communication speed between the projector and the computer has 8 possible settings.
With DIP Switch No. 6, No.7 and No.8 of the 8 DIP switches on the controller board, labelled as ‘Baud rate code (sum)’, it is possible
to select the baud rate (communication speed). Each DIP switch has its own decimal value. The sum of the values associated to
those DIP switches gives the baud rate code. Each baud rate code corresponds an communication speed.
R5976280 RC3300W 19072001
PROJECTOR ADDRESS
001
operational mode.
standby mode (Factory preset).








2))
OFF ON
Projector Set Up
6-3
