Switching On The Projector; Hardware Switch On; Start Up In Operational Mode From Stand By - Silicon Graphics Reality Center Installation Manual

Connections

Switching on the Projector

Hardware Switch on.

The projector is switched ON using the power (mains) switch ON/OFF.
Pressed : ON state
Not pressed : OFF state
The projector can start now in :
- Operational mode (picture displayed)
- Stand by mode
See 'Power Up switch' in chapter Projector Set Up.
Important for the user.

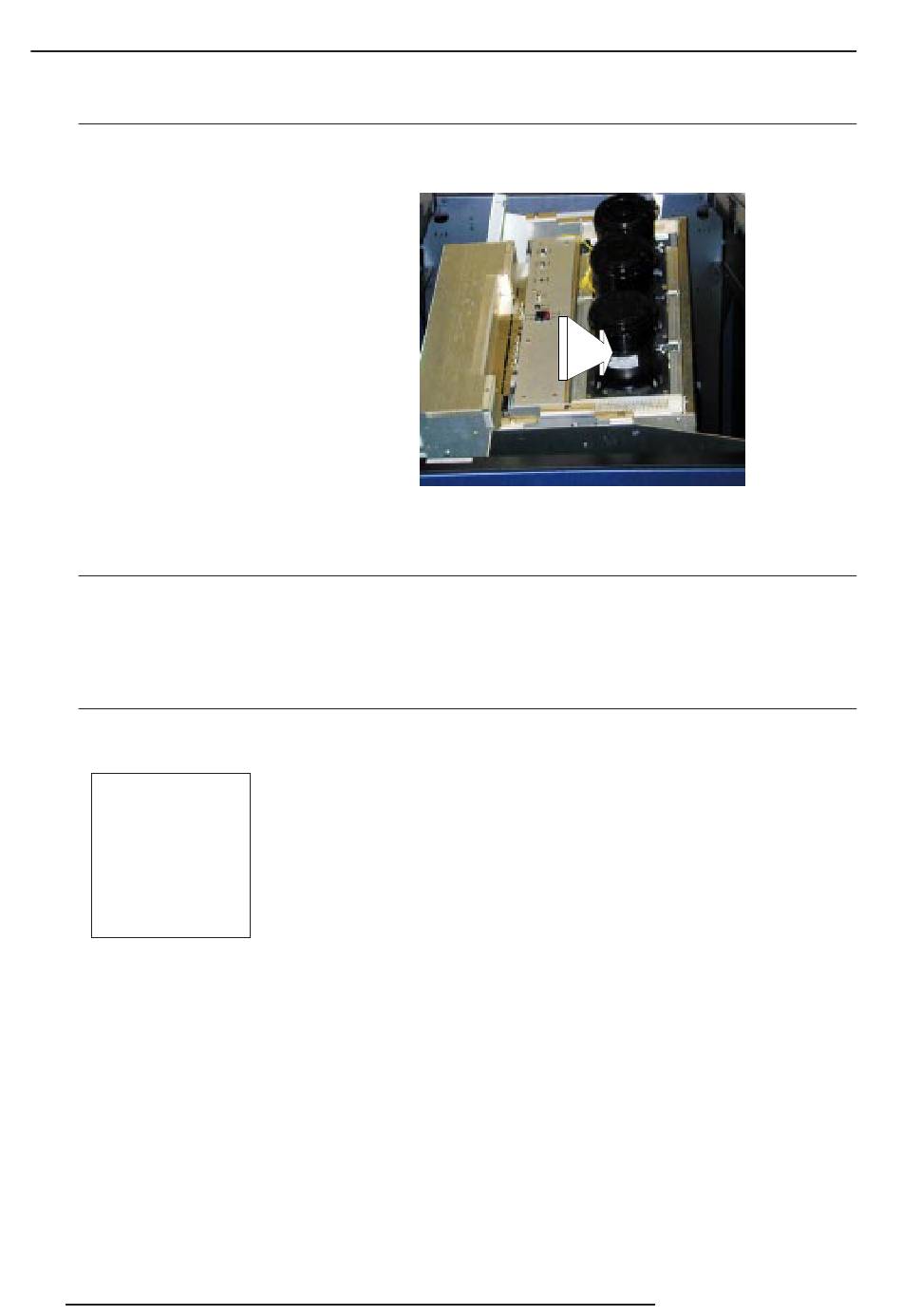

As the power switch of the built-in projector is not accessible from the outside, the wall display always will be in the standby condition
(Power switch pressed).
From these condition, the wall display can be switched from standby to operation and back by the user via the Remote control unit.
To switch off the wall display completely, unplug the power plugs of the projectors from the wall outlets or switch off the power
breaker when using a power strip.
Start Up the Operational Mode from Stand By
The projector can start up displaying the image of the selected source or the projector can start up displaying the warm up cycle
message (menu 1).
PROJECTOR WARM UP
A FULL WHITE PATTERN WILL BE
GENERATED FOR 20 MIN.
FOR IMMEDIATE USE OF THE
PROJCTOR, PRESS <EXIT>
WARNING : SKIPPING THIS
PROCEDURE CAN REDUCE THE
INITIAL PICTURE QUALITY OF THE
PROJECTED IMAGE;
YOU CAN ADJUST THE IMAGE
DIMENSTIONS WITH THE ARROW
KEYS TO AVOID SCANNING ON
THE EDGES OF THE CRT'S;
THIS OPTION CAN BE DISABLED IN
THE SERVICE MENU
with <ENTER>
<EXIT> to return
menu 1
When this warm up cycle message appears on the screen, the menu offers the possibility to start with this 20 minutes warm up pe riod
(press ENTER) or to skip this cycle (press EXIT).
Note : This warm up period is built in so that the projector can reach its maximum specifications and minimize all distortions.
When ENTER is pressed, a full white image is generated which orbits on the CRT faceplate to avoid burning in. Every 30 seconds
a text box will be displayed on another place on the screen with the remaining time to go.
To interrupt the warm up period, handle as follow :
1. Press EXIT, the warm up menu will be redisplayed with the remaining time indication.
2. Press EXIT again to quit the warm up cycle and to display the source.
