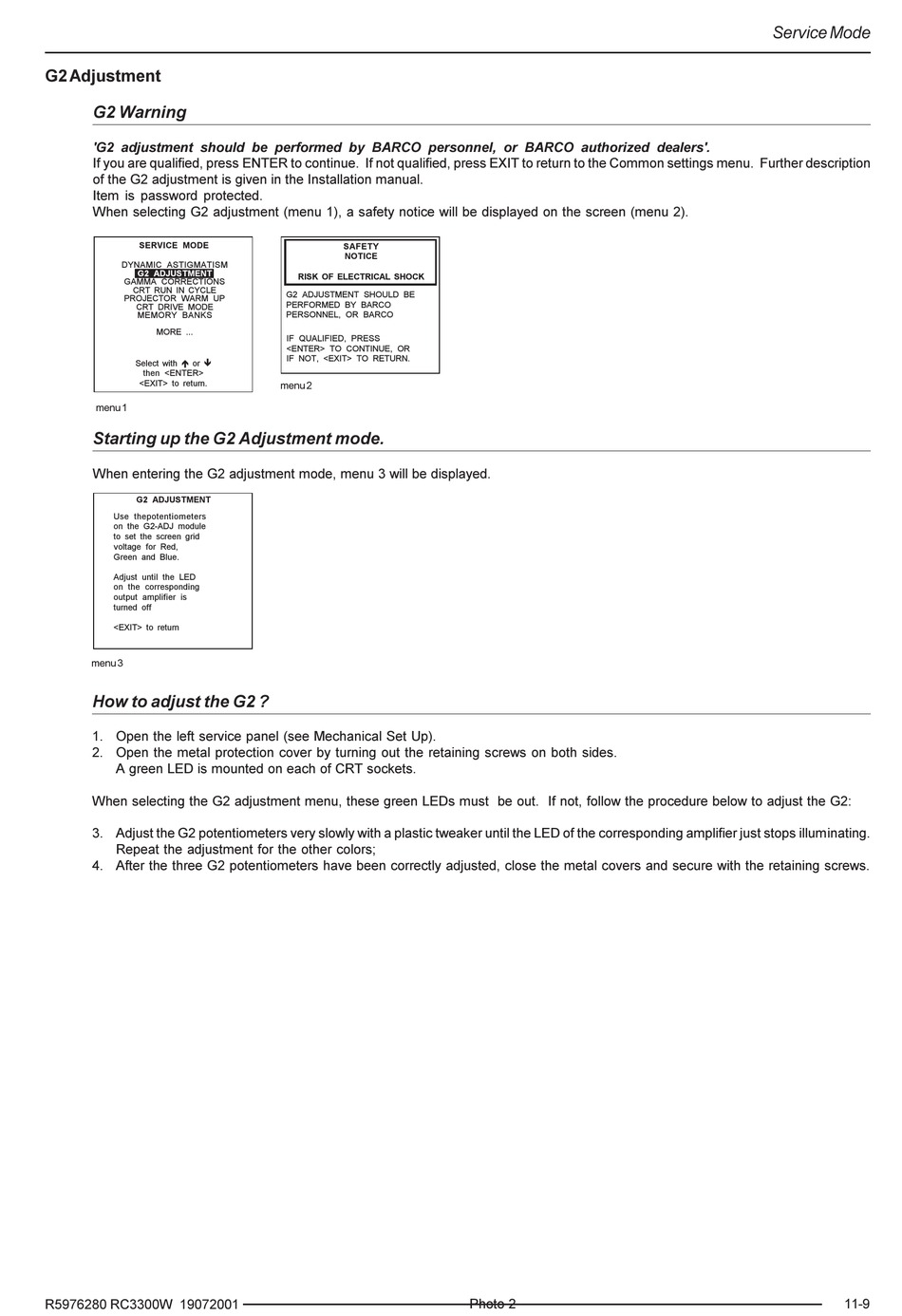

G2 Adjustment

G2 Warning

'G2 adjustment should be performed by BARCO personnel, or BARCO authorized dealers'.
SERVICE MODE
DYNAMIC ASTIGMATISM
G2 ADJUSTMENT
GAMMA CORRECTIONS
CRT RUN IN CYCLE
PROJECTOR WARM UP
CRT DRIVE MODE
MEMORY BANKS
MORE ...
Select with é or ê
then <ENTER>
<EXIT> to return.
menu 1

Starting up the G2 Adjustment mode.

G2 ADJUSTMENT
Use thepotentiometers
on the G2-ADJ module
to set the screen grid
voltage for Red,
Green and Blue.
Adjust until the LED
on the corresponding
output amplifier is
turned off
<EXIT> to return
menu 3

How to adjust the G2 ?

SAFETY
NOTICE
RISK OF ELECTRICAL SHOCK
G2 ADJUSTMENT SHOULD BE
PERFORMED BY BARCO
PERSONNEL, OR BARCO
IF QUALIFIED, PRESS
<ENTER> TO CONTINUE, OR
IF NOT, <EXIT> TO RETURN.
menu 2
Service Mode
