Projector Set Up

Projector Address

Projector Address Setting

The projector's address may be set to any value between 0 and 255.
When the address is set, the projector can be controlled now by :
- RCU for addresses between 0 and 9.
- a computer for addresses between 0 and 255.

Address Set Up

The set up of an address is a hardware SETUP of the projector which must be done during installation.

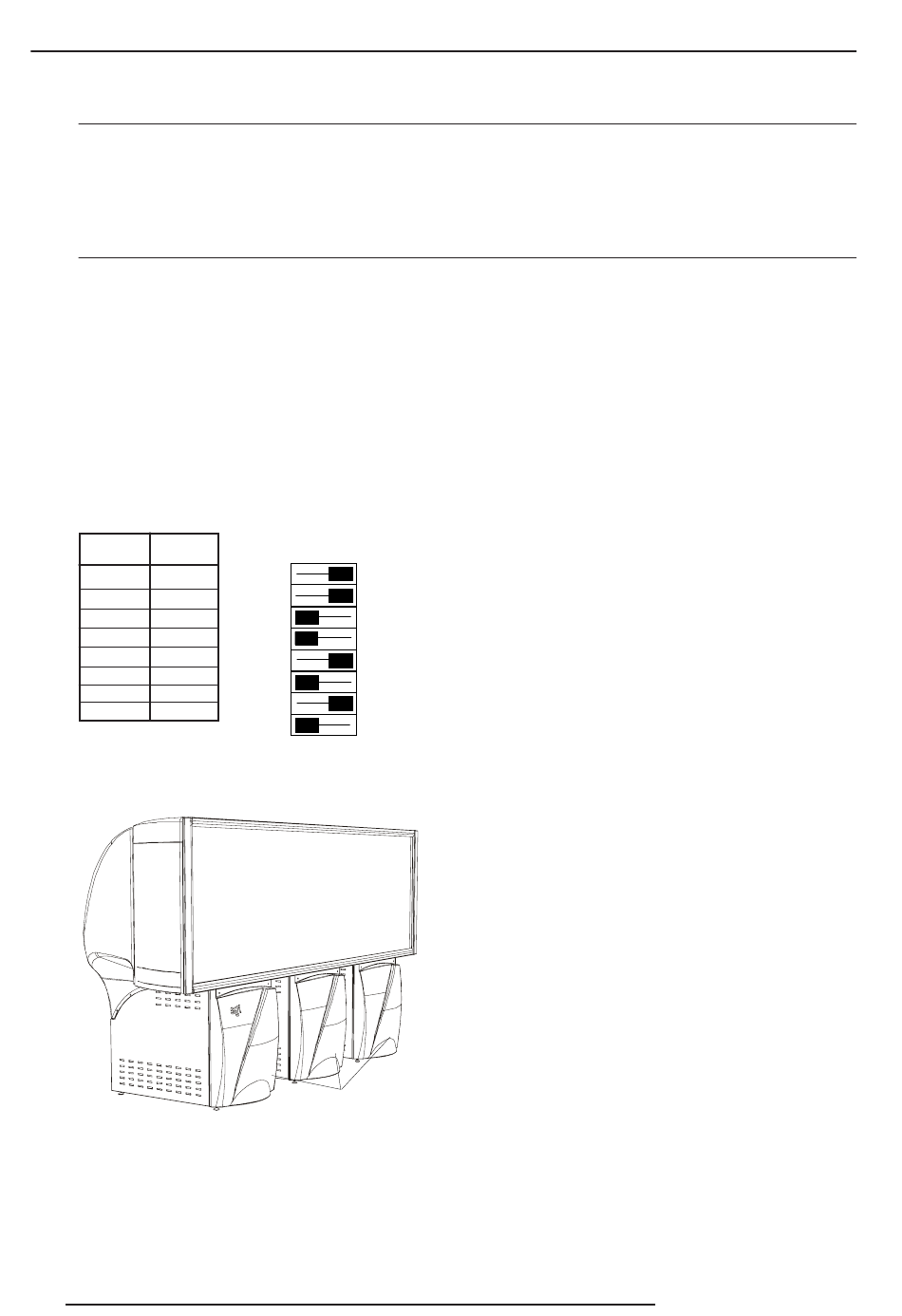

Use the 8 DIP switches provided on the controller board labelled 'Projector Address'.
Each DIP switch has its own decimal value. The sum of the values associated to those DIP switches gives the address.
See table below for the equivalent value. If Switch No. 1 is set to ON, it represents a decimal value of 128, Switch No.2 for 64, Switch
No.3 for 32, and so forth.
In the given example, the projector address is set to 202 :
DIP switch No.
Position ON/OFF
Sum : 1x128 + 1x64 + 0x32 + 0x16 + 1x8 + 0x4 + 1x2 + 0x1 = 202
Table :
Switch No Value
1 128
2 64
3 32
4 16
5 8
6 4
7 2
8 1
Standard set up for a RC-3300W system.
Left projector : address 1
Middle projector : address 2
Right projector : address 3
If a second system is installed in the same room, these projector addresses should be higher than 3, e.g. 4, 5 and 6.
6-2
: 1 2 3 4 5 6 7 8
: 1 1 0 0 1 0 1 0










OFF ON


Q…‚wrp‡‚…Ãhqq…r††r†
Each projector needs a separate address.
