CONNECTIONS

Cables

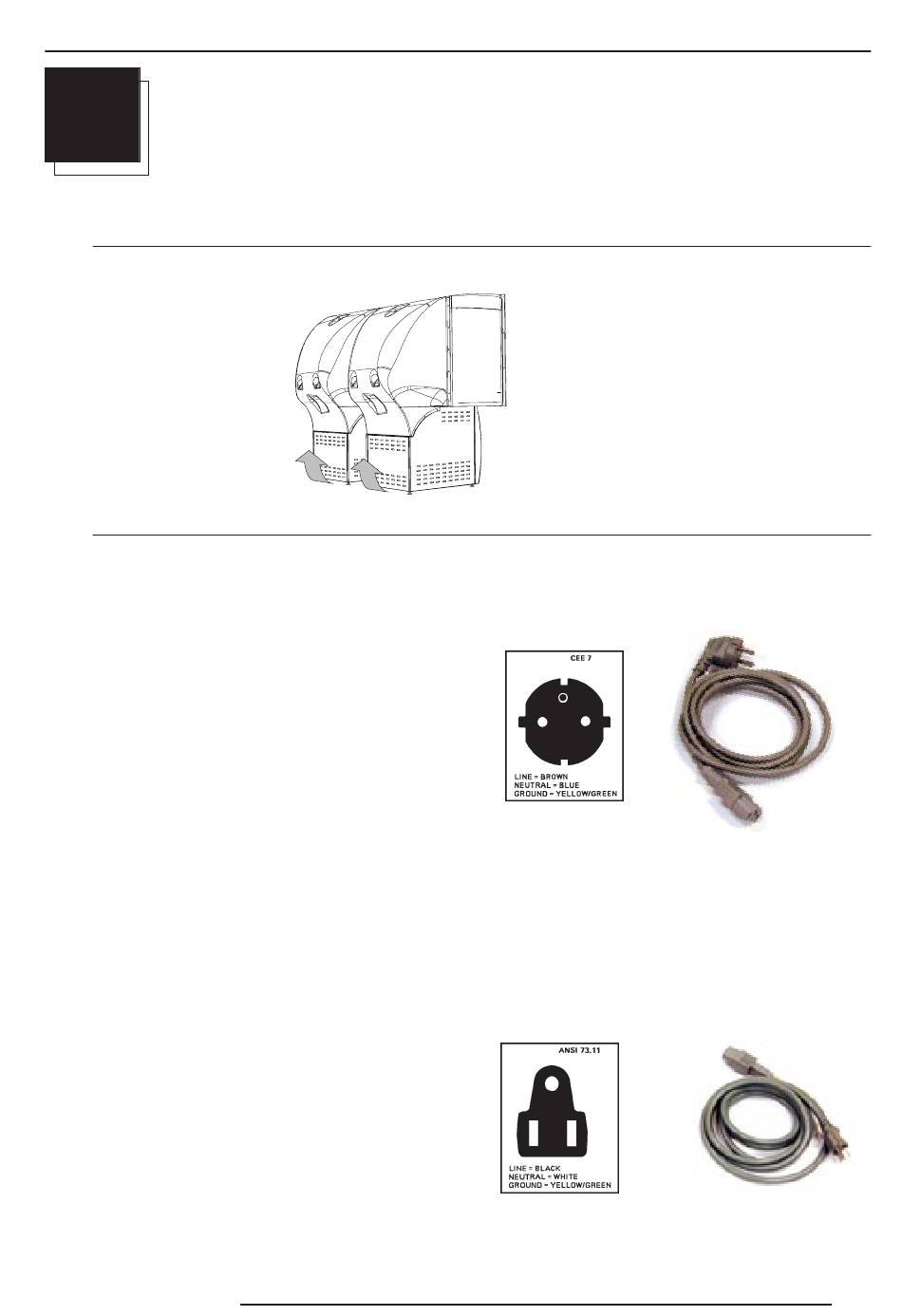

Where to enter the Cables ?

All cables should be entered the projector via the bottom of the projector cabinet.

Power Connection

AC Power (Mains) Cord Connection

For each projector (Auto range between 120V and 240V), 2 mains leads (power cords) are supplied. Depending the wall outlet,
use the corresponding cord for power connection.
The power cord of the system has a 3-pin plug. This design aims at preventing electric shock due to leakage current. Be always
sure to connect the power plug into a 3-pole power outlet.
Mains lead (Power cord) with a CEE7 plug
As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals
in your plug, proceed as follows:
• The yellow/green wire is ground and must be connected to the terminal in the plug which is marked by the letter E or by the safety
earth symbol or colored yellow and green.
• The blue wire is neutral and must be connected to the terminal marked with the letter N or colored black.
• The brown wire is the line and must be connected to the terminal marked with the letter L or colored red.
The wires of the delivered mains lead (power cord) are colored in accordance with the following code :
Yellow and Green
Blue
Brown
Mains lead (Power cord) with an ANSI 73.11 plug
The wires of the delivered mains lead (power cord) are colored in accordance with the following code :
Yellow and Green
White
Black
R5976280 RC3300W 19072001
: Ground (Earth).
: Neutral.
: Live.
: Ground (Earth).
: Neutral.
: Live.
Connections
7-1
