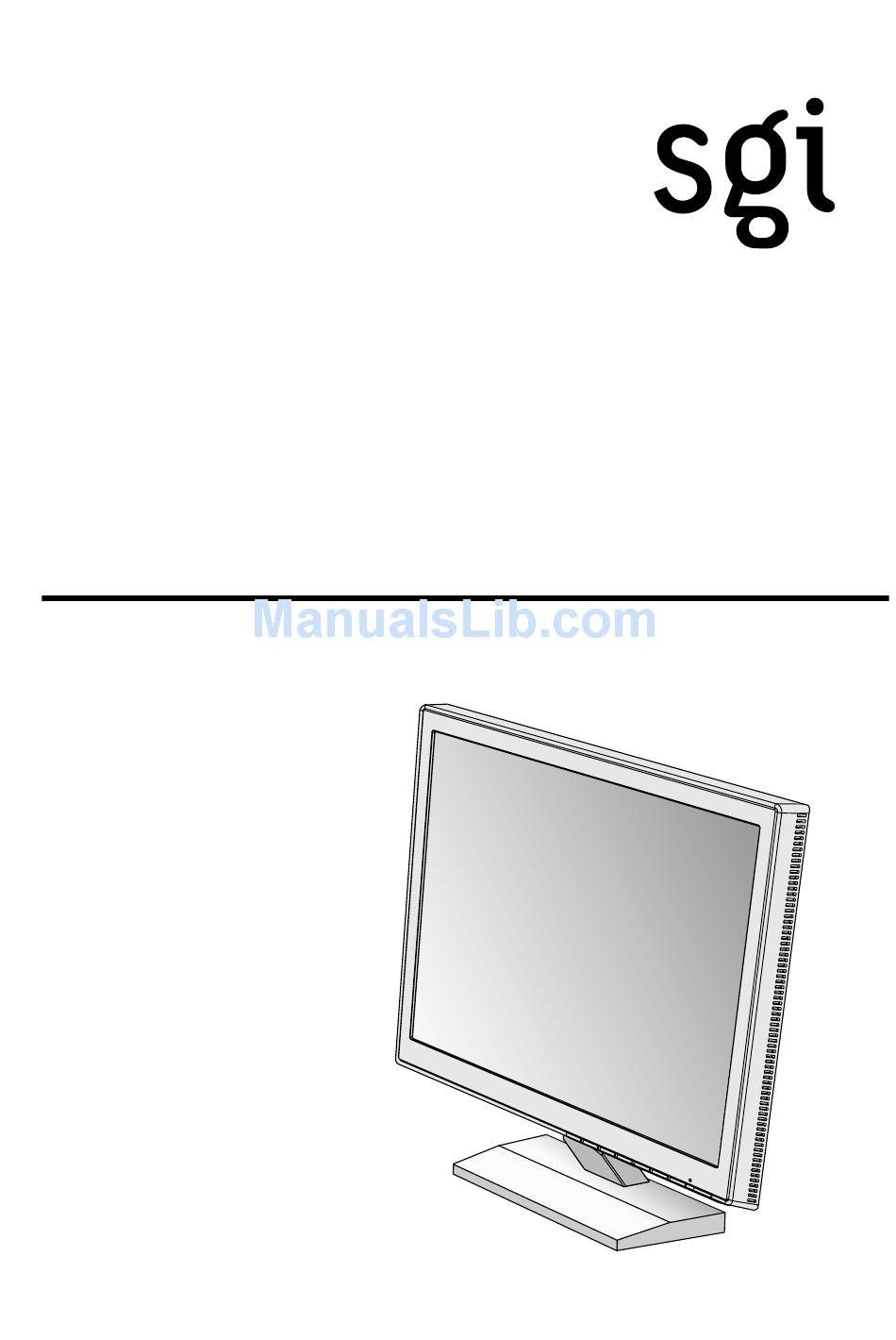

- Page 1 Silicon Graphics® F181 Flat Panel Display User Guide...
- Page 2 TCO’95 Congratulations! You have just purchased a TCO’95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.
- Page 3 TCO’95 - Continued Mercury** Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercury damages the nervous system and is toxic in high doses. TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit, except the back-light system.
-
Page 4: Table Of Contents
Index Safety Instruction ......English-1 Warning ........English-1 Caution ........English-1 Contents ........English-2 Quick Start ........English-3 Controls ........English-4 Recommended use ..... English-7 Specifications ......English-9 Features ........English-10 Monitor Troubleshooting .... English-11... -
Page 5: Declaration Of The Manufacturer
Declaration of the Manufacturer We hereby certify that the flat panel display F181 (L182R4) is in compliance with Council Directive 73/23/EEC: – EN 60950 Council Directive 89/336/EEC: – EN 55022 – EN 61000-3-2 – EN 61000-3-3 – EN 55024 and marked with Silicon Graphics, Inc. -
Page 6: Safety Instruction
U.S. registered trademark. All other brands and product names are trademarks or registered trademarks of NERGY their respective owners. As an E Partner, Silicon Graphics, Inc. has determined that this product meets the E guidelines for NERGY NERGY energy efficiency. -
Page 7: Contents
Contents Your new Silicon Graphics F181 Flat Panel Display box* should contain the following: • Display with tilt base • User’s Manual • Video Signal Cable (DVI-D to DVI-D) Video Signal Cable (DVI-D to DVI-D) User’s Manual Remember to save your original box and packing material to transport or ship the display. -
Page 8: Quick Start
(Figure C). 4. Connect one end of the power cord to the F181 Display and the other end to the power outlet. Place the Video Signal Cable and power cord under Cable cover (Figure C). Replace cable cover. - Page 9 Quick Start - Continued Cable cover Figure C Vacation Switch Power button Figure D English-4...
- Page 10 Grasp both sides of the display screen with your hands and adjust the tilt and swivel as desired (Figure E). Monitor stand (Optional) The F181 can be fitted with an adjustable or wall mount type stand. Prior to attaching these optional stands the original Tilt/Swivel stand must be removed.
- Page 11 Quick Start - Continued This LCD display is designed for use with a flexible arm. Please use the attached screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the display must be mounted to an arm which guaranties the necessary stability under consid- eration of the weight of the display.
-
Page 12: Controls
Controls OSD (On-Screen Display) control buttons on the front of the display function as follows: To access OSD menu, press any of the control buttons (EXIT, , –, +). To change signal input, press the SELECT button. NOTE: OSD must be closed in order to change signal input. Menu EXIT Exits the OSD controls. -
Page 13: Color Control Systems
Controls - Continued FINE (Analog input only) Improves focus, clarity and image stability by increasing or decreasing this setting. If the “Auto Adjust function” and the “H.Size” function do not give you a satisfactory picture setting, a fine tuning can be performed manually using the “Fine” function. It improves focus, clearity and image stability by increasing or decreasing this setting. - Page 14 Controls - Continued OSD LOCK OUT: This control completely locks out access to all OSD contrl functions except for BRIGHTNESS and CONTRAST adjustments. When attempting to activate OSD controls while in the Lock Out mode, a screen will appear indicating the OSD controls are locked out. To activate the OSD Lock Out function, press SELECT, then “+”...
-
Page 15: Recommended Use
NOTE: As with all personal display devices, Silicon Graphics recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. - Page 16 Recommended use - Continued • Position the display at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the display tilt so that ceiling lights do not reflect on your screen. • If reflected light makes it hard for you to see your screen, use an antiglare filter. •...
-
Page 17: Specifications
Specifications Monitor Specifications F181 Flat Panel Display Notes LCD Module Diagonal : 46cm/18.1 inches Active matrix; thin film transistor (TFT) liquid Viewable Image Size : 46cm/18.1 inches crystal display (LCD); 0.28 mm dot pitch; Native Resolution (Pixel Count): 1280 x 1024 200cd/m white luminance;... -
Page 18: Features
Features Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The display’s small footprint and low weight allow it to be moved or transported easily from one location to another. Color Control Systems: Six color presets select the desired color setting (sRGB and NATIVE color presets are standard and cannot be changed). -
Page 19: Troubleshooting
Troubleshooting No picture • The signal cable should be completely connected to the display card/computer. • The display card should be completely seated in its slot. • Check the Vacation Switch should be in the ON position. • Front Power Switch and computer power switch should be in the ON position. •...
