2.3.3.4 Door Strike Relay Module Wiring Diagram from Intercom
For wiring an electronic door strike, we recommend the use of our external Door Strike Relay Module
(CD# 011269).
This product provides an easier method of connecting standard door strikes as well as AC and
higher voltage devices. See

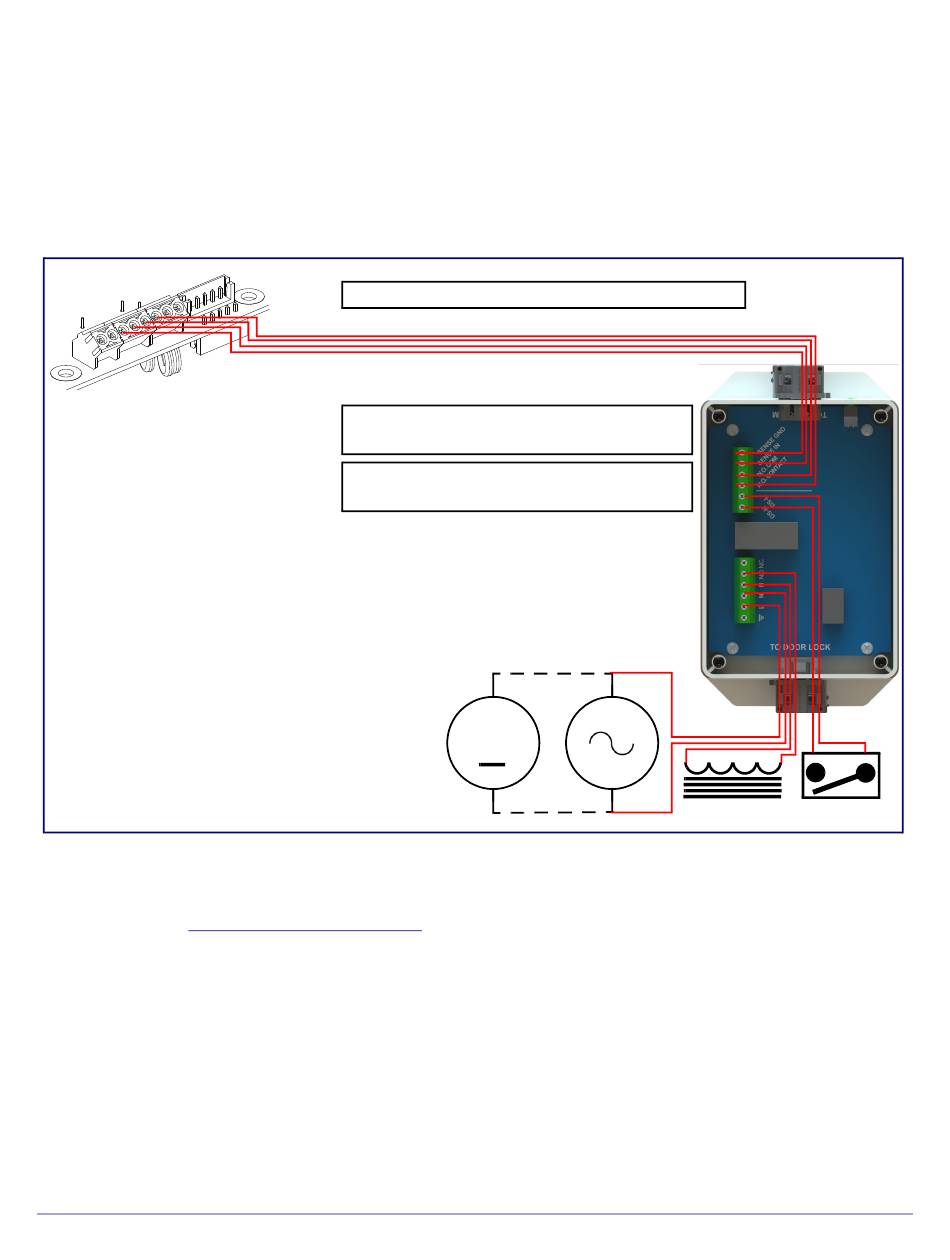

Figure 2-10. Door Strike Relay Module Wiring Diagram from Intercom
1
8
Terminal Block
If you have questions about connecting door strikes or setting up the web configurable options,
please contact our support department at the following website:
http://support.cyberdata.net/
Operations Guide
Installing the Singlewire InformaCast Indoor Intercom with Keypad
Figure 2-10 for the wiring diagram.
The terminal block can accept 16 AWG stranded wire.
See the Door Strike Relay Operations Guide for
connection specifics.
See Section 2.4.16, "Configure the Door Strike
Relay" for configuration options.
+
DC Source
931640A
AC Source
OR
Door Lock
Wiring the Circuit
Sense Input
