9. Pull out the cell holder and base plate by hand.

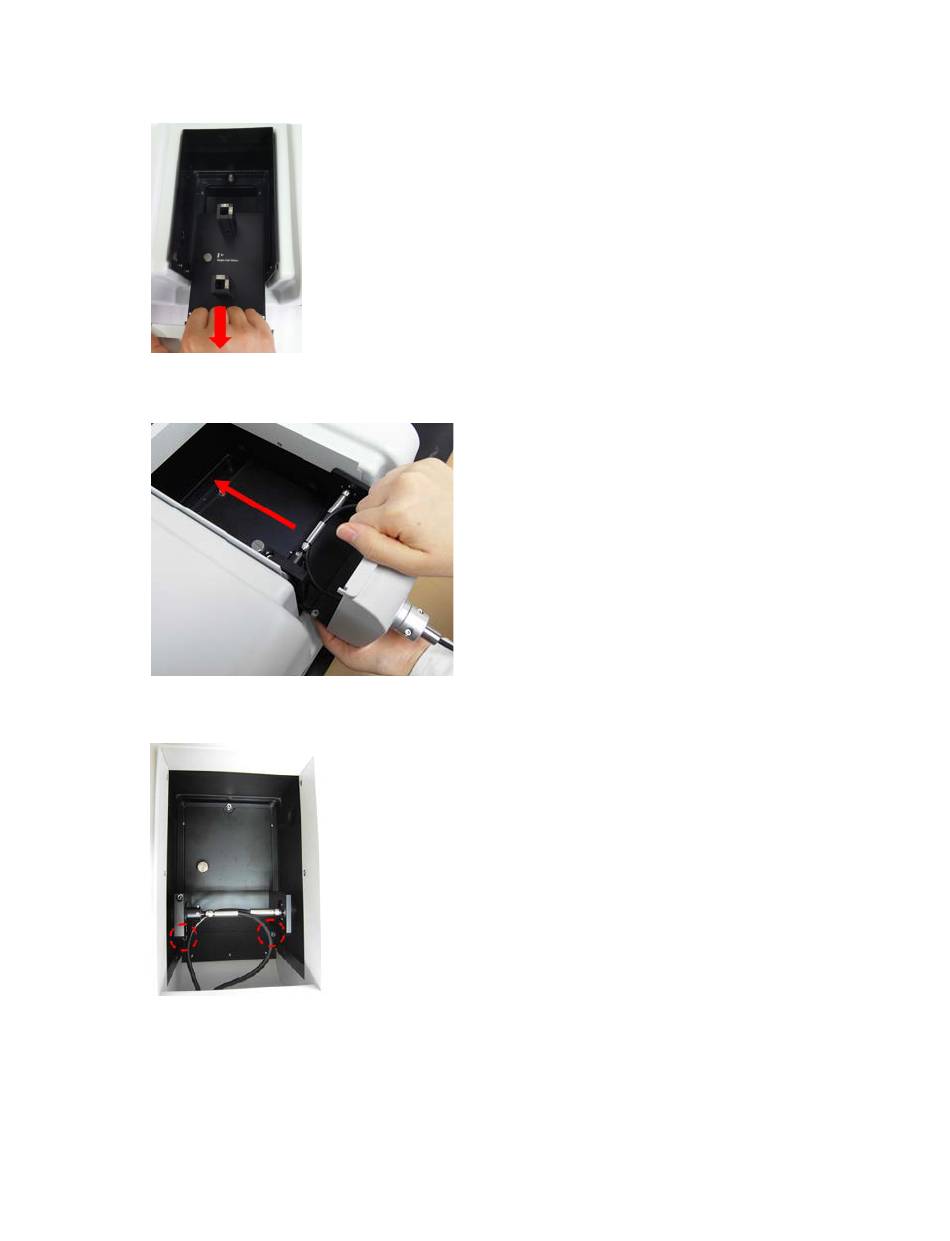

Figure 13 Pulling out the cell holder and base plate
10. Insert the Fiber Coupling Module with fiber optic probe into the sample compartment.
Figure 14 Inserting the Fiber coupling module with fiber optic probe
11. Tighten the Fiber Coupling Module in the sample compartment with the screws.
Figure 15 Screw location
12. Dip the fiber optic probe into the liquid sample.
13. Align the optimum position by moving Fiber Optic Probe itself. The alignment procedure will be
described in the section of Alignment of Fiber Optic Probe.
