PerkinElmer L6050002B Quick Setup Manual

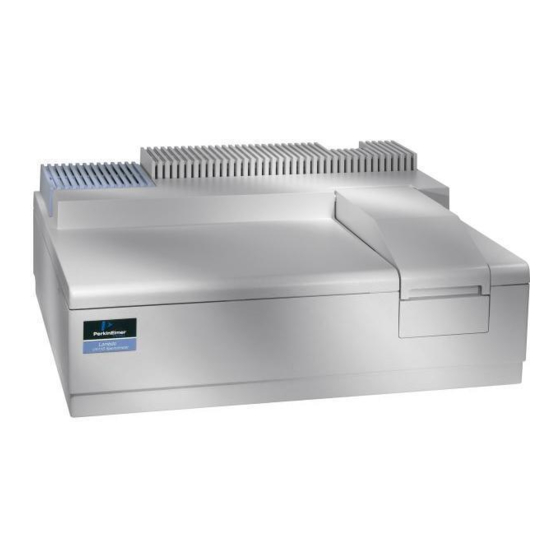

Lambda Spectrometer Quick Setup Guide

Installing the Spectrometer

As the Lambda 25, 35, 45 weighs approximately 26 kg, we recommend that the instrument is
lifted by 2 adults, and that it is lifted by the base of the instrument.
WARNING
1.
Create a space on the bench in your laboratory.
Dimensions of the spectrometer:
NOTE: Remember to leave space for your PC on the right hand side of the spectrometer.
2.
Unpack and check all components:
• Lambda Spectrometer
• RS232 Cable (09410022)
3.
Examine the components for any signs of damage during shipment. Make sure terminals, fuse holders, etc.
are not damaged. Open and close the sample compartment cover, checking that it moves freely. If the
instrument has been damaged, do not switch it on. Please contact your local PerkinElmer service
representative.
Electrical Hazard:
make the electrical connections between the instruments in the system before connecting to
the line power supply. The spectrometer automatically adjusts to the correct operating voltage.
Before starting the instrument for the first time, make sure that the correct fuse is fitted to your
WARNING line power supply. If you have a different fuse, change it for the correct one.
Width 56 cm
(22.05 inches)
• 2 Single Cell Holders
• Line Power Cord
To prevent potential injury to yourself and damage to the instrument, first
Length 65 cm Height 26 cm
(25.59 inches) (10.24 inches)
• Hexagonal Wrench
• Spare Fuse
PerkinElmer Ltd, Chalfont Road, Seer Green,
Beaconsfield, BUCKS, HP9 2FX, United Kingdom
L6050002B
• Screwdriver
• Software Kit
Produced in the USA
