09931262E

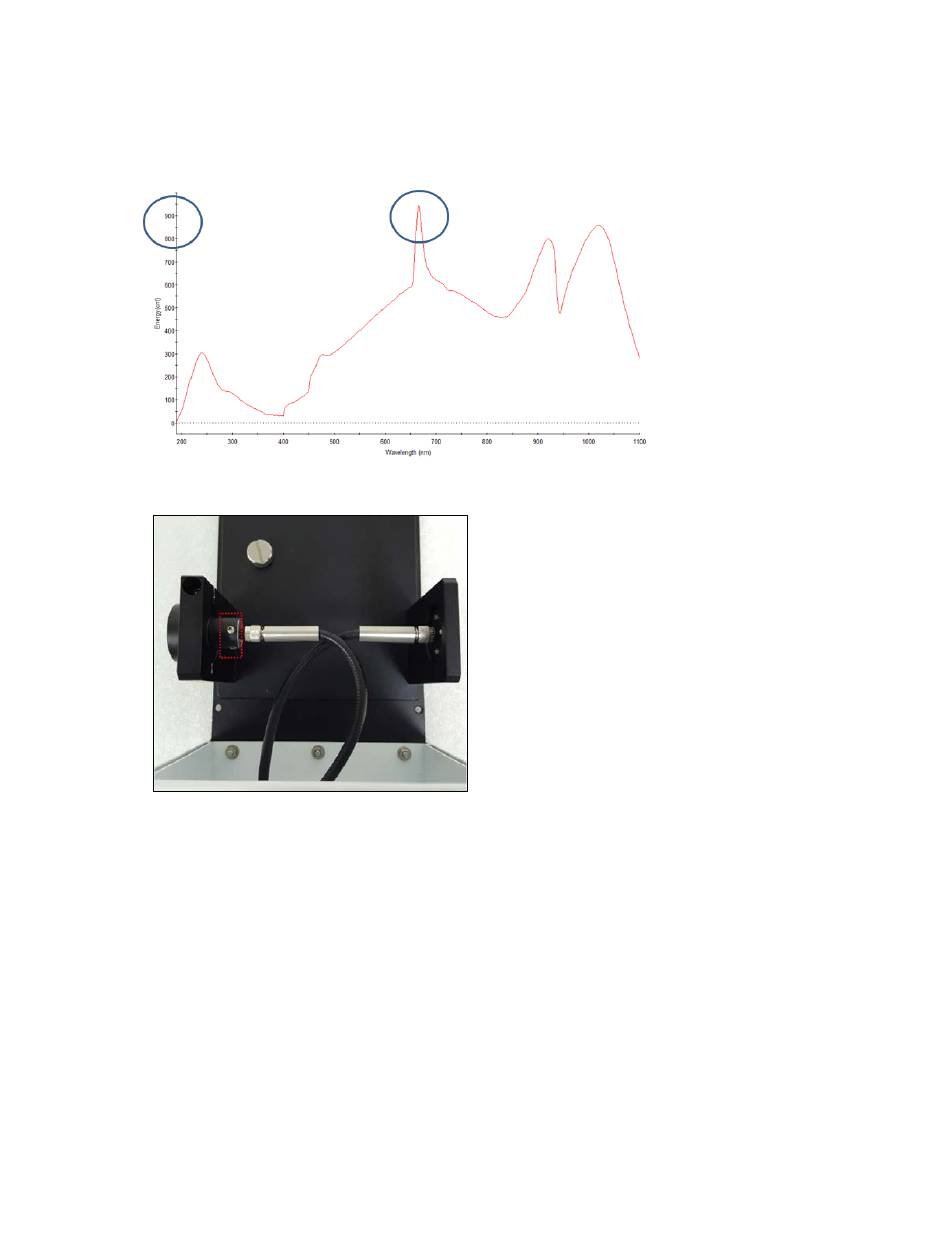

5. If the baseline measurement has abnormal results, the Fiber Optic Probe has to be aligned.
Ex) Intensity is too low.
6. Loosen the three M3 setscrews on the collimator holder using a 1.5 mm wrench.
7. Move slightly back and forth the fiber optic probe connector to the light source side for the
alignment, and then tighten the screw on the collimator holder.
20
