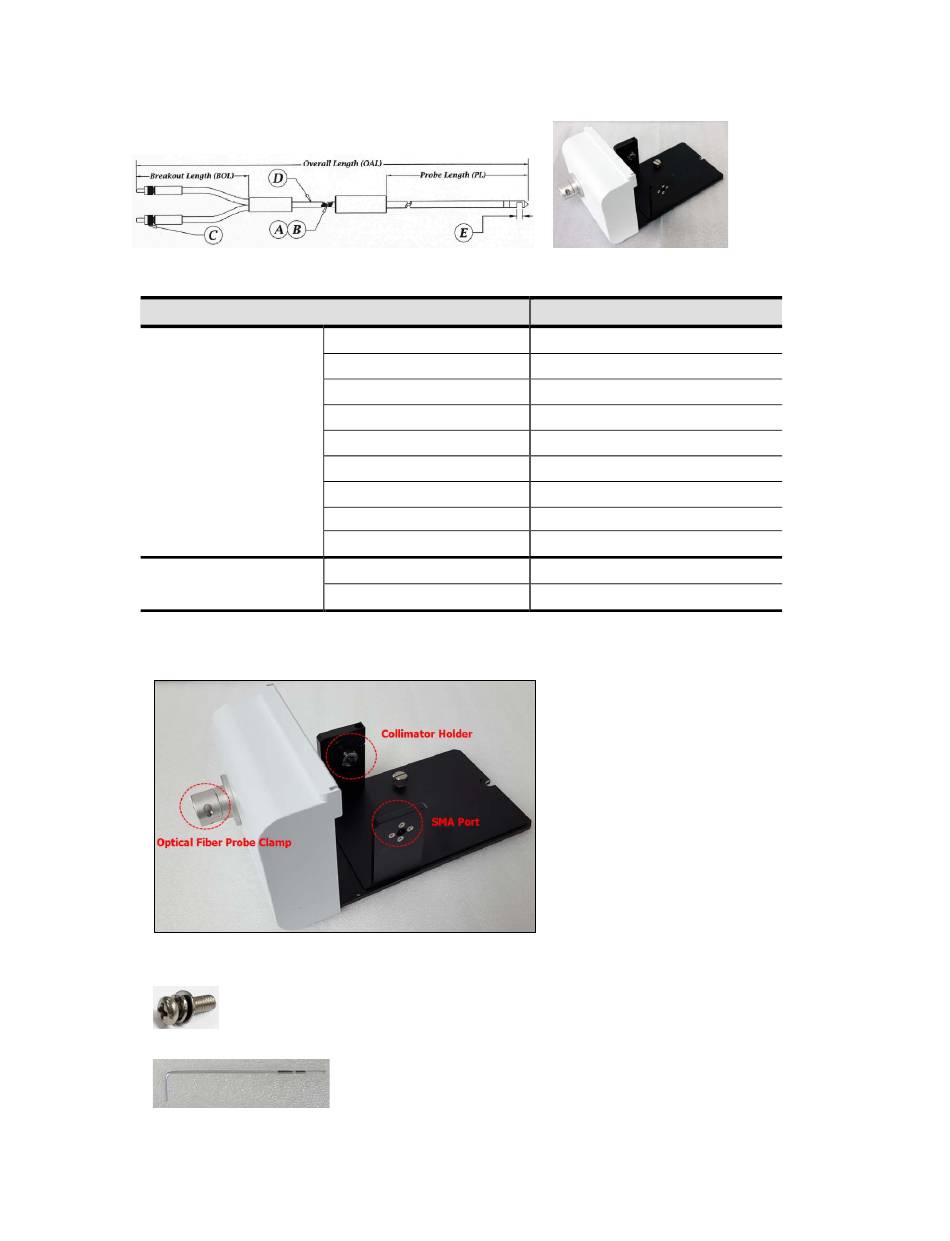

Dim ensions and Specifications
Figure 2 Fiber Optic Probe
Physical Characteristic
Fiber Optic Probe
(Part No: N4101048)
Fiber Coupling Module
(Part No: N4101013)
Configuration of Fiber Coupling M odule
Figure 4 Fiber Coupling Module
- Used to fix a front plate for Fiber Coupling Module
- Spare screws (2ea) are enveloped with the accessory
Figure 5 Phillips round head screw with washer (M4 *12L)
Figure 6 1.5 mm wrench
A: Fiber Type
B: Fiber Size
C: Connector
D: Probe Diameter
E: Path Length
Spectral Range
Overall Length (OAL)
Breakout Length (BOL)
Probe Length (PL)
Dimension (mm)
Weight (Kg)
2
Figure 3 Fiber Coupling Module
Specification
Fused Silica
600 µm
SMA 905
∅ 0.19" OD
10 mm
200 nm ~ 1100 nm
100 ~ 120 cm
18 ~ 23cm
15.2 cm
132(W) x 138(H) x 280(D)
0.92
09931262E
