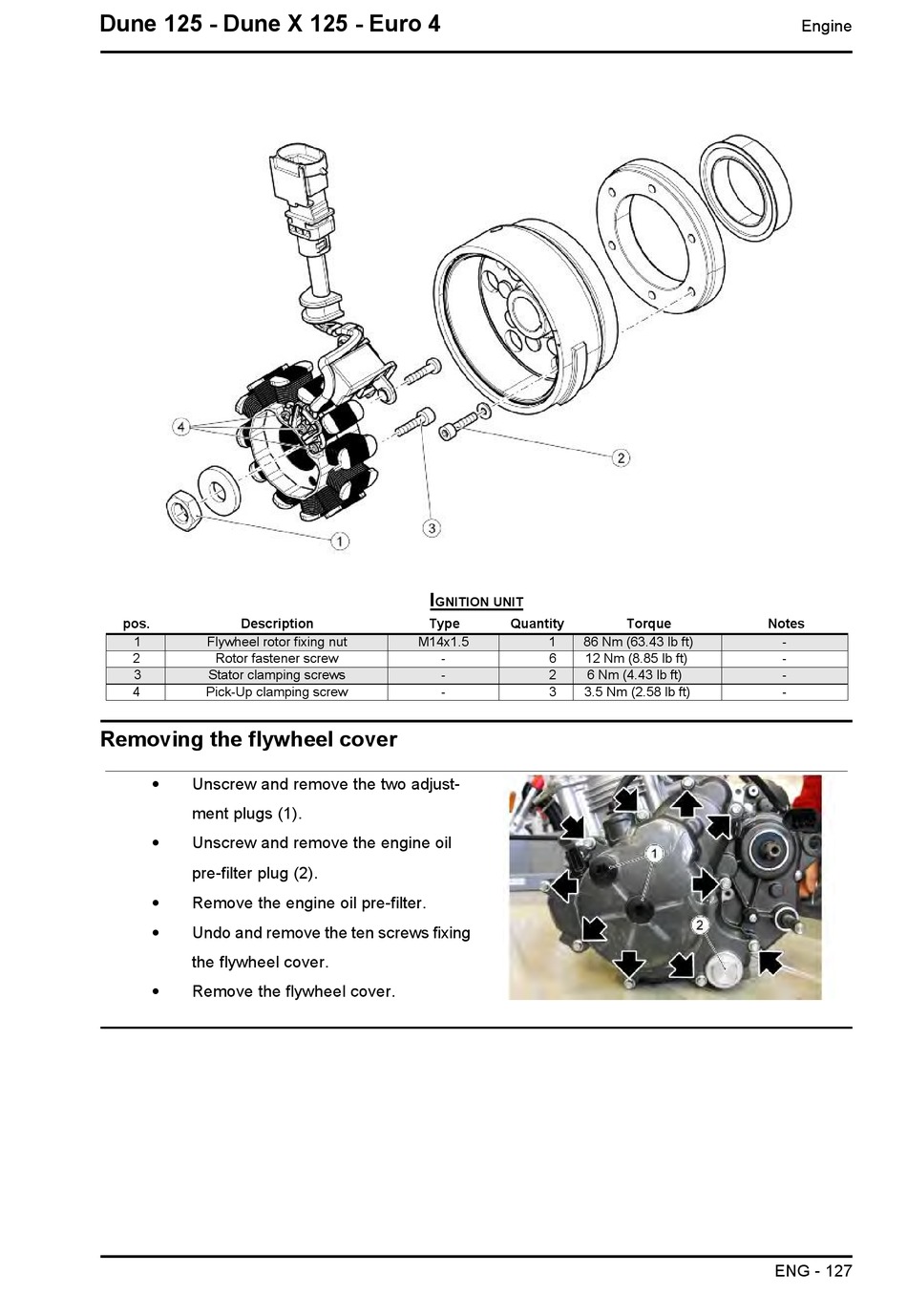

Removing The Flywheel Cover - Malaguti Dune X 125 Service Station Manual

Dune 125 - Dune X 125 - Euro 4
pos. Description
1 Flywheel rotor fixing nut
2 Rotor fastener screw
3 Stator clamping screws
4 Pick-Up clamping screw

Removing the flywheel cover


Unscrew and remove the two adjust-
ment plugs (1).

Unscrew and remove the engine oil
pre-filter plug (2).

Remove the engine oil pre-filter.

Undo and remove the ten screws fixing
the flywheel cover.

Remove the flywheel cover.
I
GNITION UNIT
Type Quantity
M14x1.5 1 86 Nm (63.43 lb ft)
- 6 12 Nm (8.85 lb ft)
- 2 6 Nm (4.43 lb ft)
- 3 3.5 Nm (2.58 lb ft)
Torque Notes
-
-
-
-
ENG - 127
Engine
