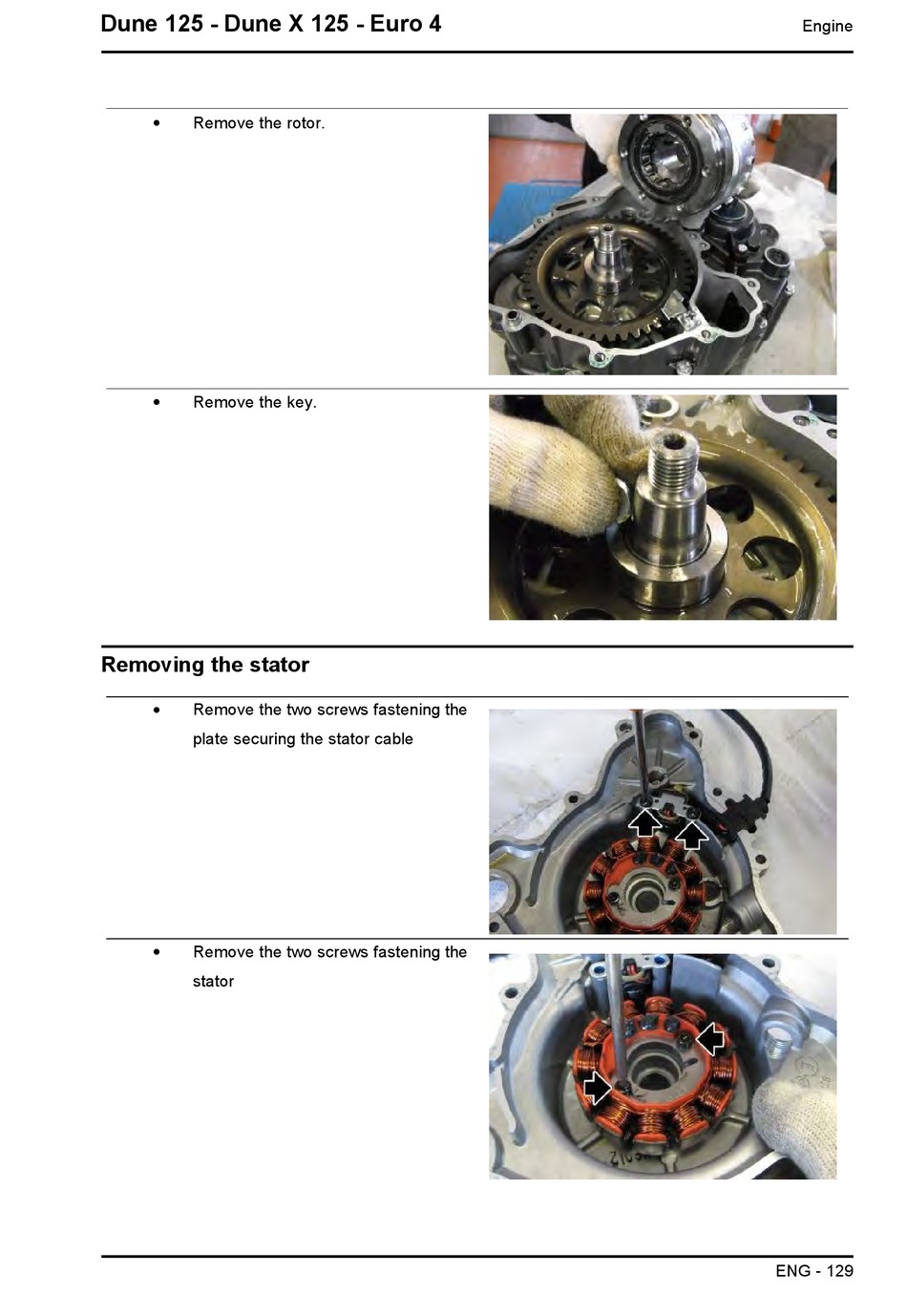

Dune 125 - Dune X 125 - Euro 4
Remove the rotor.
Remove the key.

Removing the stator

Remove the two screws fastening the
plate securing the stator cable
Remove the two screws fastening the
stator
Engine
ENG - 129
