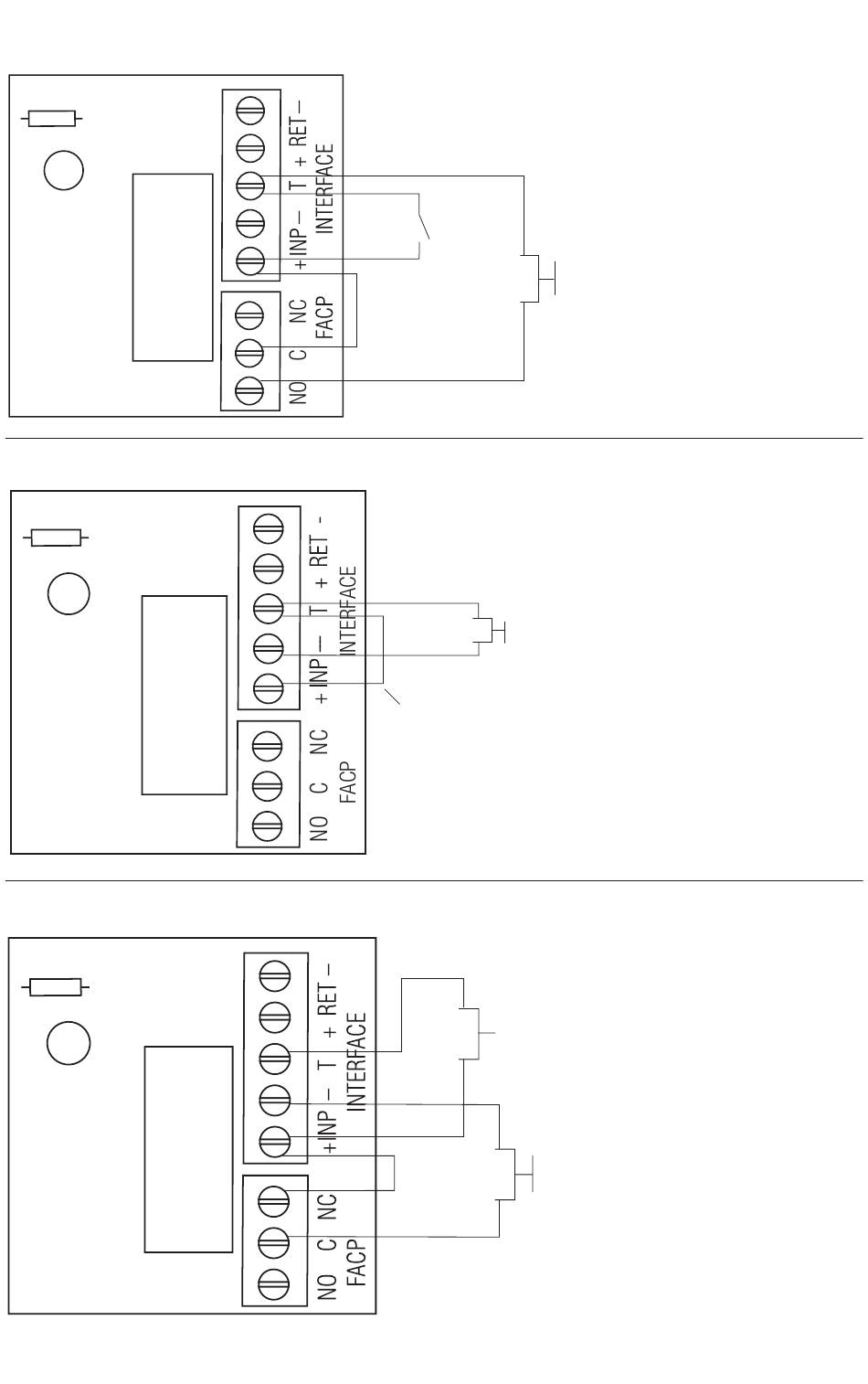

FACP/Optional Power Supply Hook-up Diagrams (cont'd):
Fig. 13
Normally Open FACP Latching trigger input with reset: (This output has not been evaluated by UL)
TRG
Fig. 14
Normally Closed - Non-Latching FACP trigger input:
TRG
Fig. 15
Normally Closed - Latching FACP trigger input with reset: (This output has not been evaluated by UL)
TRG
- 18 -
N.O.
TRIGGER
INPUT
JUMPER
N.C. DRY
TRIGGER
INPUT
JUMPER
N.C. RESET
SWITCH
JUMPER
Maximal11D/Maximal33D/Maximal55D/Maximal77D/Maximal75D Access Power Controllers (PTC)
N.C. RESET
SWITCH
N.C. TRIGGER
INPUT
