Maximal77D Battery Hookup And Tamper Switch Installation - Altronix MAXIMAL Series Installation Manual

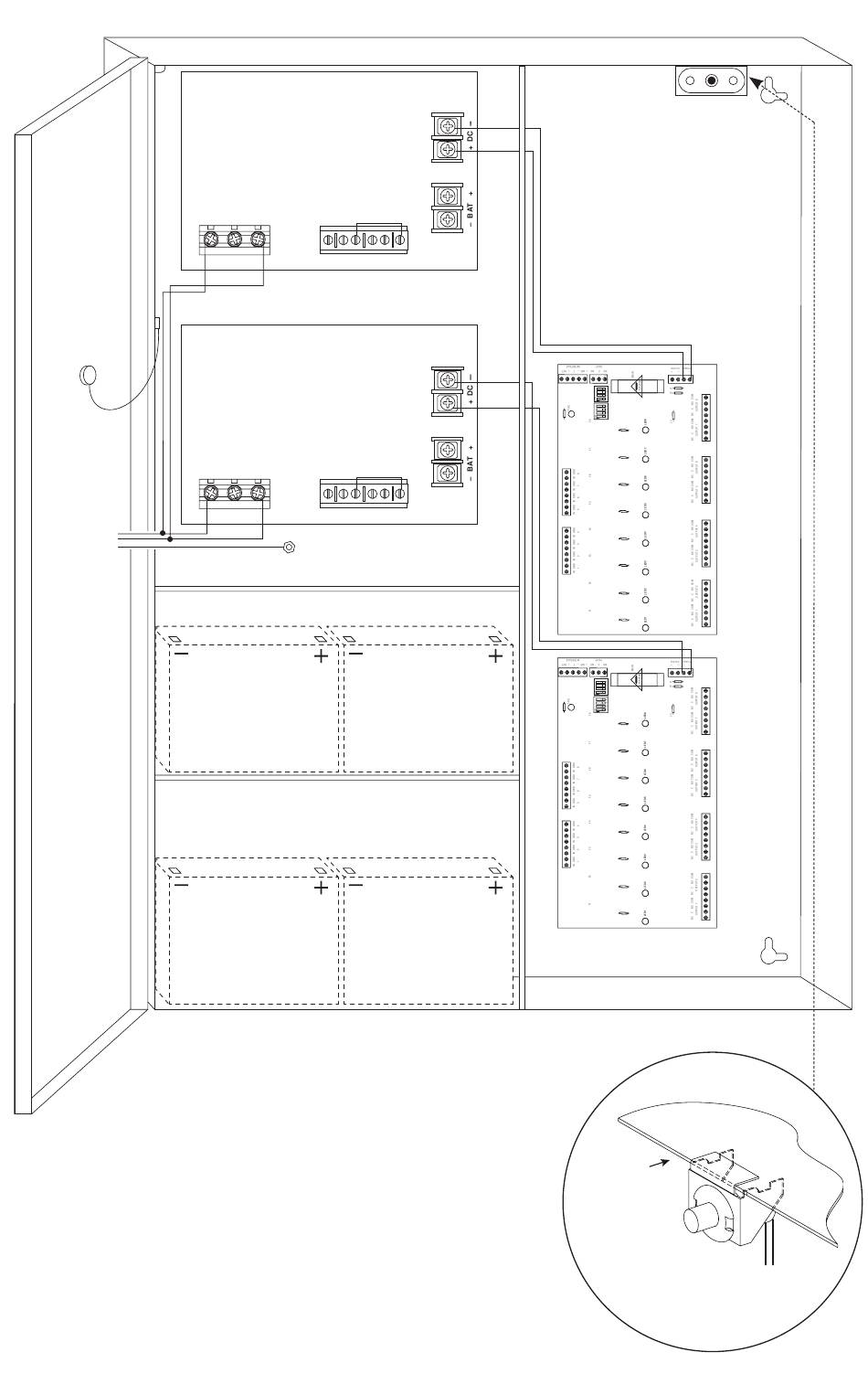

Fig. 4 - Maximal77D
Wire
Strap
(from
Enclosure
to Door)
Input
115VAC,
60Hz
CAUTION: Optional rechargeable stanb-by batteries
must match the power supply output voltage setting.
Keep power-limited wiring separate from
non power-limited wiring.
Minimum 0.25" spacing must be provided.
Maximal11D/Maximal33D/Maximal55D/Maximal77D/Maximal75D Access Power Controllers (PTC)
Power Supply Board
BAT FAIL
L G N
NC C NO
Line
Neutral
Power Supply Board
BAT FAIL
L G N
NC C NO
Line
Neutral
Earth Ground
Optional
12VDC Battery**
Optional
12VDC Battery**
AC FAIL
NC C NO
AC FAIL
NC C NO
Optional
12VDC Battery**
Optional
12VDC Battery**
Fig. 4a
Tamper Switch
Enclosure
Edge of
Enclosure
Tamper Switch
(provided)
To Access Control Panel or
UL Listed Reporting Device
- 11 -
