PLUMBING
Turn off the water supply at the incoming
main and begin plumbing as per the
installation on the previous page.
FIT THE BY
PASS
KIT
Cut the rising main and install the check
valve. Next, plumb the bypass, inlet and outlet
valvesso that the watersupply can be turned
on. For ease and future customer confidence,
follow the typical installation illustration
below. Use the red valve for the inlet, the blue
valve for the outlet and the grey valve as the
bypass. Before turning the water back on,
make sure the bypass is open and the inlet
and outlet valves are closed. This will allow
water t o pass directly t o the household
system without it diverting t o the water
softener. (The use of the plastic plumbing
fittings with copper pipe may affect the
electrical earthing or bonding of the
copper pipe. We advise that you contact an
electrician about the implications on
your system.)

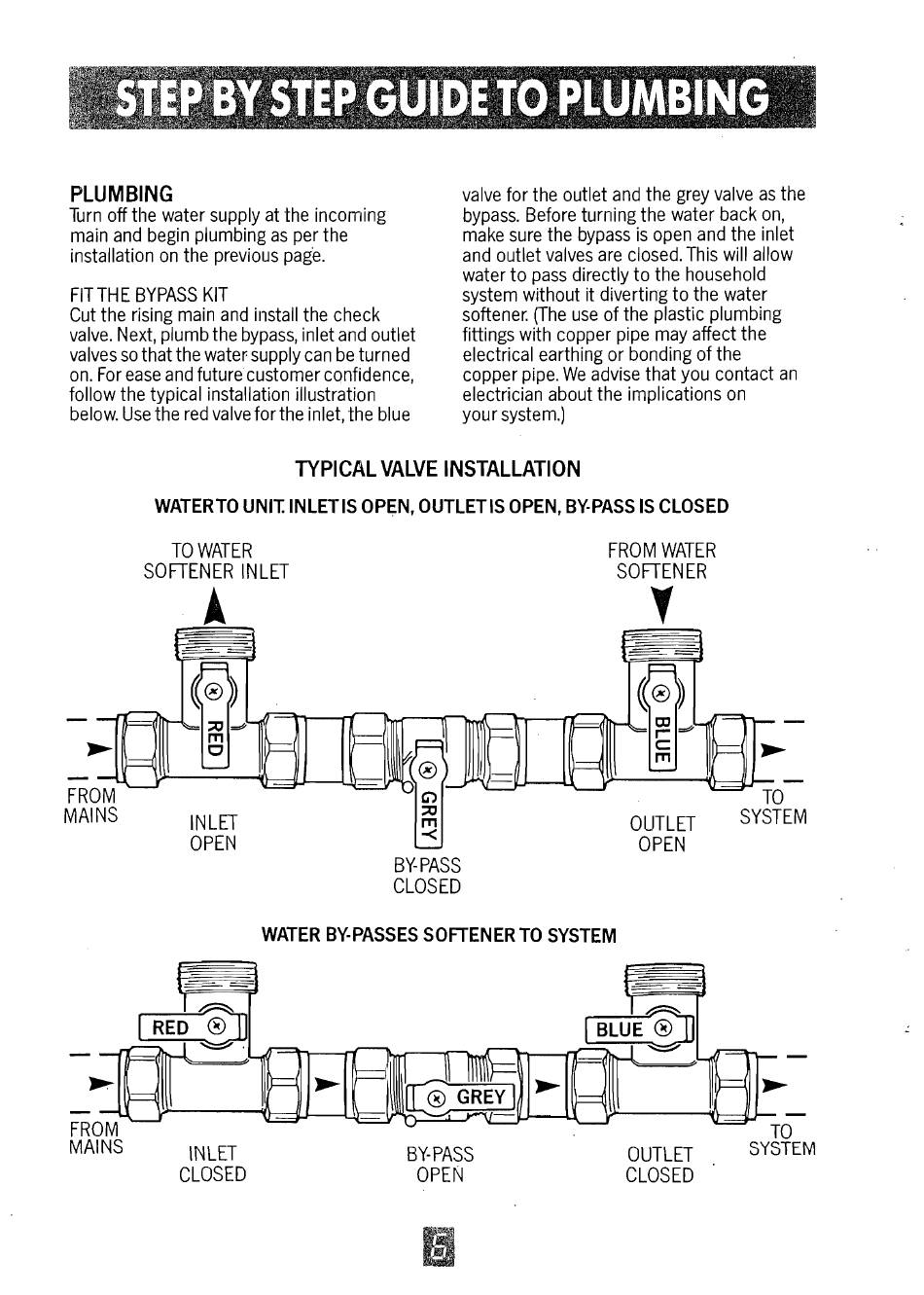

TYPICAL VALVE INSTALLATION
WATERTO UNIT. INLETIS OPEN, OUTLETIS OPEN, BYPASS IS CLOSED
TO WATER
SOFTENER INLET
FROM WATER
SOFTENER
A
OPElU OPEN
BY- PASS
CLOSED
WATER BY-PASSES SOFTENER TO SYSTEM
MA1
NS
INLET
BY- PASS OUTLET
,
SYSTEM
CLOSED OPEN CLOSED
