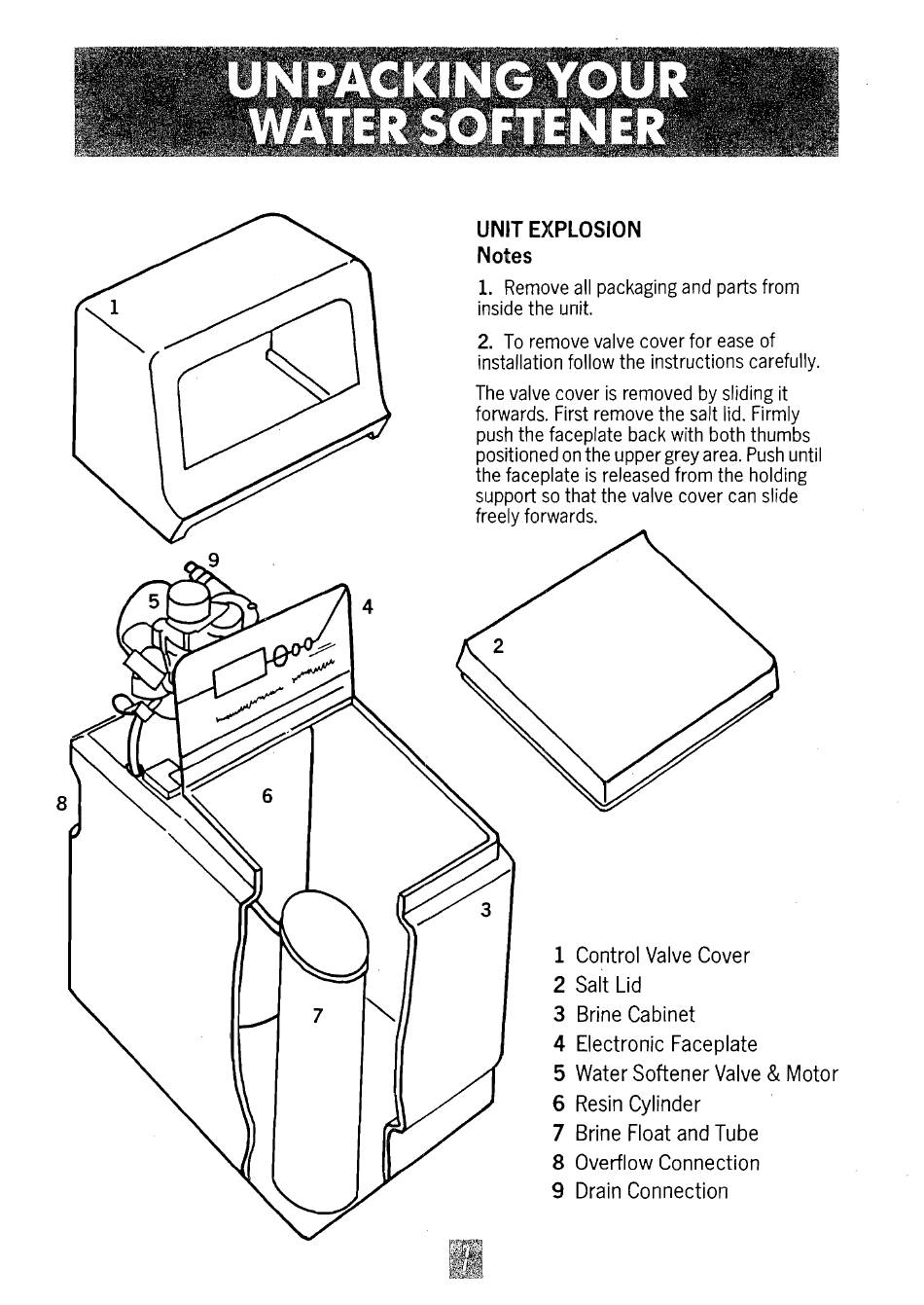

UNIT EXPLOSION
1. Remove all packaging and parts from
inside the unit.
2. To remove valve cover for ease of
installa tion follow the instructions carefully.
The valve cover is renioved by sliding it
forwards. First remove the salt lid. Firmly
push the faceplate back with both thumbs
positioned on the upper grey area. Push until
the faceplate is released from the holding
support so that the valve cover can slide
freely forwards.
8
1 Control Valve Cover
3 Brine Cabinet
4 Electronic Faceplate
5
Water Softener Valve & Motor
6 Resin Cylinder
7
Brine Float and Tube
8 Overflow Connection
9 Drain C o r ~ n e c t i o ~ ~
