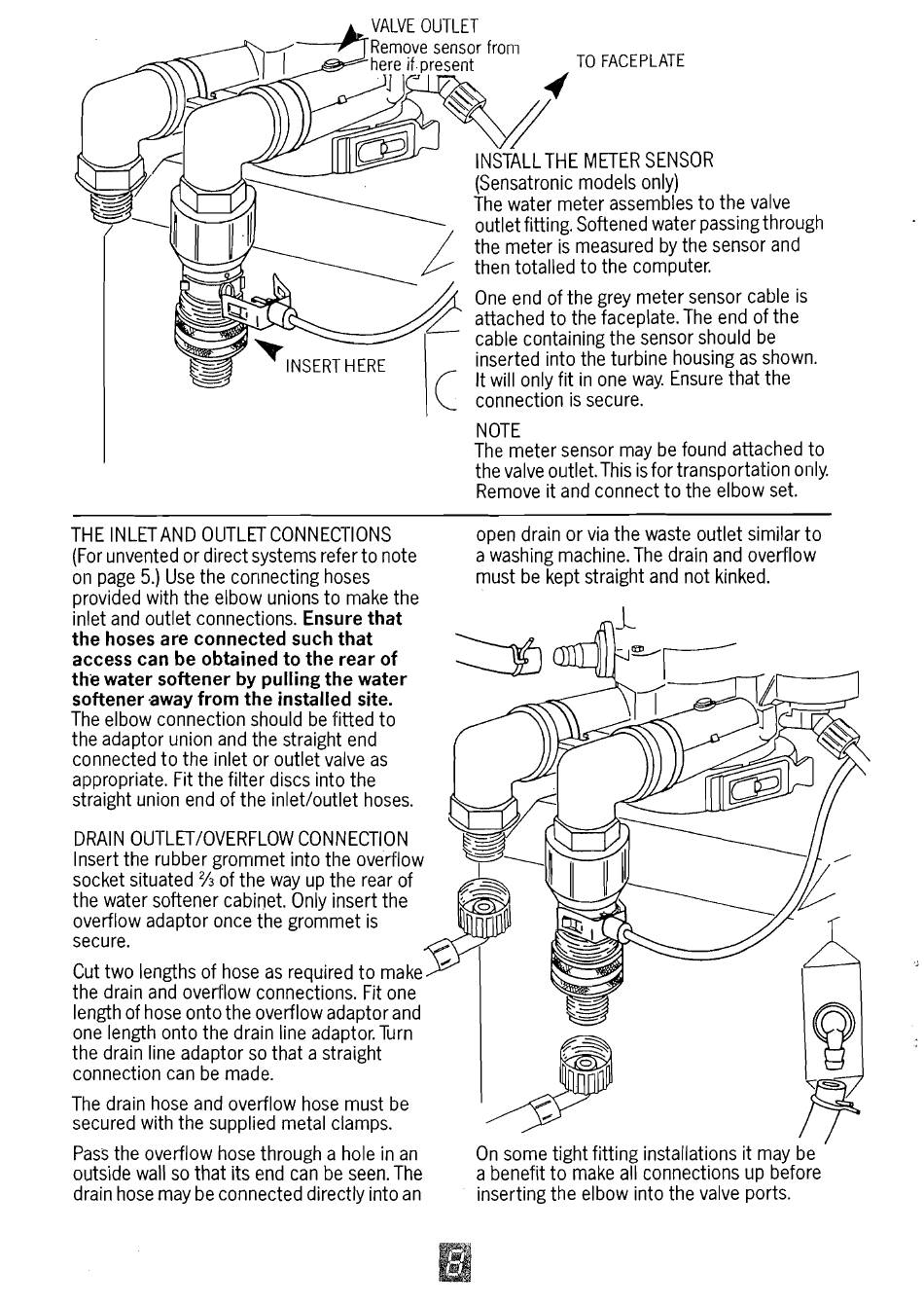

EcoWater Timetronic 314 User/Installer Handbook page 10

Remove sensor from
TO FACEPLATE
HE METER SEIUSOR
(Sensatronic models only)
The water meter assembles t o the valve
outlet fitting. Softened water passing through
the meter is measured by the sensor and
then totalled t o the computer.
One end of .the grey nieter sensor cable is
attached to the faceplate. The end of the
cable containing the sensor should be
inserted into the turbine housing as shown.
f
It will only fit in one way. Ensure that the
I
\
connection is secure.
NOTE
The meter sensor may be found attached to
the valve outlet.This is for transportation 01-~ly.
Remove it and connect t o the elbow set.
THE INLET AND OUTLET CONNEC-[IONS open drain or via the waste outlet similar t o
(For unvented or direct systems refer to note a washing machine. The drain and overllow
on page
5.)
Use the connecting hoses must be kept straight and not kinked.
provided with the elbow unions t o make the
inlet and outlet connections. Ensure that
the hoses are connected such that
access can be obtained to the rear of
a
the water softener by pulling the water
softener -away from the installed site.
The elbow connection should be fitted t o
the adaptor union and the straight end
connected t o the inlet or outlet valve as
appropriate. Fit the filter discs into the
straight union end of the inlet/outlet hoses.
DRAIN OUTLET/OVERFLOW CONNECTION
Insert the rubber grommet into the overflow
socket situated % of the way up the rear of
the water softener cabinet. Only insert the
overflow adaptor once the grommet is
secure.
Cut two lengths of hose as required t o make
the drain and overflow connections. Fit one
length of hose onto the overflow adaptor and
one length onto the drain line adaptor. Turn
the drain line adaptor so that a straight
connection can be made.
The drain hose and overflow hose must be
secured with the supplied metal clamps.
Pass the overflow hose through a hole in an On some tight fitting installations it may be
'
ol~tside wall so that its end can be seen. The a benefit t o make all connections up before
drain hose may be connected directly into an inserting the elbow into the valve ports.
