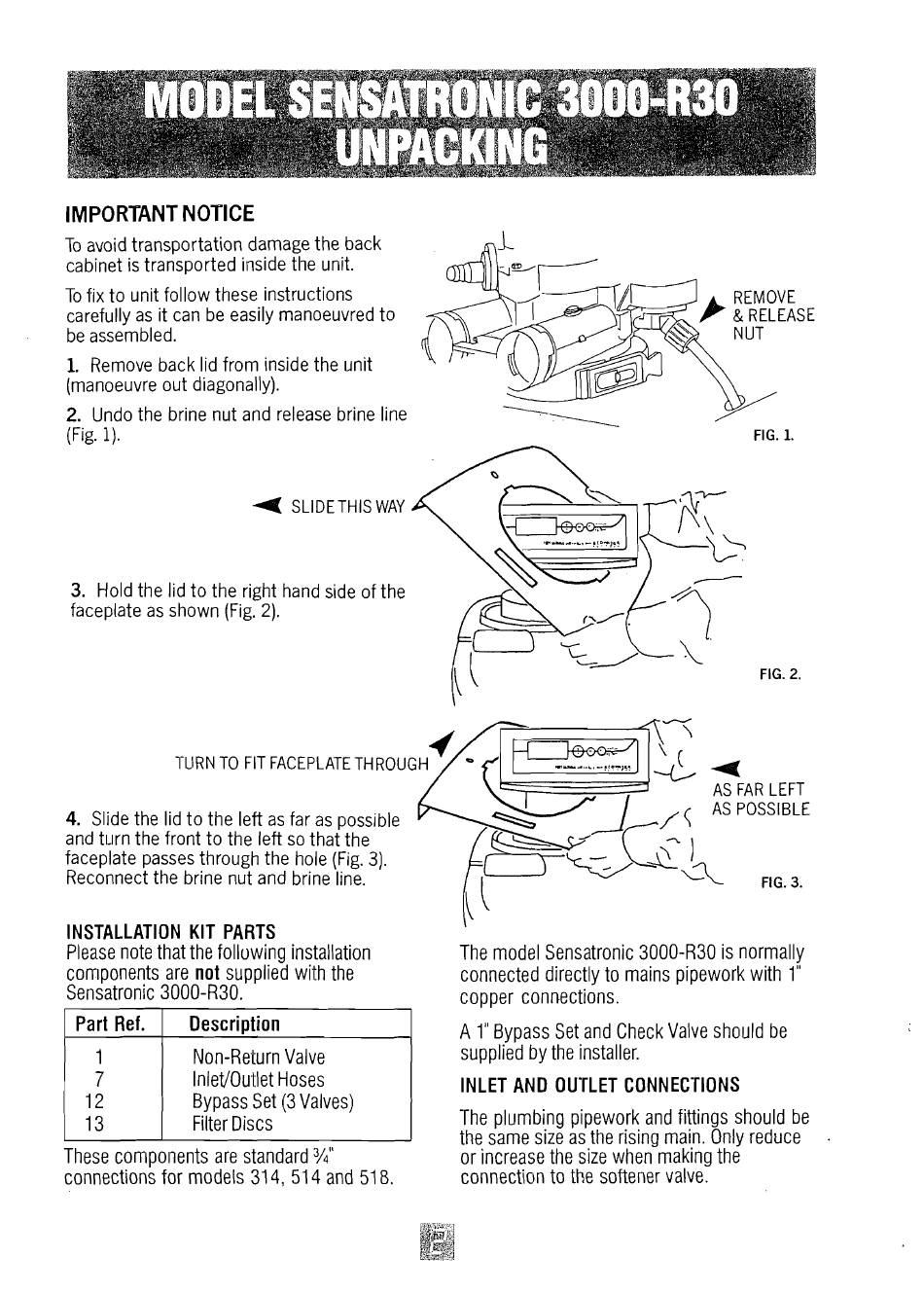

IMPORTANT NOTICE
To avoid transportation damage the back
cabinet is transported inside tlie unit.
To fix t o unit follow these instructions
carefully as it can be easily manoeuvred t o
be assembled.
1 . Remove back lid from inside the unit
(manoeuvre out diagonally).
2. Undo the brine nut and release brine line
(Fig. 1).
4
SLIDETHIS WAY
3. Hold the lid t o the right hand side of the
faceplate as shown (Fig. 2).
TLIRN TO FIT FACEPLATE THROl
4. Slide the lid t o the left as far as possible
and turn the front t o the left so that the
faceplate passes through the hole (Fig. 3).
Reconnect the brine nut and brine line.
-
FIG. 1 .
FIG. 2.
AS FAR LEFT
AS POSSIBLE
FIG. 3.
INSTALLATION KIT PARTS
Please note that the following installation The model Sensatronic 3000-R30 is normally
corr~ponents are not supplied with the
connected directly to mains pipework with 1"
Sensatronic 3000-R30. copper connections.
1
Part Ref.
1
7
12
13
A 1" Bypass Set and Check Valve s h c ~ ~ ~ l d
be
supplied by the installer.
Description
Non-Return Va.lve
Inlet/Oul:let Hoses
Bypass Set (3 Valves)
Filter Discs
I
INLET AND OUTLET CONNECTIONS
The pl~lmbing pipework and fittings should be
I
; h e same size as the rising main.
Only
reduce
These corr~po~ients are standard
34"
or increase the size when making the
connections for models 31 4, 51 4 and 51
8.
connection to the softener valve.
