Summary of Contents for EcoWater Atlas 9

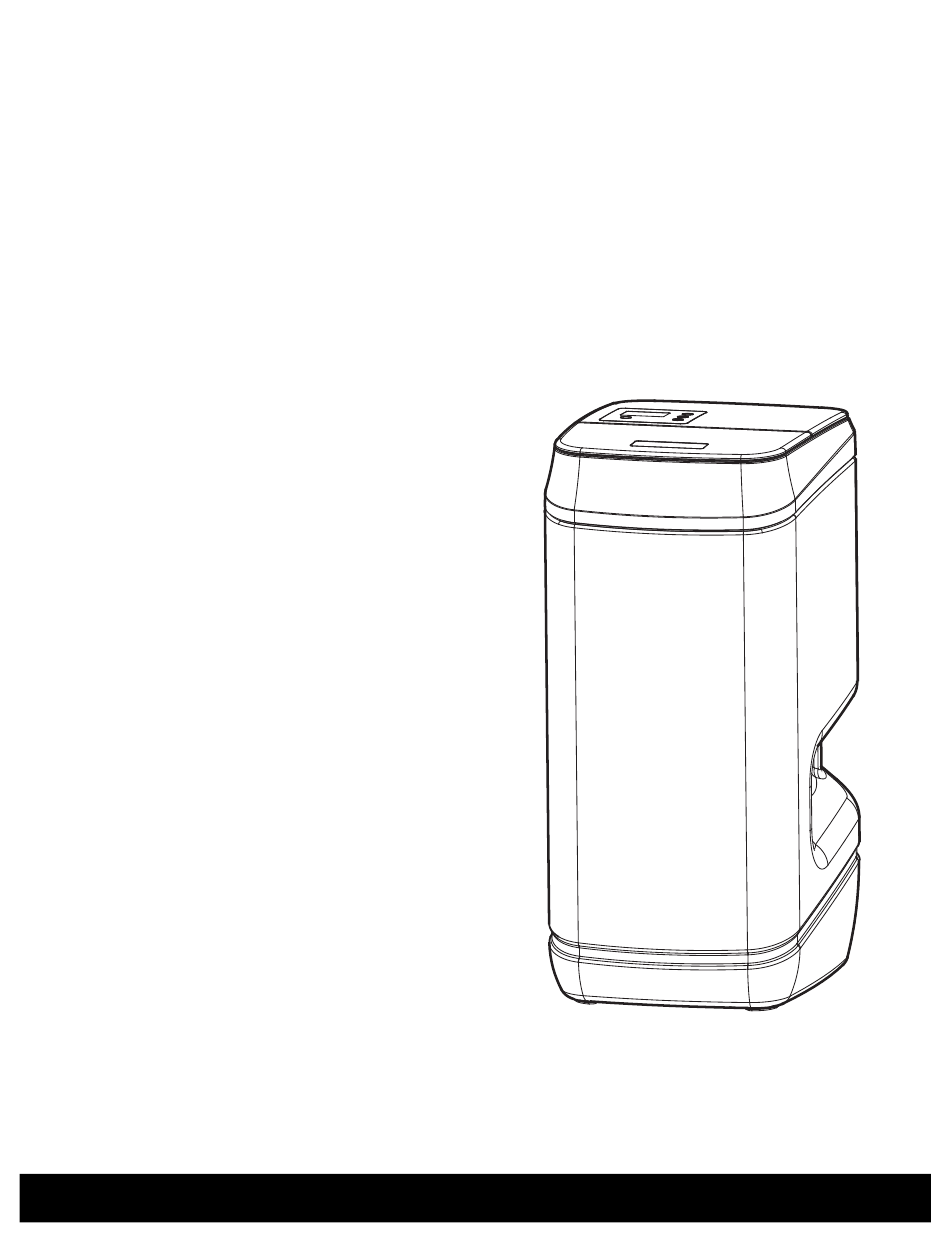

- Page 1 OWNER’S MANUAL How to install, operate and maintain your Atlas Water Softener Models Atlas 9 Atlas 15 Atlas 20 (Rev. 12/23/08)
-
Page 2: Water Softener Dimensions
Water Softener Specifications Atlas 9 Atlas 15 Atlas 20 Model Code EL 9 EL15 EL20 1.36 0.27 4.72 0.68 6.80 1.13 Rated Softening Capacity (mol @ kg. salt dose) 4.60 2.27 10.81 3.63 17.22 5.08 Rated Efficiency (mol/kg. of salt at min. salt dose) 4.99... -
Page 3: Installation
Installation THE PROPER ORDER TO INSTALL WATER TREATMENT EQUIPMENT Untreated Water to City Water Supply Outside Faucets Cold Water to House Hot Water Pressure Optional to House Tank Sediment Filter Well Water Supply Water Water Softener Heater Well Pump FIG. 1 REQUIREMENTS Always install either a single bypass valve (See SINGLE BYPASS VALVE... -
Page 4: Typical Installation
Installation TYPICAL INSTALLATION To Outside Faucets SOFT HARD WATER WATER 230 V, 50 Hz 1” BSP Outlet Flexible Clips Hose Bypass Valve Bypass Valve To electronic controller Valve Drain Hose Valve Brine Tank Inlet Overflow Hose 4 cm Tie or wire drain air gap FIG. - Page 5 9. ADD WATER TO THE BRINE TANK continued from previous page Using a pail or garden hose, add about 10 liters of water c. CPVC PLASTIC PIPE into the brine tank. (1) Clean, prime and cement all joints, following the manufac- turer's instructions supplied with the plastic pipe and fittings.
-
Page 6: Programming The Water Softener
Model Code number (example: J1.1), begin to flash in the faceplate display (See Figure 6). Then, “12:00” and the words “PRESENT TIME" begin to flash. Atlas 9 EL 9 Atlas 15 EL15 NOTE: If “- - - -” shows in the display, press the... -
Page 7: Set Water Hardness Number
Programming the Water Softener B. SET WATER HARDNESS NUMBER If you completed the previous step, the word “HARDNESS" should show in the display (See Figure 8). Otherwise, press the SELECT button several times until it does. 1. Press the UP or DOWN buttons to set the hardness of your water supply, in German degrees (°dH). -
Page 8: Recharge Now
Water Softener Features / Options RECHARGE NOW If you have guests, or during other times of higher-than-normal water use, you could run out of softened water before the softener’s next scheduled recharge. If this occurs, do the following to start an immediate recharge cycle: 1. - Page 9 Water Softener Features / Options SET CAPACITY The electronic control calculates this number, based on the initial programming. If you want to change the capacity, do the following: 1. Press and hold the SELECT button to display the screen shown in Figure 15. 2.
-
Page 10: Routine Maintenance
Routine Maintenance ADDING SALT CLEANING THE NOZZLE & VENTURI Lift the salt hole cover and check the salt storage level A clean nozzle & venturi (See Figure 19) is a necessity frequently. If the water softener uses all the salt before for the water softener to work properly. -
Page 11: Troubleshooting Guide
Troubleshooting TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION No soft water No salt in the storage tank. Add salt (See Page 9) and then initiate a “Recharge now,” as shown on Page 7. Salt is “bridged.” Break salt bridge (See Page 9) and then initiate a “Recharge now,”... -
Page 12: Automatic Electronic Diagnostics
Troubleshooting AUTOMATIC ELECTRONIC DIAGNOSTICS This water softener has a self-diagnostic function for the electrical system (except input power). The water softener monitors electronic components and circuits for correct operation. If a malfunction occurs, an error code appears in the display. The troubleshooting chart shows the error codes that could appear, and the possible malfunctions for each code. - Page 13 Softener Exploded View Valve Assembly See Pages 14 & 15 for parts...
- Page 14 7077870 Top Distributor 7105047 Repl. Bottom Distributor 7268950 Repl. Resin Tank, 22.9 x 35.6 cm, Model Atlas 9 7264037 Repl. Resin Tank, 20.3 x 63.5 cm, Model Atlas 15 7114787 Repl. Resin Tank, 20.3 x 88.9 cm, Model Atlas 20...
-
Page 15: Valve Exploded View
Valve Exploded View Wear Strip Seal Cross Section View... -
Page 16: Valve Parts List
Seal, Nozzle & Venturi 7133498 O-Ring, 23.8 x 30.2 mm (2 req.) Repl. Nozzle, Venturi & Gasket Kit, 7298549 7092642 Plug, Drain Seal Model Atlas 9 7129889 Spring Repl. Nozzle, Venturi & Gasket Kit, 7290957 Models Atlas 15 & Atlas 20 7082053 Valve Body O-Ring, 6.4 x 9.5 mm, (2 req.)
