7. GETTING TO KNOW YOUR SPA POOL

ARCTIC SPA POOL OVERVIEW

Components:
Spa Pool Controller
Topside Control Panel
Heater Element
Pumps
Skimmer/Filter Type
Sanitizers
Electrical Info
Cable
Hardwire Required:
This spa pool requires direct hardwiring from the circuit board to the system
controller with suitable electrical cable.

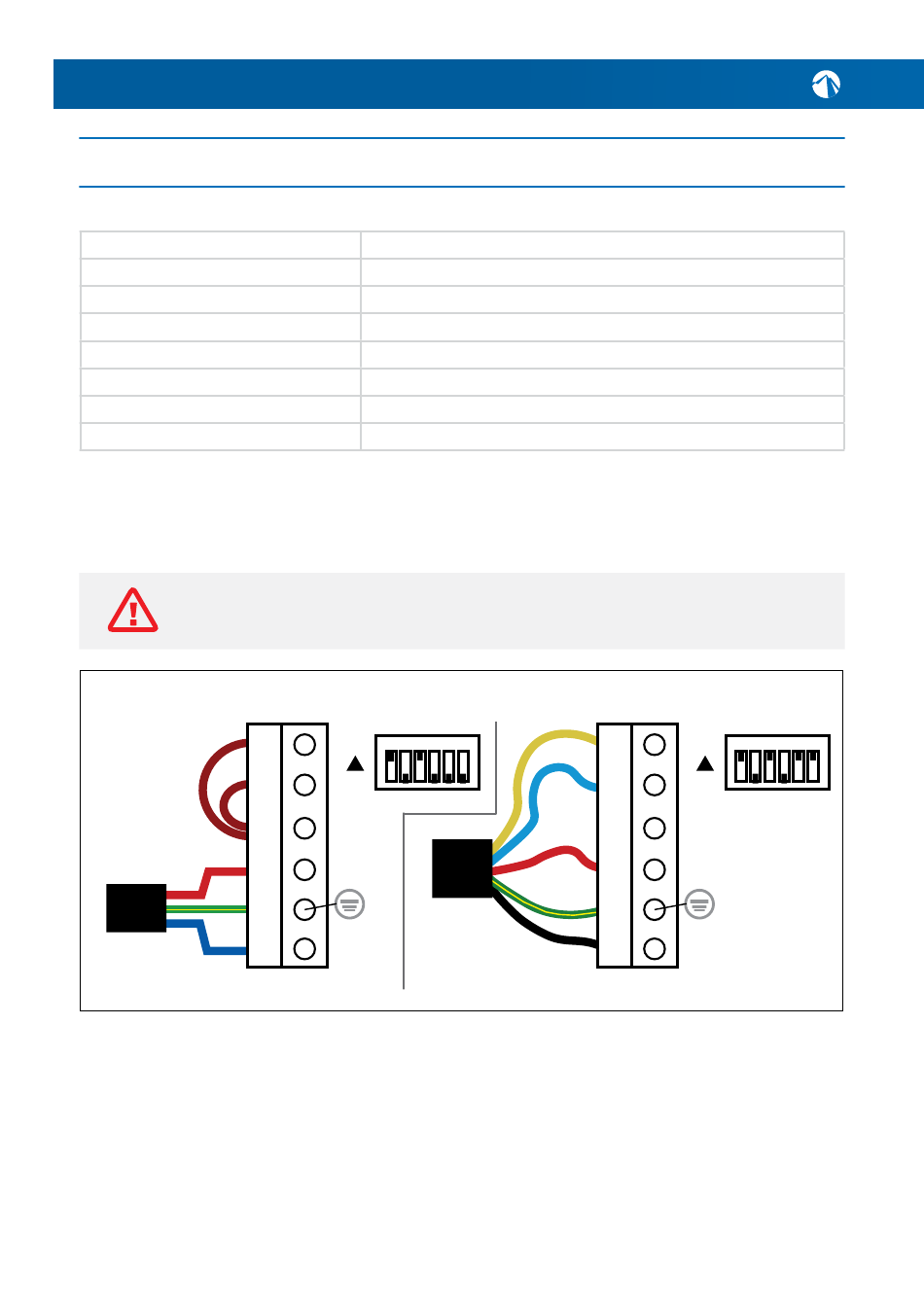

BELOW DIAGRAMS ARE FOR 32A - 45A CONNECTIONS.
DIP SWITCHES ARE PRESET FOR SINGLE PHASE.
SINGLE PHASE
A 32amp connection will require load shed/limiting for the components as they
cannot all run simultaneously. See the SpaNet user guide for more information.
A 45amp connection provides power for all components to run.
Locating the Controller
Remove the cabinet panels from the side of the spa that houses the controller (see
following picture for exact location).
66
SpaNet SV3-VH
SpaNet SV3-VH
6KW (Variable)
1x Circulation Pump + 3x Jet Massage Pump (3HP) + Air Blower
2x Floating Weir Filter
Ozone, Ultra-Violet
32amps - 45amps. 230 - 240V AC 50hz IPX5
No Cable - Hardwiring Required.
DO NOT POWER THE SPA BEFORE IT HAS BEEN FILLED
P3
S1
ON
P2
DIP SWITCHES
CS
P1
G
N
P3
S6
P2
CS
P1
G
N
THREE PHASE
S1 S6
ON
DIP SWITCHES
