HIMALAYA PLATINUM - ELECTRICAL INSTALLATION

OVERVIEW

ANY ELECTRICAL WIRING WORK MUST BE PERFORMED BY A LICENSED ELECTRICIAN.
The Himalaya Platinum uses two seperate controllers, one for each 'zone':
Swim Zone - SpaNet SV3 (32A or 45A)
Spa Zone - SpaNet SV-SMART (15A or 25A)
X
Spa Zone
Swim Zone
X

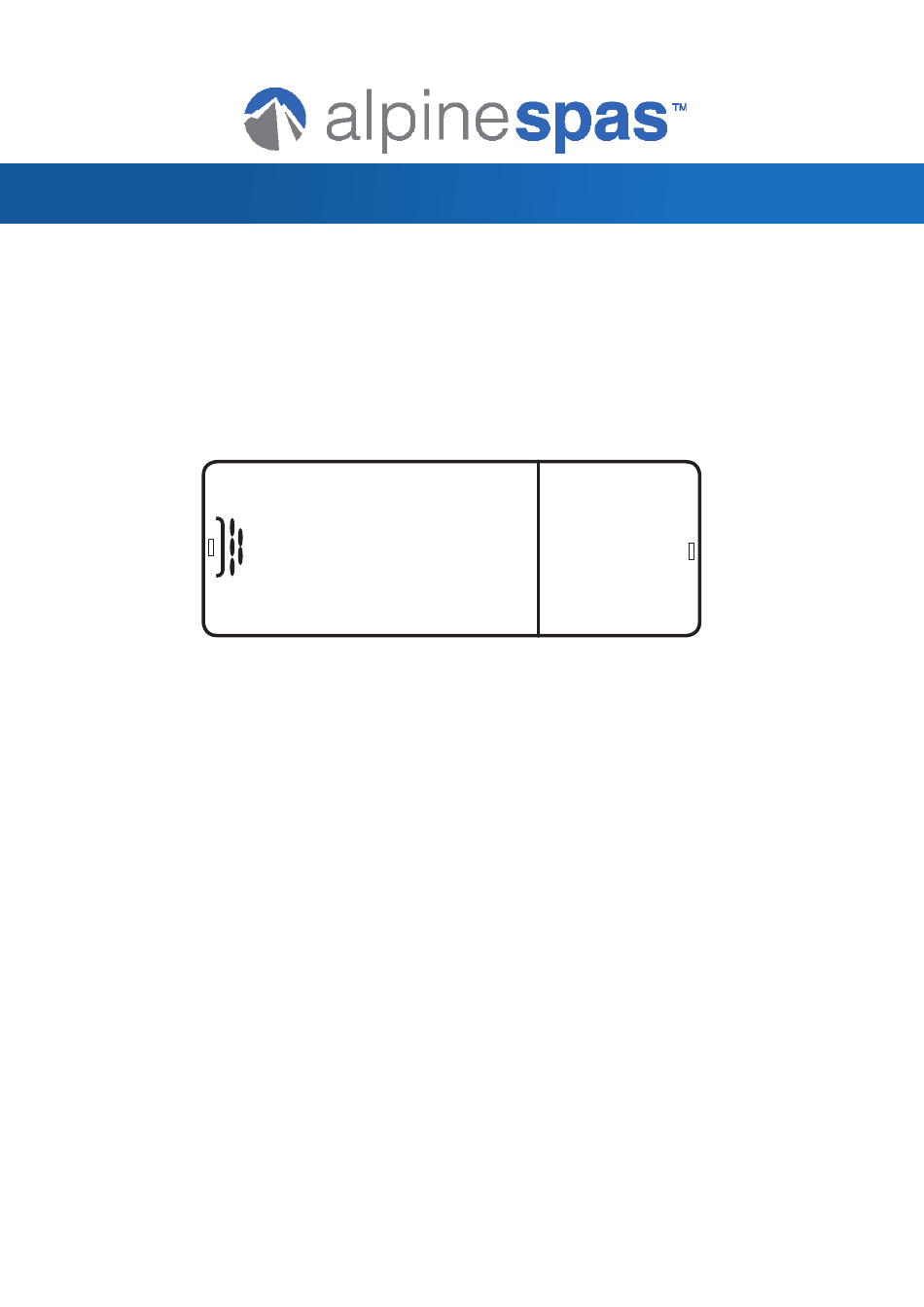

Birds eye view - controllers marked by 'X'
The two controllers should be supplied by seperate feeds where possible
with seperate isolation switches. This will give the user the ability to disable a
zone individually (e.g drain the spa zone over summer but keep the swim zone
functioning).
The Himalaya Platinum can be setup in different ways depending on how much
power supply is available and also if a heat pump is being used.
The Swim Spa may seem like it requires a lot of power (32A + 15A), however
the Swim Zone will only draw 32A when powering all three swim pumps. On
standby/heating, the Swim Zone will only draw a maximum of 25A, or less than
15A if equipped with a heat pump.
Both controllers can be setup in different ways depending on how much power
supply is available and also if a heat pump is being used. See available setups
on the following page for the list to choose from.
Contact our Technical department for assistance if required - 0800 99 33 88
