7. GETTING TO KNOW YOUR SPA POOL

YUKON SPA POOL OVERVIEW

Components:
Spa Pool Controller
Topside Control Panel
Heater Element
Pumps
Skimmer/Filter Type
Sanitizers
Electrical Info
Cable
Cable & Wiring:
This 15amp spa pool includes a 4.5metre 15amp power cable that has been
pre-connected and installed onto the system controller.

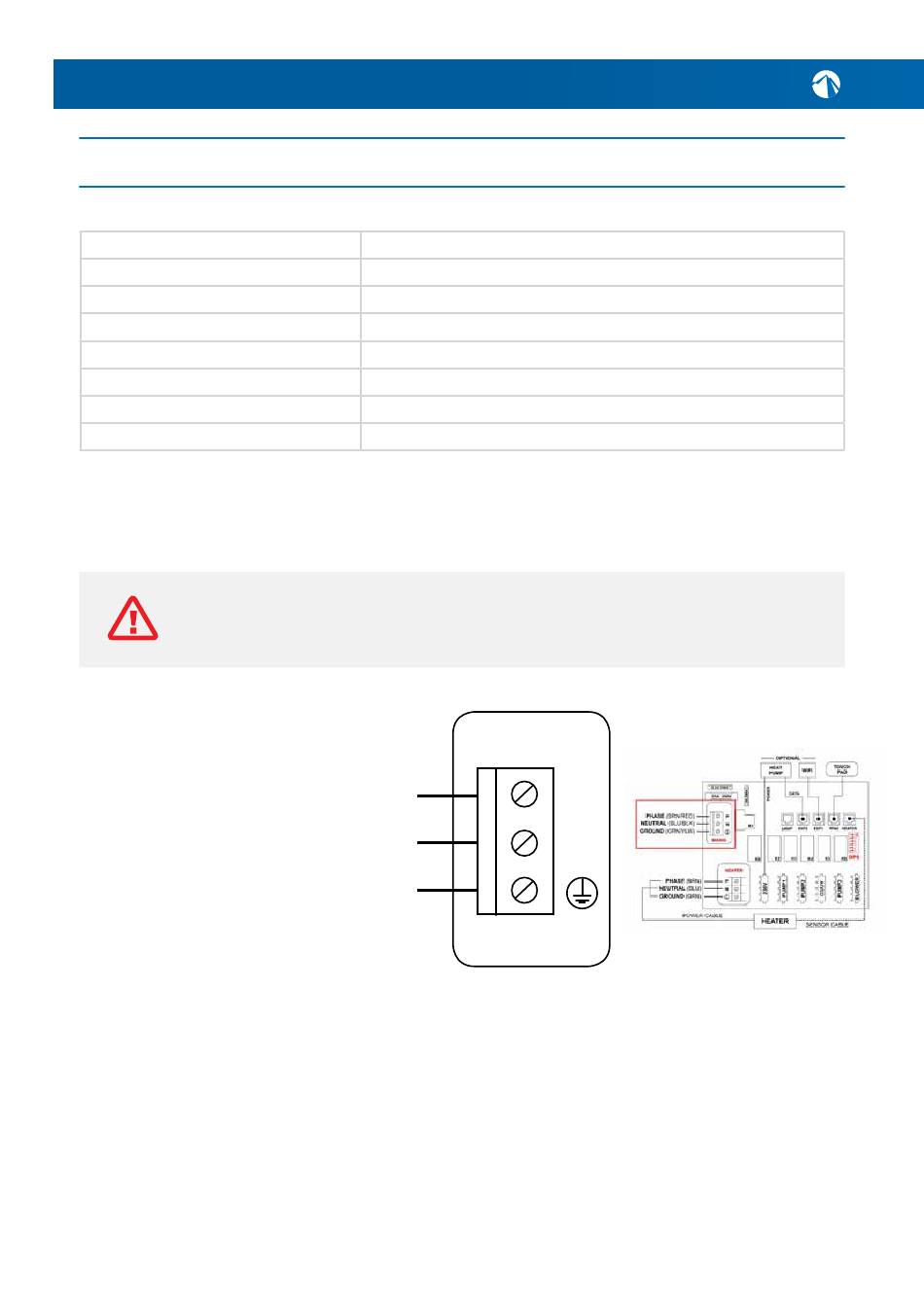

BELOW DIAGRAM IS FOR SINGLE PHASE 15A AND IS ONLY
REQUIRED IF DISCONNECTING & RECONNECTING CABLE.
DIP SWITCHES DO NOT NEED ALTERING.
DO NOT POWER THE SPA POOL BEFORE IT HAS BEEN FILLED
PHASE (BRN/RED)
NEUTRAL (BLU/BLK)
GROUND (GRN/YLW)
To setup for high amp (25A, no load shed*) see page 15 for information.
Locating the Controller & Cable
Remove the cabinet panels from the side of the spa pool that houses the system
controller (see following page for exact location). Inside you will find the cable
coiled up.
40
SpaNet SV-SMART
SpaNet SV-SMART
3KW
1x Circulation Pump + 1x Jet Massage Pump (3HP)
Singular Grate Filter
Ozone
15amps 230 - 240V AC 50hz IPX5
15amp Cable Pre-Connected
MAINS
P
N
