Setting Up a 15A Model:

A 15A spa pool requires a 15A socket and residual current device
(RCD) for the default setup.
By default these spa pools will NOT draw more than 15A at any one time. This is
the default factory setup which disables the heater when the pumps (jets) are
turned on*.
A 15amp cable with 3-pin plug has been pre-wired to the spa pool's system
controller and can be found coiled up inside the cabinet. To find out which cabinet
to remove, see your spa pool's corresponding tech info/wiring page (using the
table on the previous page).
The cable can be exited through the cabinet wall (a cable
grommet is supplied in the iPack). A drill with a 60mm
hole-saw attachment will provide the right size for the
grommet.
*NOTE:
Customers generally prefer the default 15A factory setting, however it is possible
to wire a dedicated 25A electrical feed for both the heater and pump to run simultaneously.
A guide for your electrician can be downloaded from our support page.

Setting Up a 25A/32A/45A Model:

A 25A/32A/45A spa pool requires a dedicated feed from your circuit
board and appropriate Residual Current Device & Isolation switch.
An electrician is required to setup and connect the appropriate wiring. To locate
the system controller, see your spa pool's corresponding tech info/wiring page
(using the table on the previous page).
The cable should be fed through the cabinet wall (a cable grommet is supplied
in the iPack should you wish to use this) and a drill with a 60mm hole-saw
attachment will provide the right size for the grommet (see above image).
Alternatively, a tighter fit can be achieved without the grommet by just using a drill
bit the same size as the flex diameter and drilling through the cabinet wall.
If a 45A connection cannot be achieved, load shedding/limiting can be applied to
restrict the total amp drawn by the spa pool, allowing you to feed 25 - 32A.
Information for load shed & changing 15A to 25A can be downloaded
from our support page at: http://alpinespas.co.nz/support/

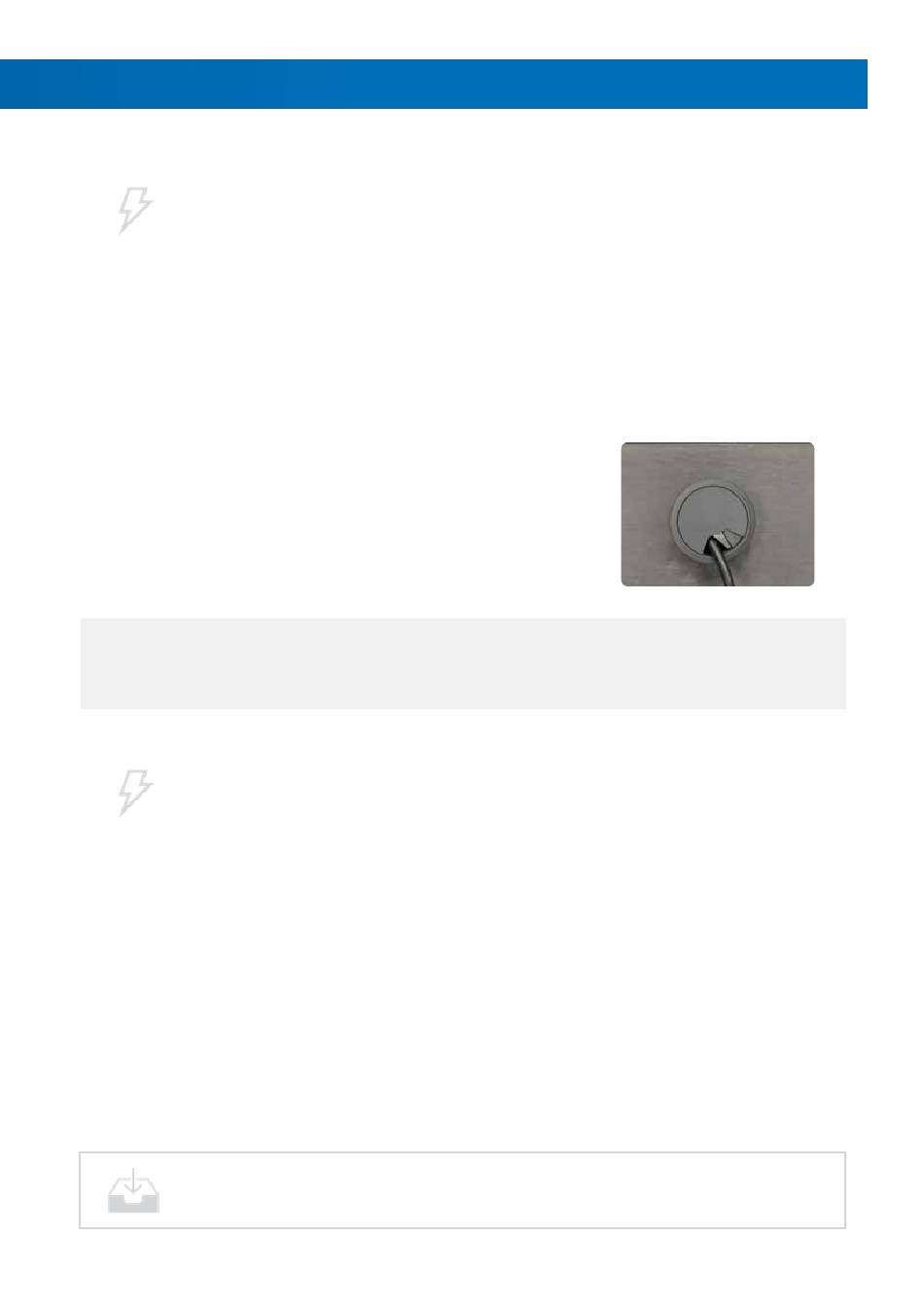

Cable grommet after installation
