4. INSTALLATION INSTRUCTIONS

ELECTRICAL WIRING / POWERING UP

ANY ELECTRICAL WIRING WORK MUST BE PERFORMED
BY A LICENSED ELECTRICIAN.

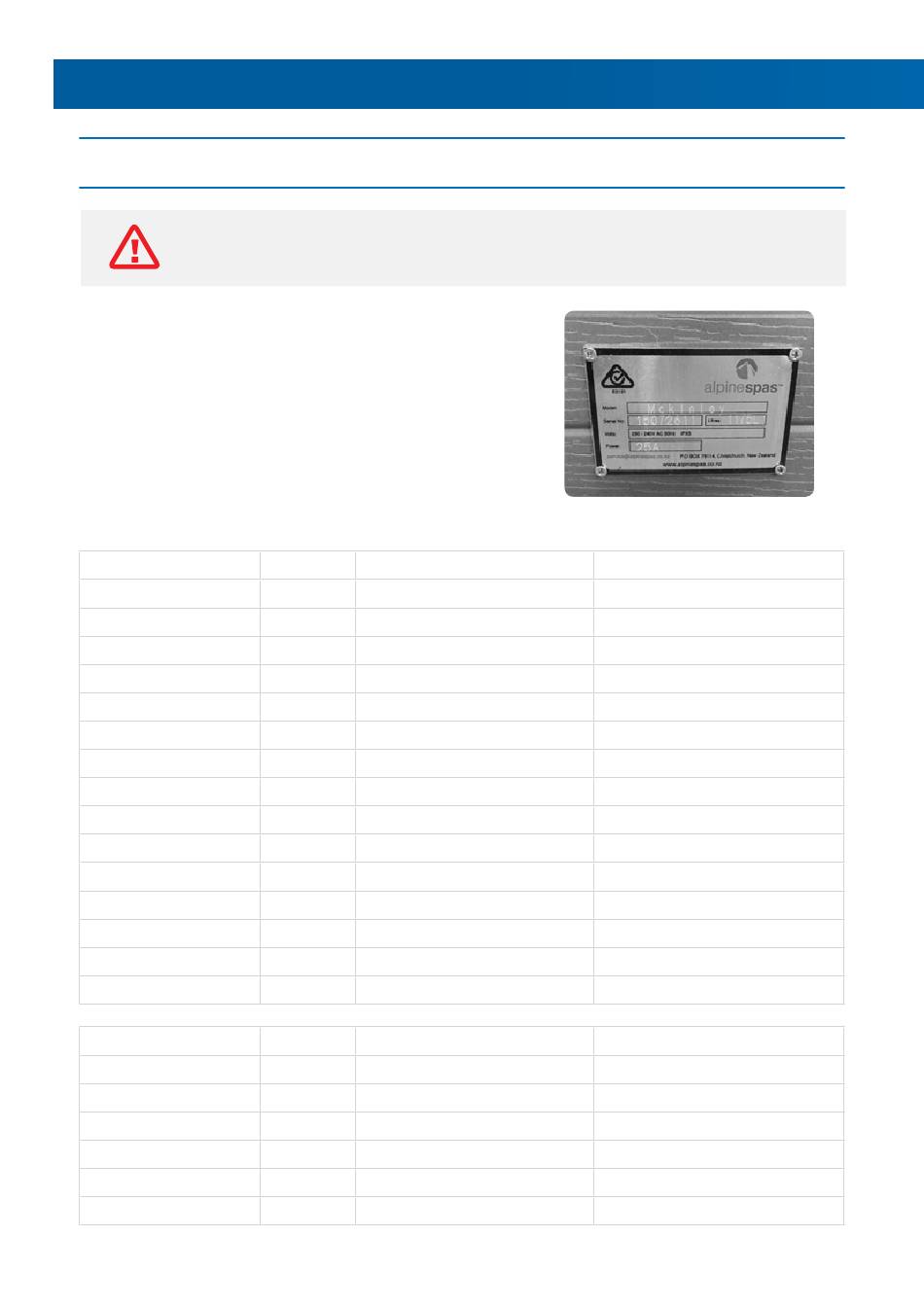

How to Check The Model of Your Spa Pool:
The model name is imprinted on a silver plaque,
usually located along the bottom edge of the spa
pool cabinet. Check around the whole perimeter
of the spa pool to locate.
Electrical Information for Standard Series and Platinum Models:
MODEL
DUO
NOVA
MONT BLANC
WHISTLER
BLACKBURN
YUKON
MAKALU
SUMMIT
MATTERHORN
LUCANIA
MCKINLEY
VANCOUVER
MUNRO
EVEREST
K2
CUB
FRONTIER
OASIS
ARCTIC
GLACIER
X80 (Entertainer)
X90 (Entertainer)
14
AMP CABLE/PLUG
15A 15A CABLE INCLUDED
15A 15A CABLE INCLUDED
15A 15A CABLE INCLUDED
15A 15A CABLE INCLUDED
15A 15A CABLE INCLUDED
15A 15A CABLE INCLUDED
15A 15A CABLE INCLUDED
15A 15A CABLE INCLUDED
15A 15A CABLE INCLUDED
15A 15A CABLE INCLUDED
25A HARDWIRE REQUIRED
25A HARDWIRE REQUIRED
25A HARDWIRE REQUIRED
25A HARDWIRE REQUIRED
25A HARDWIRE REQUIRED
32A HARDWIRE REQUIRED
32A HARDWIRE REQUIRED
45A* HARDWIRE REQUIRED
45A* HARDWIRE REQUIRED
45A* HARDWIRE REQUIRED
45A* HARDWIRE REQUIRED
45A* HARDWIRE REQUIRED
Silver Plaque
TECH INFO / WIRING
See Page 30
See Page 32
See Page 34
See Page 36
See Page 38
See Page 40
See Page 42
See Page 44
See Page 46
See Page 48
See Page 50
See Page 52
See Page 54
See Page 56
See Page 58
See Page 60
See Page 62
See Page 64
See Page 66
See Page 68
See Page 70
See Page 72
