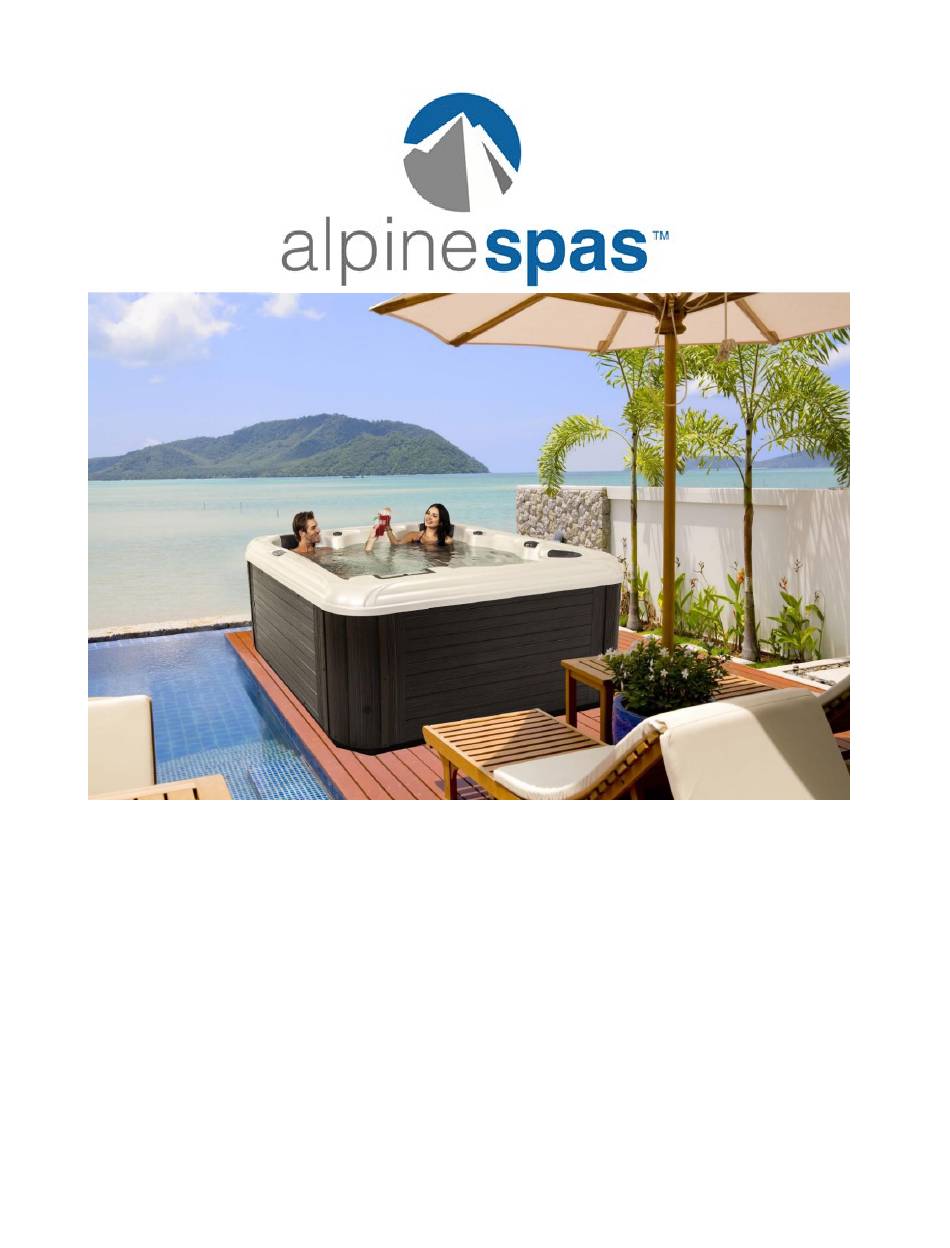

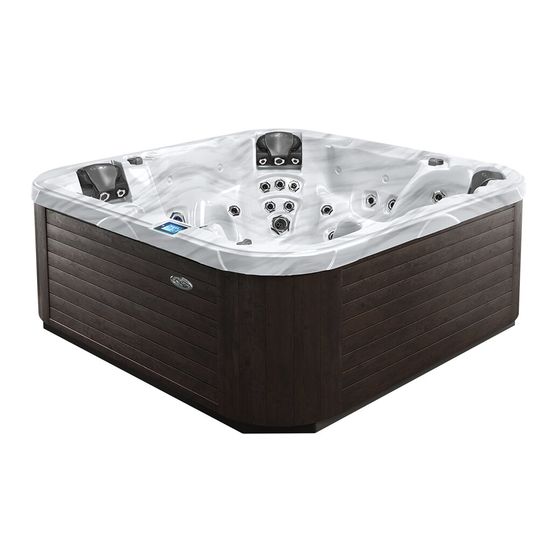

  • Page 1 735L HAWAII OWNER’S MANUAL...

  • Page 3: Table Of Contents

    Table of Contents IMPORTANT SAFETY INSTRUCTIONS ............ 4 Important Safety Instructions ..................6 ELECTRICAL REQUIREMENTS ..............8 Electrical Wiring......................9 SPA START-UP ..................10 Installation Guide......................10 Selecting a Location ....................10 Outdoor Spa Installation Guidelines ................ 12 Indoor Spa Installation Guidelines ................13 Filling the Spa with Water ...................

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS PLEASE TAKE THE TIME TO READ ALL OF THESE WARNINGS AND CAUTIONS PRIOR TO USING THE SPA. PLEASE, be a responsible spa owner. When installing and using this spa, always adhere to basic safety precautions. Be certain to explain safety precautions to all new or occasional users of the spa.
  • Page 5 WARNING – To reduce the risk of injury: • The water in a spa should never exceed 104 F (40 C). Water temperatures between 100 F (38 C) and 104 F (40 C) are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.
  • Page 6 Important Safety Instructions WARNING! Read and follow all instructions in this owner’s manual and on the equipment. Failure to follow instructions can cause severe injury and/or death. WARNING SUCTION ENTRAPMENT HAZARD Suction in suction outlets and/or suction outlet covers which are damaged, broken, cracked, missing, or unsecured can cause severe injury and/or death due to the following entrapment hazards: Hair Entrapment: Hair can become entangled in suction outlet cover.
  • Page 7 Do not use or operate pool, spa, or hot tub if suction fittings are missing, broken or not secured per instructions. The suction fitting is intended to prevent entrapment of the body. Use of the spa hot tub with a missing, broken or improperly secured suction grate may result in serious personal injury including drowning.

  • Page 8: Electrical Requirements

    ELECTRICAL REQUIREMENTS The following information is provided for guidance alone in connecting the electrical power supply to the new spa. A qualified, licensed, electrician must perform this work. Failure to follow these instructions will terminate all warranty coverage and could result in serious injury or death.

  • Page 9: Electrical Wiring

    Electrical Wiring WARNING: The spa must be wired by a certified electrician in accordance with local codes and regulations, as well as with these instructions. Failure to do so will terminate all warranties and invalidate the independent certification company’s mark. The Spa has a 15amp power cable provided, which is attached to the spa controller (behind the front cabinetry).

  • Page 10: Spa Start-Up

    SPA START-UP Installation Guide For more detailed information and tips on positioning and installing, we highly recommend you read through our ‘Pre-Delivery Guide’. The guide was emailed to you upon/after purchase. A copy can be downloaded from our support page: http://alpinespas.co.nz/support/ Please read each step of the Start-up section prior to performing the steps.
  • Page 11 Fixed wiring requires a disconnect device to be incorporated into the wiring in accordance with national, state and local electrical codes and rules. All Alpine spas are manufactured and tested to all required codes and standards providing maximum protection against electrical shock.

  • Page 12: Outdoor Spa Installation Guidelines

    Outdoor Spa Installation Guidelines WARNING: To prevent serious damage to the spa, support surfaces, support structures and/or injury, it is important that the spa foundation be supported by a stable and consistent subsurface. Spa placement must take into consideration national, state and local building, electrical, plumbing and safety codes, as well as local environmental and geotechnical conditions.

  • Page 13: Indoor Spa Installation Guidelines

    Indoor Spa Installation Guidelines Spa placement must take into consideration national, state and local building, electrical and plumbing codes, local geotechnical conditions affecting the structure of the building, indoor environmental conditions, etc. The surrounding floor surface must have sufficient traction to prevent slips and falls when wet. It is recommended that a floor drain and/or catch basin is present to remove water that accumulates in the area with a capacity up to the total volume of the spa model.

  • Page 14: Filling The Spa With Water

    Filling the Spa with Water Perform an inspection of the entire spa prior to filling it with water. Look for and remove any debris in the spa tub and/or in the filter area. Verify that pump plugs are installed on the pumps and all pump unions are tight.

  • Page 15: Powering The Spa On

    Powering the Spa On Turn the power to the spa on at the main circuit breaker. Verify that the spa has no warnings or error messages on the panel display. To verify the circulation system is in good working order, perform the following steps: 1.

  • Page 16: Priming Pumps

    Failure to properly prepare the water can result in substantially decreased life of the components and may void the warranty in severe cases. Please consult Alpine Spas in regards to appropriate start-up and maintenance kits available when purchasing the spa.
  • Page 17 TOPSIDE CONTROLLER INSTRUCTIONS Figure 9. Tropic Seas Spas™ One Pump Topside Controller Face Figure 10. Tropic Seas Spas™ Two Pump Topside Controller Face Figure 11. Tropic Seas Spas™ Three Pump Topside Controller Face...

  • Page 18: Spa Operation

    Menus Navigating the entire menu structure is done with 2 or 3 buttons on the control panel. The Up Arrow (Warm) or Down Arrow (Cool) buttons are: These buttons allow changing the Set temperature while the numbers are flashing in the LCD.
  • Page 19 Priming Mode – M019* This mode will last for 4-5 minutes or you can manually exit the priming mode after the pump(s) have primed. Regardless of whether the priming mode ends automatically or you manually exit the priming mode, the system will automatically return to normal heating and filtering at the end of the priming mode.
  • Page 20 Note that if you do not manually exit the priming mode as described above, the priming mode will be automatically terminated after 4-5 minutes. Be sure that the pump(s) have been primed by this time. Once the system has exited Priming Mode, the top-side panel will momentarily display the set temperature but the display will not show the temperature yet, as shown below.

  • Page 21: Temperature Operation

    Filtration and Ozone On circulation systems, the ozone will run with the circulation pump. The system is factory-programmed with one filter cycle that will run in the evening (assuming the time- of-day is properly set) when energy rates are often lower. The filter time and duration are programmable.

  • Page 22: Modes Of Operation

    Press the Light Button to set the temperature. Modes of Operation Ready Mode Ready Mode will circulate water every 1/2 hour, using Pump 1 Low, in order to maintain a constant water temperature, heat as needed, and refresh the temperature display. This is known as “polling.”...
  • Page 23 Ready-In-Rest Mode Ready/Rest appears in the display, if the spa is in Rest Mode and Jets button is pressed. It is assumed that the spa is being used and will heat to set temperature. While Pump 1 High can be turned on and off, Pump 1 Low will run until set temperature is reached, or 1 hour has passed.
  • Page 24 NOTE: If power is interrupted to the system, Time-of-Day is not stored. The system will still operate and all other user settings will be stored. If filter cycles are required to run at a particular time of day, resetting the clock will return the filter times to the actual programmed periods.
  • Page 25 This Unlock sequence may be used from any screen that may be displayed on a restricted panel. NOTE: The ONLY button that will work in the Unlock Sequence is the UP button. Setting the Filter Cycle Filter cycles are set using a start time and a duration. Start time is indicated by an “A” or “P”...
  • Page 26 Press Up Arrow (Warm) or Down Arrow (Cool) until 8:00 appears. Press Up Arrow (Warm) or Down Arrow (Cool) to toggle HRS in 1 hour increments. Press Light button to switch to minutes. Press Up Arrow (Warm) or Down Arrow (Cool) to toggle minutes in 15 minute increments. Press Light button to set the minutes.

  • Page 27: General Messages

    General Messages Priming Mode – M019 Each time the spa is powered up, it will enter Priming Mode. The purpose of Priming Mode is to allow the user to run each pump and manually verify that the pumps are primed (air is purged) and water is flowing.
  • Page 28 Safety Trip – Pump Suction Blockage – M033 The Safety Trip error message indicates that the vacuum switch has closed. This occurs when there has been a suction problem or a possible entrapment situation avoided. (NOTE: Not all spas have this feature.) The Water Flow is Low –...
  • Page 29 The Heater is Dry – M027 There is not enough water in the heater to start and the spa is shut down. After the problem has been resolved, press any button to reset and restart the heater. Flow-Related Checks Check for low water level, suction flow restriction (filters), closed valves, or trapped air. The Heater is Too Hot –...
  • Page 30 Sensors Are Out of Sync – Call for Service – M026 The temperature sensors ARE out of sync. The Sensor Balance is Poor fault has been established for at least 1 hour. Call for Service. The temperature sensors are out of sync. Call your dealer for service. Sensor A Fault, Senor B Fault –...
  • Page 31 Configuration error (Spa Will not Start) Call your dealer for service. The GFCI test failed (System Could Not Test the GFCI) – M036 (North America Only) May indicate an unsafe installation. Call your dealer for service. A Pump May be Stuck On – M034 Water may be overheated.
  • Page 32 Test Software Installed The Control System is operating with test software. Call your dealer for service. F or C is replaced by T The Control System is in Test Mode. Call your dealer for service. Reminder Messages Not all messages may display. Check the pH May appear on a regular schedule, i.e.
  • Page 33 Change the Water May appear on a regular schedule, i.e. every 90 days. Change the water in the spa on regular basis to maintain proper chemical balance and sanitary conditions. Clean the Cover May appear on a regular schedule, i.e. every 180 days. Vinyl covers should be cleaned and conditioned for maximum life.

  • Page 34: Maintaining The Spa

    MAINTAINING THE SPA Draining the Spa The spa needs to be drained, cleaned, and refilled about every six months. More frequent water changes may be necessary if bather load is heavy. A hose bib has been provided to assist in draining the spa. Figure 9.

  • Page 35: Pillow Care

    Pillow Care Remove and clean the pillows with soapy water and a soft cloth when needed. Use a vinyl conditioner once a month. Remove pillows when doing chemical shock treatment. Jet Care Cleaning the jets when draining the spa is recommended. 1) Spray jet inserts with a mixture of 1 part vinegar to two parts warm water and let soak for 10 15 minutes.

  • Page 36: Removing, Installing And Cleaning Filters

    The filter can be upgraded to a 75 Sq. ft. filter. Please contact Alpine Spas for further information. WARNING: Power to the spa must be turned off prior to removing the filters. The suction at the filter is extremely strong and can cause injury if there is no filter.

  • Page 37: Storing Or Winterizing The Spa

    If you decide to drain the spa during freezing conditions, contact your local authorized dealer for assistance. Contact Alpine Spas before refilling a drained spa in freezing temperatures. WARNING: Damage to the spa caused by freezing is NOT covered under warranty.

  • Page 38: Spa Cover Use, Installation And Care

    Spa Cover Use, Installation and Care The spa cover has tie down straps and locking hardware at each corner to securely fasten the cover to the spa cabinet. Proper cover lock installation instructions are included with the cover to ensure safety compliance. Never stand or sit on the cover while on or off of the spa and never drag it over abrasive surfaces.

  • Page 39: Warranty

    WARRANTY Warranty information can be confirmed on the Alpine Spas website SPA POOL WARRANTY In the unlikely event of a spa fault, we use service agents throughout New Zealand to service and help with troubleshooting support over our 0800 number. For servicing, the spa needs to be positioned in a way allowing access to all panels (you may become liable for additional labour and/or travel costs if this is not met).

  • Page 40: Warranty Exclusions

    Act of God, acts of aggression, by accident, or by intentional, reckless negligent acts of any person. In no event shall Alpine Spas, its agents or employees, be liable for Injury to any person for any claim of damage, however arising.
