7. GETTING TO KNOW YOUR SPA POOL

MUNRO SPA POOL OVERVIEW

Components:
Spa Pool Controller
Topside Control Panel
Heater Element
Pumps
Skimmer/Filter Type
Sanitizers
Electrical Info
Cable
Hardwire Required:
This spa pool requires direct hardwiring from the circuit board to the system
controller with suitable electrical cable.

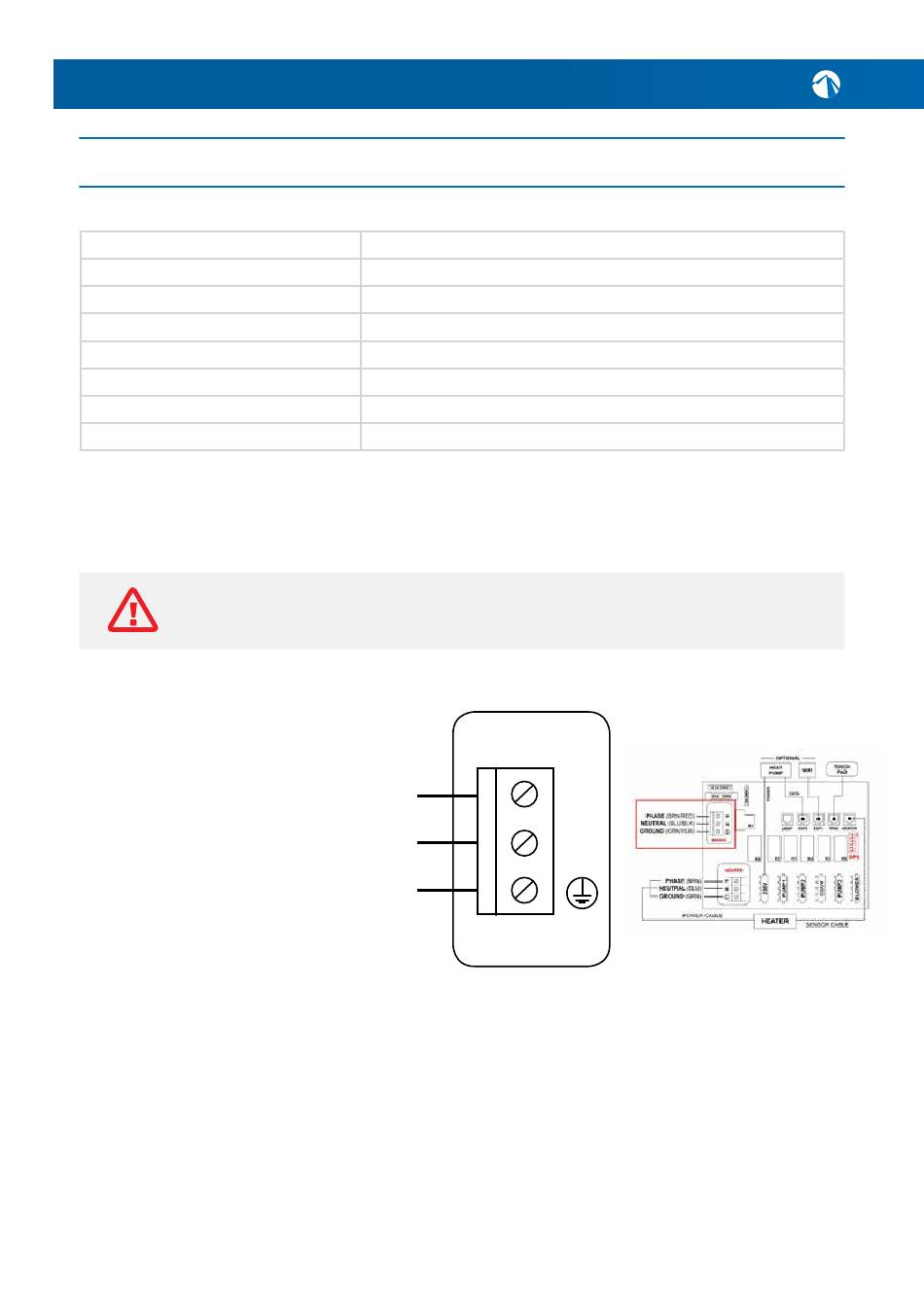

BELOW DIAGRAM IS FOR SINGLE PHASE 25A CONNECTION.
DIP SWITCHES ARE PRESET & SHOULD NOT NEED ALTERING.
DO NOT POWER THE SPA POOL BEFORE IT HAS BEEN FILLED
PHASE (BRN/RED)
NEUTRAL (BLU/BLK)
GROUND (GRN/YLW)
Wiring of a three phase connection is available, contact us for more information.
Locating the Controller
Remove the cabinet panels from the side of the spa pool that houses the controller
(see following picture for exact location).
54
SpaNet SV-SMART
SpaNet SV-SMART
3KW
1x Circulation Pump + 2x Jet Massage Pump (3HP) + Air Blower
Grate Filter
Ozone, Ultra-Violet
25amps 230 - 240V AC 50hz IPX5
No Cable - Hardwiring Required.
MAINS
P
N
