7. GETTING TO KNOW YOUR SPA POOL

K2 SPA POOL OVERVIEW

Components:
Spa Pool Controller
Topside Control Panel
Heater Element
Pumps
Skimmer/Filter Type
Sanitizers
Electrical Info
Cable
Hardwire Required:
This spa pool requires direct hardwiring from the circuit board to the system
controller with suitable electrical cable.

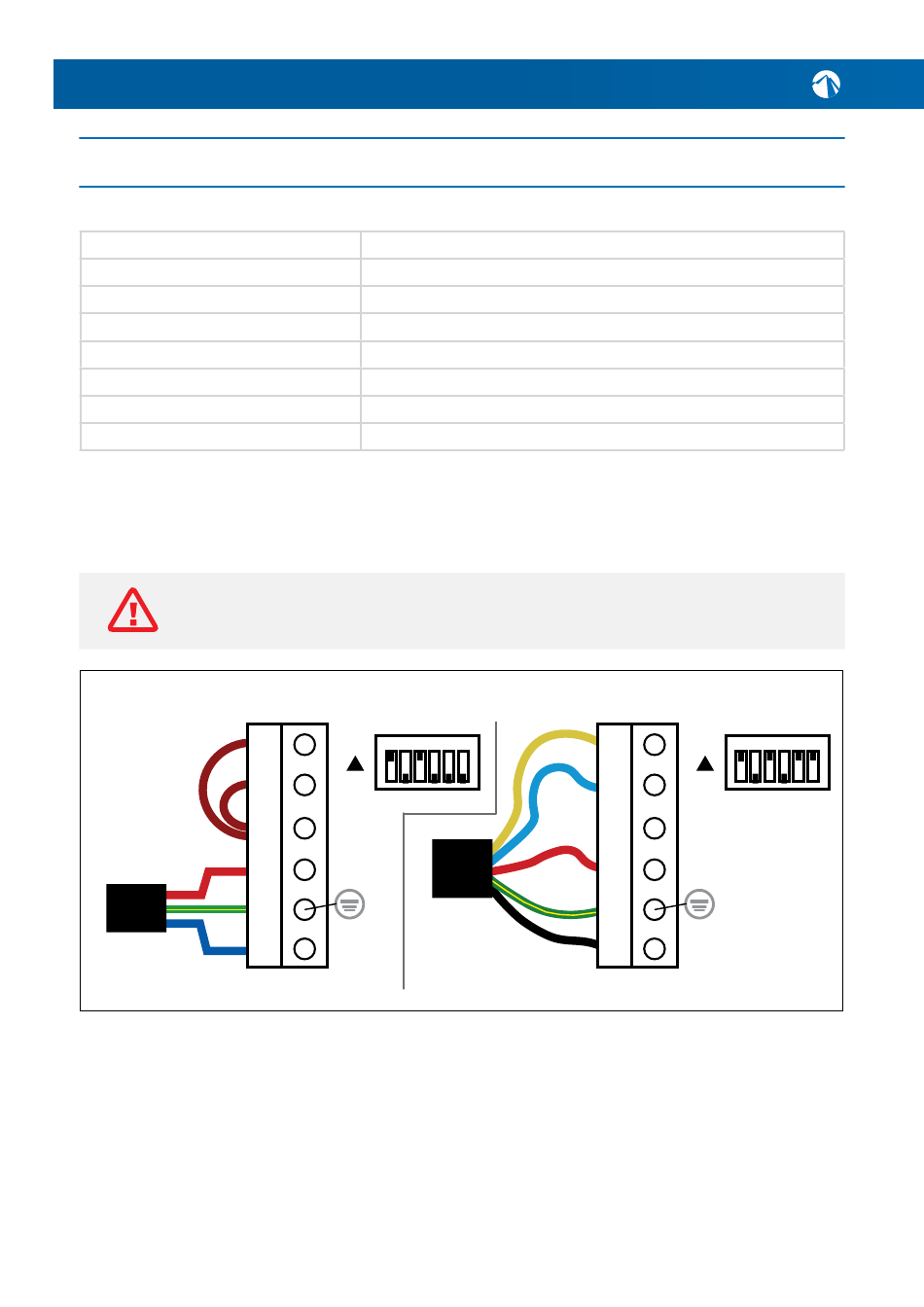

BELOW DIAGRAMS ARE FOR 32A CONNECTIONS.
DIP SWITCHES ARE PRESET FOR SINGLE PHASE.
SINGLE PHASE
Locating the Controller
Remove the cabinet panels from the side of the spa that houses the controller (see
following picture for exact location).
58
SpaNet SV3-VH
SpaNet SV3-VH
6KW (Variable)
1x Circulation Pump + 2x Jet Massage Pump (3HP) + Air Blower
Grate Filter
Ozone, Ultra-Violet
32amps 230 - 240V AC 50hz IPX5
No Cable - Hardwiring Required.
DO NOT POWER THE SPA BEFORE IT HAS BEEN FILLED
P3
S1
ON
P2
DIP SWITCHES
CS
P1
G
N
P3
S6
P2
CS
P1
G
N
THREE PHASE
S1 S6
ON
DIP SWITCHES
