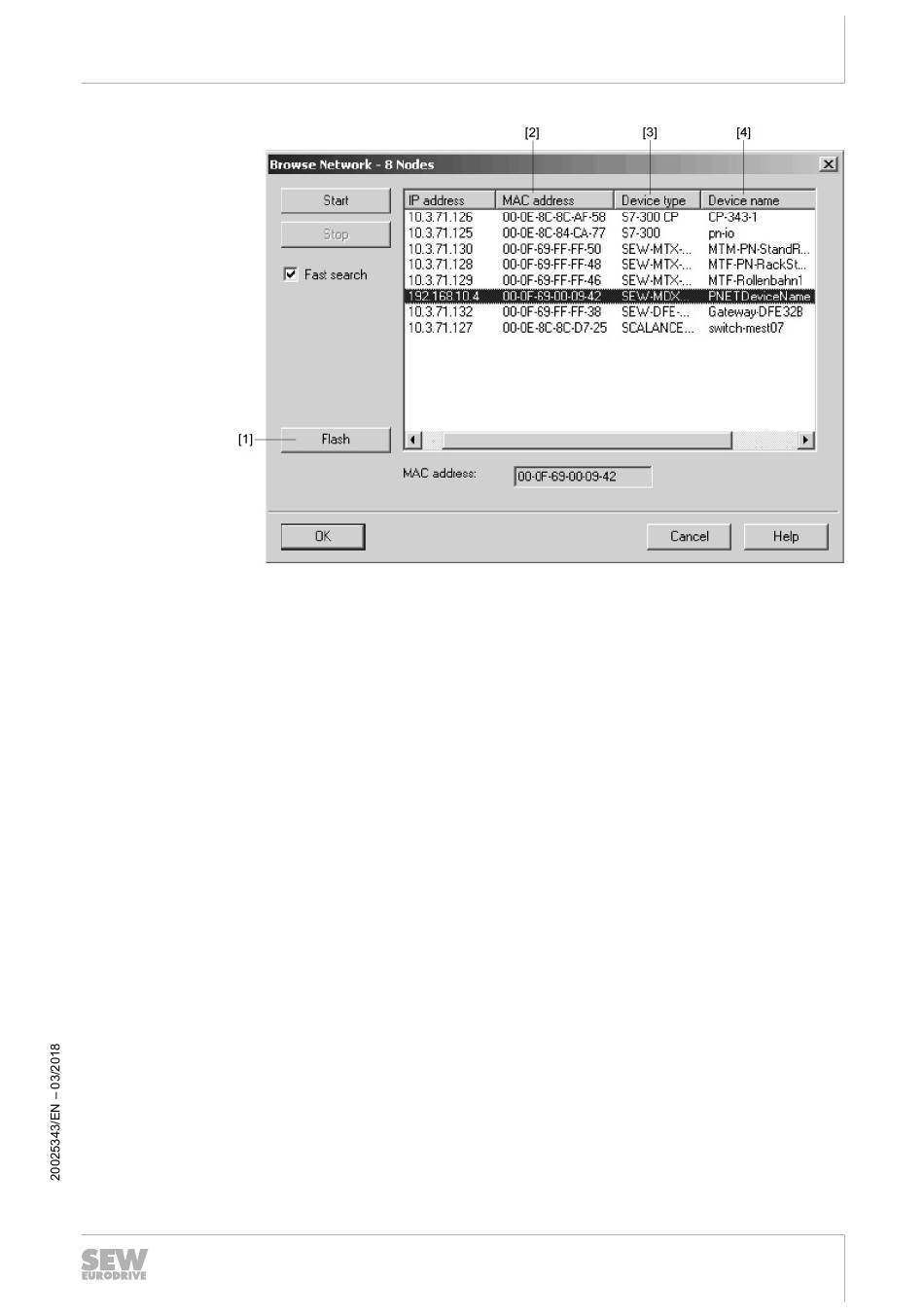

• Choose the required node. The SEW node appears as "SEW-MDX61B+DFS21B"
under Device type [3]. The device name [4] is set to "PNETDeviceName" ex works
and must be adapted to your system conditions by you. Several MDX61B devices
can be distinguished between by the MAC addresses [2] displayed. A label with
the MAC address [2] is attached to the DFS21B option. Use the [Flash] button [1]
to enable the Status LED to flash green for the selected DFS21B in order to check
your selection.
