Assembling and installing the DFS21B/UOH11B gateway housing

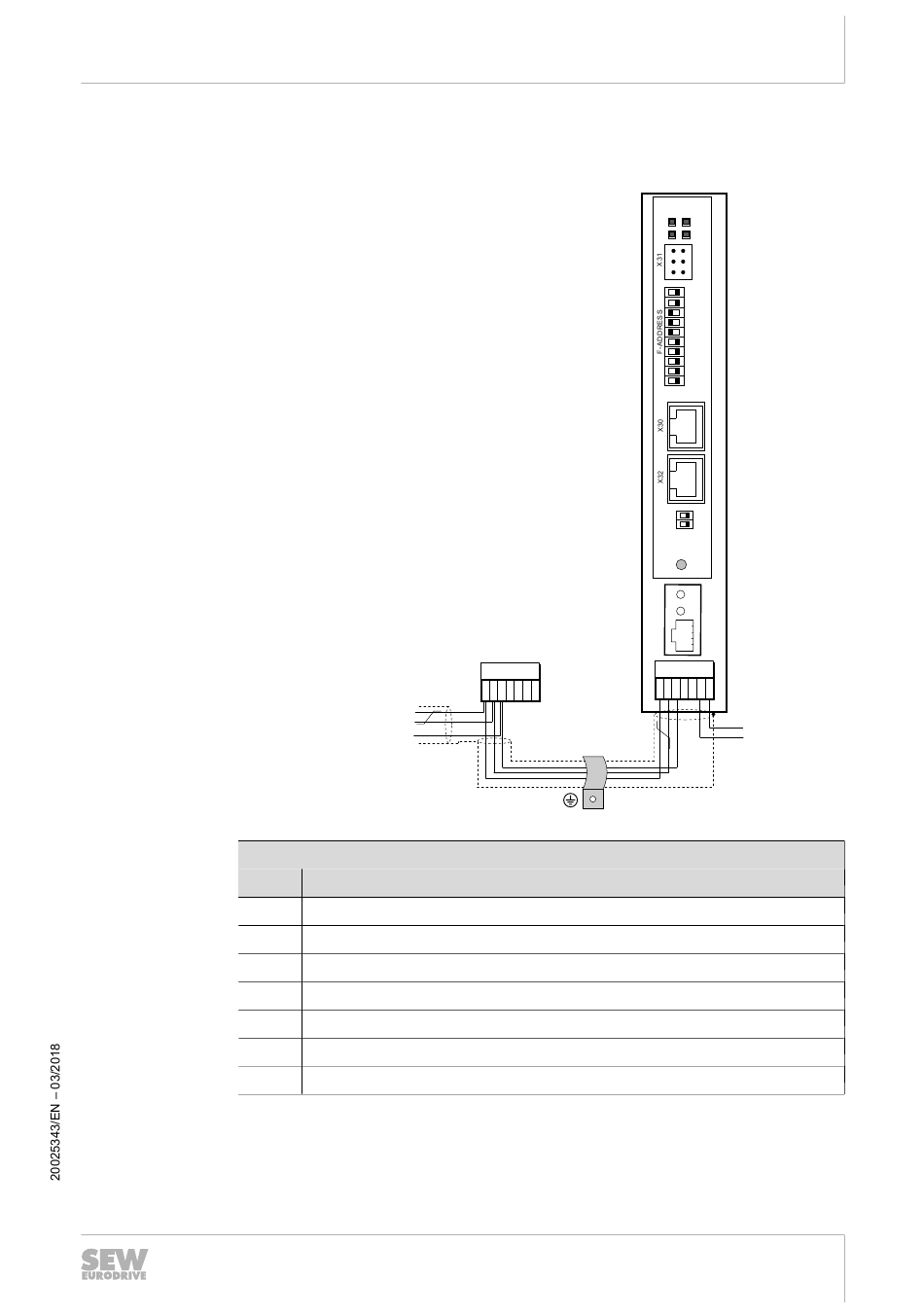

The following figure shows the connection of the DFS21B option via the UOH11B:X26
gateway housing.
SC11 SBus +, CAN high
SC12 SBus -, CAN low
GND, CAN GND
UOH11B gateway housing
X26 Terminal assignment
X26:1 SC11 system bus +, CAN high
X26:2 SC12 system bus –, CAN low
X26:3 GND, CAN GND
X26:4 Reserved
X26:5 Reserved
X26:6 GND, CAN GND
X26:7 DC 24 V
The gateway housing is supplied with DC 24 V via X26. Connect the bus terminating
resistor at the end of the system bus connection.
Manual – DFS21B PROFINET IO Fieldbus Interface with PROFIsafe
Assembly and installation notes
