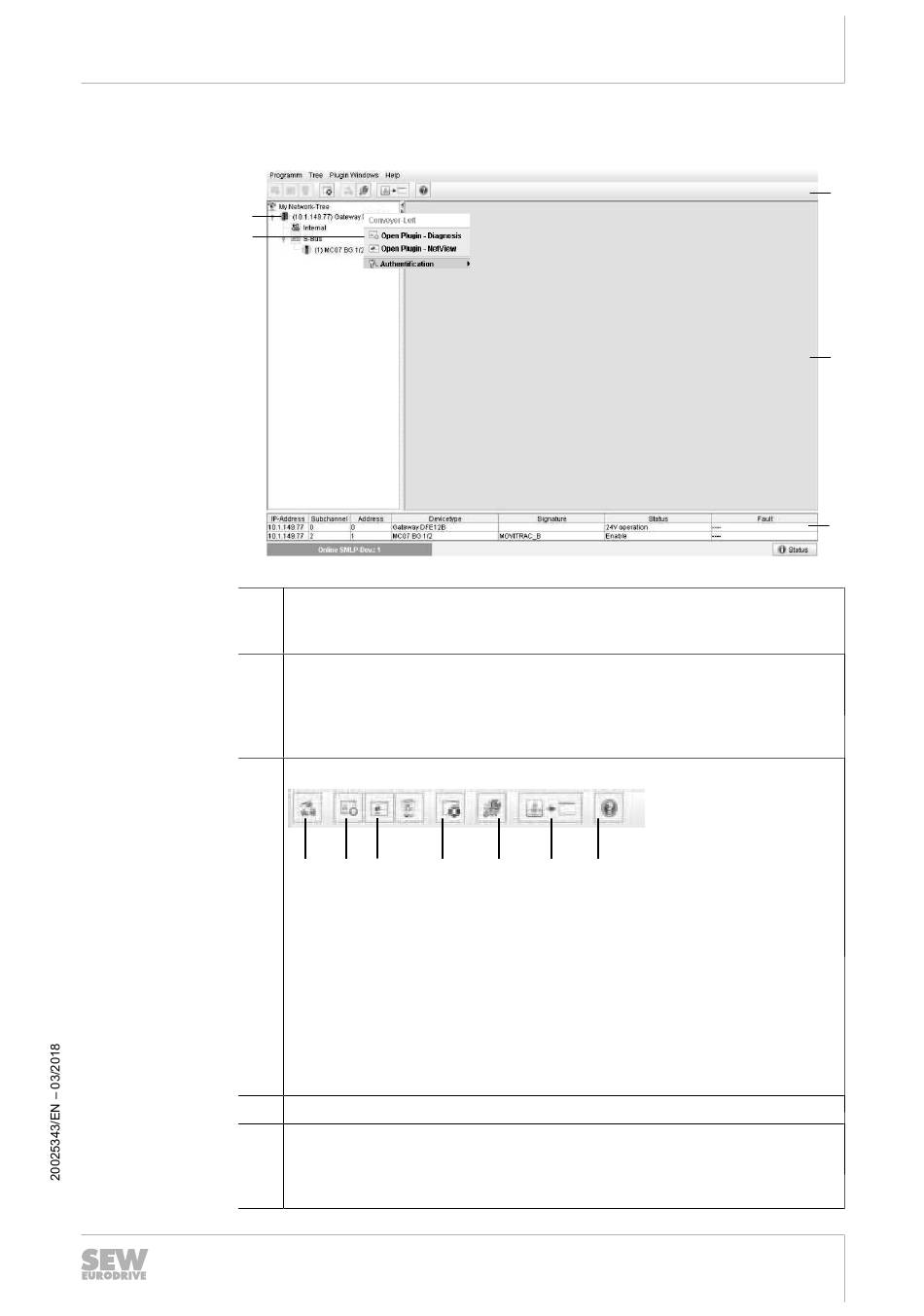

Structure of the diagnostics applet

[1]
[2]
[1]
[2]
[3]
[4]
[5]
The tree displays the MOVIDRIVE
Network Tree". Individual subsystems of the corresponding device versions
are displayed below that; they may contain additional devices.
You can navigate to the plug-ins of an individual device by right-clicking a
device in the tree. A pop-up window appears guiding you to the corresponding
device plug-ins. You can also adjust the access settings for a MOVIDRIVE
(see chapter "Access protection"). To detect new devices and have them dis-
played in the tree, right-click on the network node and select "Scan".
The following toolbar is available:
[c]
[a] [b] [d]
[a] Rescan device tree and display it in the tree
[b] Open plug-in for selected device in device tree
[c] Overview plug-in for selected device in device tree, see section "Plug-in
window (Overview)"
[d] Close the selected plug-in
[e] Settings for Ethernet communication and scanner
[f] Change to window mode or applet mode
[g] Display information dialog box
See chapter "Plug-in window".
The status table and the device status are visible by default. All devices and
subdevices found during a scan are listed. Since the status table sends cyclic
parameter requests to the device, you can also close the table using the
[Status] button (bottom right).
