4.7 Hyper Terminal Mode

Hyper terminal mode is a local control mode. Hyper terminal is a communication tool in
Windows system, so make sure your PC operation system is Windows. In hyper terminal mode,
operation parameters can be set, and errors can be displayed and cleared.
4.7.1 Wiring in Hyper Terminal Mode
Rear Panel
of the Laser

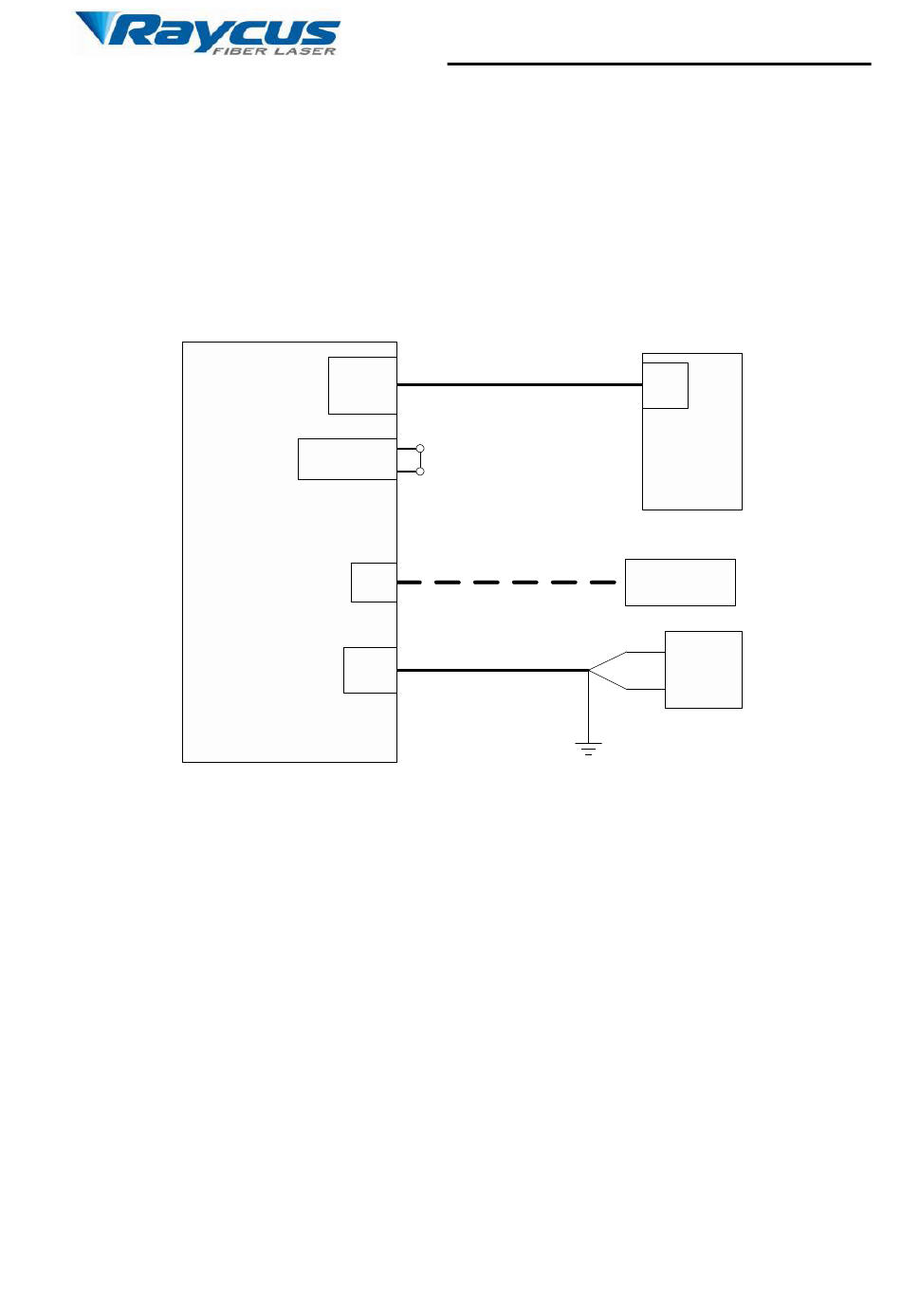

Please connect the RS-232 cable and the Power cord according to Figure 21. Make sure to use
the cables and power cord we provided, and the interlock is shorted. The MOD cable is
represented by dashed line, because you may not always need it in this control mode. The details
will be stated in 4.7.3 Operation in Hyper Terminal Mode. The other interfaces or ports on the
rear panel are left disconnected in hyper terminal mode.
4.7.2 Hyper Terminal Setup
Follow the instructions to setup hyper terminal:
(1) In Windows system, click as follows: START→Accessories→Communication→ Hyper
Terminal;
RS-232
INTERLOCK
MOD
AC
INPUT
Figure 21: Wiring Diagram in Hyper Terminal Mode
Wuhan Raycus Fiber Laser Technologies Co., Ltd.
RS-232 Cable
Shorted
MOD Cable
Power Cord
PE
18
User Guide 100W~750W Ver: 1.0
COM
PC
Modulation
Signal
L
AC Power
Supply
N
